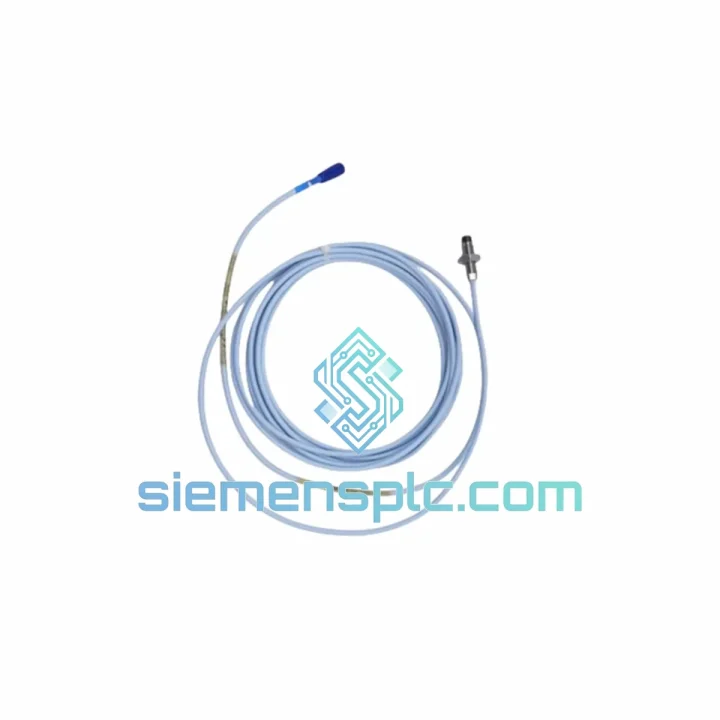

Bently Nevada 330103-00-07-10-02-05 Proximity Probe

330103-00-07-10-02-05 — Every Hour of Downtime Costs You. We Ship Today.

Your turbine is down. The control room is on the phone. Maintenance is standing by. The only thing between you and full production restart is a replacement Bently Nevada 330103-00-07-10-02-05 8mm eddy-current proximity probe — and right now, we have it on the shelf in Xiamen, ready to move via DHL or FedEx within hours of order confirmation. No lead time games. No “check back next week.” This is the part, this is the stock, this is the shipment.

The 330103-00-07-10-02-05 is a core component of the Bently Nevada 3300 XL 8mm Proximity Transducer System — the industry benchmark for non-contact shaft vibration and axial position measurement in rotating machinery. It is deployed in steam turbines, gas compressors, centrifugal pumps, and gearboxes across refineries, power plants, and petrochemical facilities worldwide. When this probe fails, the entire machinery protection loop goes blind. You cannot afford to wait three weeks for a factory order.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of 3300 XL probe failures in the field, the failure patterns are predictable. Here is what you need to know before you pull the old probe and install the new one.

Most Common Failure Modes for 330103-00-07-10-02-05:

• Cable jacket cracking near the probe body: The integral 1.0 m cable is the most vulnerable point. High-cycle vibration at the cable-to-probe junction causes micro-fractures in the jacket insulation, leading to intermittent bias voltage loss. If your monitor is throwing a Not OK (NOK) alarm that clears when you flex the cable, the cable is the culprit — not the probe tip itself. Replace the full assembly; do not attempt field repair of the integral cable.
• Probe tip contamination: Oil mist, carbon deposits, and metallic debris on the probe tip face alter the eddy-current field and shift the output voltage. Before condemning the probe, clean the tip face with isopropyl alcohol and re-gap. If the bias voltage returns to the −10 VDC nominal range, the probe is still serviceable.
• Gap setting drift after bearing replacement: If the probe was disturbed during a bearing changeout, re-gap is mandatory. The 330103-00-07-10-02-05 operates on a linear range of 0–2.54 mm. Set the initial gap to 1.27 mm (50 mil) for center-of-range operation. Use a non-ferrous feeler gauge or a calibrated gap tool — never a steel feeler gauge, which will corrupt the reading.
• Monitor channel NOK after probe swap: If the replacement probe triggers a persistent NOK on the 3300 or 3500 monitor, verify the extension cable length matches the system calibration. The 330103-00-07-10-02-05 uses a 1.0 m integral cable; the total system cable length (integral + extension) must match the driver/oscillator-demodulator calibration curve. Mismatched cable lengths shift the sensitivity and bias voltage outside the monitor’s acceptance window.
• ATEX/IECEx zone compliance: Confirm the suffix code before installation in classified areas. The -05 suffix in this part number denotes a specific connector and cable configuration. Installing a non-zone-rated variant in a hazardous area is a compliance violation. Check your area classification documentation before ordering.

Replacement Procedure (Field Summary):

1. Isolate the monitor channel and confirm the machinery is at rest or in a safe state per your site LOTO procedure.
2. Disconnect the extension cable from the probe connector. Do not pull by the cable — grip the connector body.
3. Loosen the probe lock nut and back the probe out of the bracket. Count the turns for reference during reinstallation.
4. Install the new 330103-00-07-10-02-05. Thread in by hand until the tip is approximately 1.5 mm from the shaft surface.
5. Connect a calibrated voltmeter to the monitor channel output. Adjust the probe gap until the bias voltage reads −10.0 VDC ± 0.5 VDC.
6. Tighten the lock nut to the torque specified in the 3300 XL installation manual (typically 2.8 N·m). Do not over-torque — the probe body threads are fine-pitch and will strip.
7. Reconnect the extension cable. Restore monitor power and verify the channel returns to OK status before releasing the machine for restart.

Reliability in Harsh Conditions

The 3300 XL proximity transducer system was not designed for a laboratory. It was designed for the inside of a turbine enclosure where temperatures swing from ambient cold-start to 177 °C continuous, where lube oil mist is omnipresent, and where the probe bracket vibrates at frequencies that would destroy a conventional sensor within weeks.

The 330103-00-07-10-02-05 achieves its environmental resilience through several design decisions that matter in the field. The probe body is machined from stainless steel with a hermetically sealed tip assembly — there is no adhesive bond between the coil and the tip face that can delaminate under thermal cycling. The integral cable uses a fluoropolymer jacket rated for continuous exposure to petroleum-based lubricants and cleaning solvents. The MIL-C-5015 style connector provides a positive locking engagement that resists vibration-induced loosening without requiring thread-locking compounds that complicate future maintenance.

In high-humidity environments — coastal power plants, offshore platforms, tropical refineries — the sealed construction prevents moisture ingress that would otherwise detune the eddy-current coil and shift the calibration. Units stored in our Xiamen warehouse are maintained in climate-controlled conditions with desiccant packaging to preserve the factory calibration state through transit.

Vibration endurance: the 3300 XL probe assembly is qualified to withstand continuous sinusoidal vibration across the frequency ranges encountered in rotating machinery applications. The probe bracket mounting is the more common failure point in high-vibration installations — if you are seeing repeated probe failures at a specific machine, inspect the bracket for fatigue cracking before installing the replacement.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the most logistics-connected export cities in Asia, with direct DHL, FedEx, and UPS gateway access. Here is how your order moves from our shelf to your site:

• Order Confirmation → Same-Day Pick & Pack: Orders confirmed before 14:00 CST are picked, inspected, and packed the same business day. The probe is wrapped in anti-static foam, sealed in a moisture barrier bag, and placed in a rigid outer carton rated for air freight handling.
• Export Documentation: Commercial invoice, packing list, certificate of origin, and HS code declaration (9031.80 / 8543.70) are prepared in parallel with packing. No customs delays from missing paperwork.
• DHL Express / FedEx International Priority: Transit times from Xiamen: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–5 days, Americas 4–6 days. These are door-to-door times under normal customs clearance conditions.
• Tracking: A waybill number is sent to you within 2 hours of handover to the carrier. You can track the shipment in real time. We monitor all active shipments and proactively contact you if a delay is detected.
• Import Clearance Support: We provide HS code guidance and can prepare additional documentation (MSDS, material certificates, end-user declarations) required by customs authorities in specific countries. Contact us before shipment if your site has specific import requirements.
• Bulk Orders: For quantities above 5 units or combined orders with other 3300 XL system components, consolidated air freight or sea freight options are available with competitive rates. Request a freight quote alongside your parts quote.
