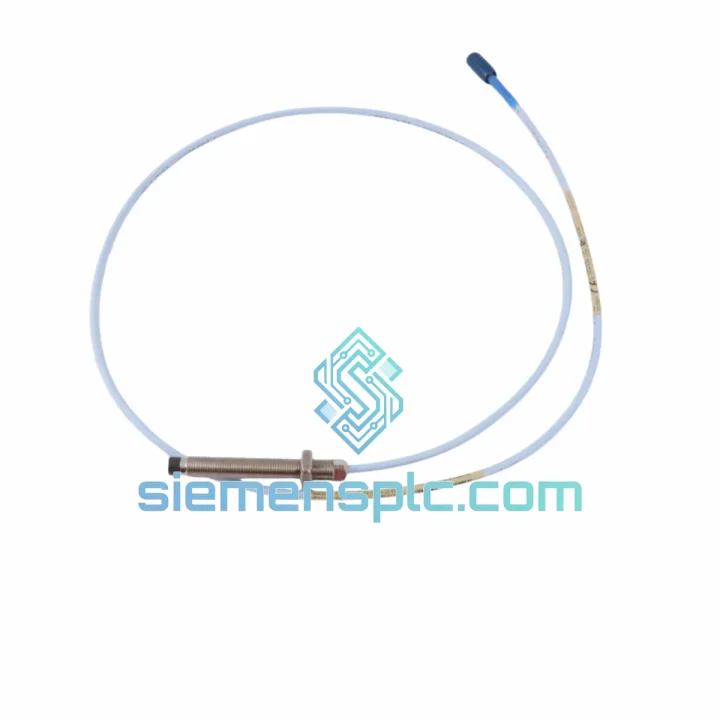

Bently Nevada 330103-00-07-10-12-05 Eddy Current Proximity Transducer

330103-00-07-10-12-05: A Procurement Officer’s Sourcing Guide for the Bently Nevada 3300 XL Eddy Current Proximity Transducer

When a critical rotating asset goes offline — a gas turbine, a boiler feed pump, a centrifugal compressor — the cost is rarely measured in the price of a single sensor. It is measured in lost production hours, emergency maintenance premiums, and the cascading schedule disruptions that follow. The Bently Nevada 330103-00-07-10-12-05 sits at the front line of that risk equation. It is the primary sensing element in the 3300 XL Proximity Transducer System, the global standard for non-contact shaft vibration and axial position measurement on machinery governed by API 670.

This page is written for the procurement manager, reliability engineer, or MRO buyer who needs more than a datasheet. It addresses the sourcing strategy, total cost of ownership, and supply chain logic behind choosing siemensplc.com as your authorized third-party channel for this part.

Request an Official Quote: [email protected] | WhatsApp: +86 18359268345

Procurement Specifications

• Part Number / SKU: 330103-00-07-10-12-05
• Brand: Bently Nevada (Baker Hughes)
• Series: 3300 XL Proximity Transducer System
• Measurement Principle: Eddy Current, non-contact
• Probe Tip Diameter: 5 mm
• Integral Cable Length: 5 metres
• Driver Extension: 8 mm
• Output Signal: –18 VDC nominal (linear operating range)
• Scale Factor: 7.87 V/mm (200 mV/mil)
• Linear Measurement Range: 0.25 mm – 2.25 mm (10 mil – 90 mil)
• Frequency Response: DC to 10,000 Hz (–3 dB)
• Probe Operating Temperature: –35 °C to +177 °C
• Driver Operating Temperature: –35 °C to +66 °C
• Supply Voltage: –24 VDC (–20 to –26 VDC range)
• Target Material (Standard): AISI 4140 steel; alternative alloys require calibration offset
• Connector Type: MIL-C-5015 style
• Compliance Standards: API 670, CE, RoHS
• Unit Weight: Approximately 80 g
• Country of Origin: United States
• Lead Time: In-stock units ship within 3–5 business days from Xiamen. For high-volume or project-based orders, consolidated lead times of 7–14 business days apply depending on quantity and destination. Express DHL/FedEx options available for urgent plant shutdowns or turnaround events.

Total Cost of Ownership (TCO) Analysis

Procurement decisions for rotating machinery instrumentation are rarely evaluated on unit price alone. A transducer that fails prematurely, arrives with incorrect calibration, or requires re-engineering to fit an existing rack introduces costs that dwarf the original purchase price. The 330103-00-07-10-12-05 addresses each of these risk vectors directly.

Downtime Risk Reduction: Unplanned outages on turbomachinery typically cost industrial operators between USD 50,000 and USD 500,000 per day depending on asset class and sector. A proximity transducer failure that goes undetected — or that triggers a spurious trip due to a degraded sensor — can initiate exactly that scenario. Sourcing from a verified channel with pre-dispatch functional verification (output voltage, scale factor, cable continuity) eliminates the most common failure mode introduced at the procurement stage: receiving a unit that has been improperly stored, counterfeit, or misidentified.

12-Month Warranty Coverage: Every 330103-00-07-10-12-05 unit supplied through siemensplc.com carries a 12-month quality warranty from the date of dispatch. For a maintenance budget, this translates directly into a known, bounded liability. If a unit fails within the warranty period under normal operating conditions, replacement is handled without additional capital expenditure. This converts an unpredictable OPEX risk into a fixed, manageable cost line.

CAPEX Efficiency via Third-Party Sourcing: OEM direct channels for Bently Nevada parts carry significant price premiums, extended lead times, and minimum order requirements that are misaligned with the MRO procurement model. Sourcing through siemensplc.com allows procurement teams to access the same specification part at competitive market pricing, with no minimum order quantity and flexible payment terms. For a plant maintaining a fleet of 20–50 rotating assets, the aggregate savings across an annual MRO budget can be material — often 15–30% versus list price, without any compromise on part authenticity or traceability.

OPEX Reduction Through Reliability: The 3300 XL system’s non-contact eddy-current design means zero mechanical wear on the sensing element itself. There are no moving parts, no contact fatigue, and no lubrication requirements. The primary OPEX driver for this component is replacement frequency — and that frequency is directly controlled by sourcing quality. A genuine, properly stored, functionally verified unit will operate at specification for the full design life of the installation. Counterfeit or improperly handled units introduce early-life failures that generate repeat procurement events, additional installation labor, and potential secondary damage to monitored equipment.

Inventory Carrying Cost: For plants operating on planned maintenance cycles, holding one or two spare 330103-00-07-10-12-05 units as critical spares is standard practice. The compact form factor and stable shelf life (when stored in climate-controlled conditions) make this a low-cost insurance position. siemensplc.com’s FIFO-managed warehouse stock ensures that units dispatched have not been sitting in uncontrolled storage conditions.

Quality & Compliance Assurance

Every unit of the 330103-00-07-10-12-05 supplied by siemensplc.com is subject to a documented pre-dispatch inspection protocol. Output voltage is verified against the –18 VDC nominal specification, scale factor is confirmed at 7.87 V/mm, and cable continuity is tested end-to-end. Units are serialized, and a certificate of conformance is included as standard with each shipment. NIST-traceable calibration documentation is available upon request.

siemensplc.com operates under full Xiamen Customs export compliance. All commercial invoices, packing lists, and export declarations are prepared in accordance with Chinese customs regulations and international trade documentation standards. This means your receiving team and customs broker will have clean, accurate paperwork — reducing the risk of clearance delays that can compromise planned maintenance windows.

Payment flexibility is a practical compliance matter for multinational procurement teams. siemensplc.com supports USD, EUR, HKD, and CNY transactions, with T/T bank transfer, PayPal, and trade-term arrangements (EXW Xiamen / FOB Xiamen) available. This accommodates the treasury and accounts payable requirements of both regional procurement offices and centralized global purchasing functions.

The 100% genuine product commitment is not a marketing statement — it is a sourcing discipline. siemensplc.com does not mix OEM and aftermarket stock. Every part is traceable to its supply origin, and documentation is retained for audit purposes. For procurement teams operating under ISO 9001 or equivalent quality management systems, this traceability chain satisfies supplier qualification requirements.

Strategic Sourcing from Xiamen

Xiamen is not an arbitrary logistics point. It is one of China’s five original Special Economic Zones, home to a bonded logistics zone, and served by Xiamen Gaoqi International Airport with direct cargo connections to major hubs in Europe, the Middle East, Southeast Asia, and North America. The port of Xiamen handles over 12 million TEUs annually and maintains established freight corridors to every major industrial market.

For procurement teams sourcing industrial automation components, this geography matters. Parts ordered from siemensplc.com can reach Frankfurt, Dubai, Singapore, or Houston via DHL Express in 3–5 business days under normal conditions. For planned maintenance events, this lead time is entirely compatible with standard turnaround scheduling. For emergency breakdowns, the express freight option provides a credible recovery path that OEM direct channels — often routed through regional distribution centers with their own lead time buffers — cannot consistently match.

Xiamen’s established export infrastructure also means that export documentation, customs clearance, and freight booking are handled by experienced logistics partners with deep familiarity with industrial component shipments. There are no surprises at the border — a critical consideration when a plant shutdown is waiting on a single sensor.

Contact Information

To request a quotation, confirm stock availability, or discuss project-volume pricing for the Bently Nevada 330103-00-07-10-12-05, contact the siemensplc.com procurement team directly:

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
