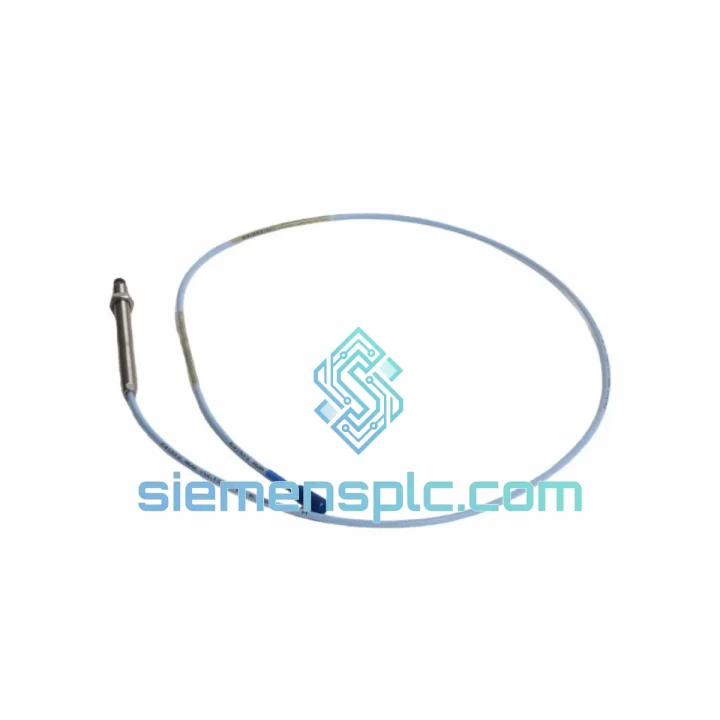

Bently Nevada 330103-00-14-50-02-CN Proximity Transducer System – 3300 XL Series

Bently Nevada 330103-00-14-50-02-CN: Non-Contact Shaft Measurement in Critical Rotating Machinery

The 330103-00-14-50-02-CN is a factory-matched proximity transducer system from Bently Nevada’s 3300 XL 8mm Series, engineered for continuous, non-contact measurement of radial vibration, axial position, and differential expansion on rotating shafts. The system comprises three interdependent components — an 8mm eddy-current probe with 14 ft (4.27 m) integral armored cable, a 50 ft (15.24 m) extension cable, and a 3300 XL NSv Proximitor® sensor — all factory-calibrated as a matched set against a certified AISI 4140 steel target. The CN suffix designates the China-market regulatory variant, carrying local explosion-protection certifications equivalent to ATEX Zone 1 and IECEx requirements, making it the correct procurement choice for PetroChina, CNOOC, and Sinopec-regulated facilities.

Within a machinery protection loop, this transducer system occupies the signal-origin layer: it converts mechanical displacement into a proportional DC voltage that feeds directly into Bently Nevada 3300 or 3500 Series monitoring racks, where alert and danger setpoints are evaluated in hardware with deterministic scan cycles. The accuracy of every downstream protection decision — trip relay actuation, DCS alarm propagation, historian trending — depends on the gap-voltage linearity and frequency fidelity delivered by this matched system.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 330103-00-14-50-02-CN is based on eddy-current induction: the probe coil, driven by a high-frequency oscillator inside the NSv Proximitor®, generates an alternating electromagnetic field. When a conductive target enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and reducing its resonant amplitude. The Proximitor demodulates this amplitude change into a linear DC voltage proportional to the probe-to-target gap — a relationship that holds within ±0.5% of full-scale across the 0–80 mil linear range when the system is used with its factory-matched calibration set.

EMC Architecture: The coaxial cable geometry — probe integral cable plus extension cable — maintains a controlled characteristic impedance throughout the signal path, suppressing common-mode noise injection from adjacent power cables and VFD switching transients. The Proximitor housing incorporates a Faraday-shielded oscillator compartment, and the output stage uses a low-impedance driver (typically <100 Ω source impedance) that is inherently resistant to capacitive coupling from parallel cable runs. In installations where cable trays carry both instrumentation and 480 VAC motor leads, this architecture sustains signal integrity without requiring additional shielded conduit separation beyond API 670 minimum spacing guidelines.

Matched-Set Calibration Logic: Bently Nevada calibrates each probe, extension cable, and Proximitor as a system against a traceable reference target. The calibration data is encoded in the Proximitor’s internal trim network. Substituting any single component — even with a nominally identical part number from a different production batch — introduces a gap-voltage offset that can exceed ±5 mV/mil at the extremes of the linear range. At a typical alarm setpoint of 5 mil peak-to-peak, a 5 mV/mil error represents a 25 mV absolute error, which at 200 mV/mil sensitivity corresponds to a 0.125 mil position error — acceptable in most applications, but potentially significant in tight-clearance axial position loops where trip margins are set at 10–15 mil from the mechanical limit.

CN Variant Explosion-Protection Design: The CN suffix indicates that the probe and Proximitor have been evaluated under China’s GB 3836 series standards (equivalent to IEC 60079) for use in Zone 1 hazardous areas. The Proximitor’s intrinsic safety barrier parameters (Ui, Ii, Pi) are documented in the CN-specific entity parameters sheet, which must be matched to the associated Zener barrier or galvanic isolator installed in the safe area. This is a regulatory distinction, not a hardware modification — the electrical performance is identical to the international variant.

System Integration Benefits

• Deterministic protection response: When connected to a Bently Nevada 3500 Series rack, the transducer’s DC output is sampled at the rack’s hardware scan rate (typically 5 ms per channel), enabling trip relay actuation within one scan cycle of a threshold crossing — a response time that software-based protection systems cannot match.
• Direct rack compatibility without signal conditioning: The −24 V supply and 200 mV/mil sensitivity are native to all 3300 and 3500 Series I/O modules, eliminating the need for intermediate signal conditioners that introduce additional failure modes and calibration intervals.
• Diagnostic transparency via gap voltage monitoring: The Proximitor’s DC output at rest (static gap) provides a continuous, measurable indicator of probe installation integrity. A gap voltage outside the −10 V to −18 V window at nominal installation gap immediately flags probe fouling, target eccentricity, or cable damage — without requiring a separate diagnostic instrument.
• Frequency fidelity to 10 kHz: The flat frequency response from DC to 10,000 Hz captures not only 1× and 2× running-speed vibration components but also blade-pass frequencies on compressors with up to 600 blades at 1,000 RPM, supporting advanced spectral analysis in the connected historian or condition monitoring platform.
• Thermal stability across process extremes: The probe’s rated operating range of −35°C to +177°C covers steam turbine bearing housings (typically 80–120°C ambient) and cold-climate outdoor installations without requiring thermal compensation adjustments to the monitoring rack setpoints.
• Reduced commissioning time via factory calibration: Because the system arrives pre-calibrated, field commissioning is limited to gap-setting verification (target gap voltage check) and rack channel assignment — typically 15–30 minutes per measurement point versus 2–4 hours for field-calibrated alternatives.
• Long-term OEM data continuity: Baker Hughes maintains calibration records and firmware compatibility matrices for the 3300 XL Series, ensuring that replacement units procured years after initial installation remain interchangeable without rack reconfiguration.
• API 670 compliance for insurance and regulatory audits: Facilities subject to API 670 machinery protection audits can reference the 330103-00-14-50-02-CN’s certification documentation directly, reducing the engineering effort required to demonstrate compliance to third-party auditors or insurance underwriters.

Quality Assurance & Global Logistics

Every 330103-00-14-50-02-CN unit dispatched from our Xiamen, China facility is sourced through verified supply channels — authorized distributors, OEM-certified surplus, and factory-refurbished stock with full Baker Hughes traceability documentation. Prior to shipment, each unit undergoes a structured pre-dispatch inspection protocol: visual examination of probe tip and coaxial connector for mechanical damage, continuity verification of the integral cable and extension cable, Proximitor output voltage check at a reference gap using a calibrated test fixture, and documentation cross-check of serial number against the factory calibration record.

Units are packaged in anti-static, moisture-barrier bags with closed-cell foam inserts dimensioned to the probe geometry, placed in double-wall corrugated cartons rated for international air freight handling. For hazardous-area-certified units, the CN entity parameters sheet and explosion-protection certificate are included in the shipment documentation package.

Logistics from Xiamen covers all major industrial destinations: DHL Express and FedEx International Priority for urgent requirements (typical transit 3–5 business days to Southeast Asia, Middle East, and Europe); sea freight consolidation for project quantities. Export documentation — commercial invoice, packing list, certificate of origin, and ECCN classification — is prepared in-house to minimize customs clearance delays. In-stock units are dispatched within 24–48 hours of order confirmation.

A 12-month warranty covers manufacturing defects and calibration integrity. Warranty claims are processed with replacement dispatch within 5 business days upon receipt of the defective unit and inspection report.
