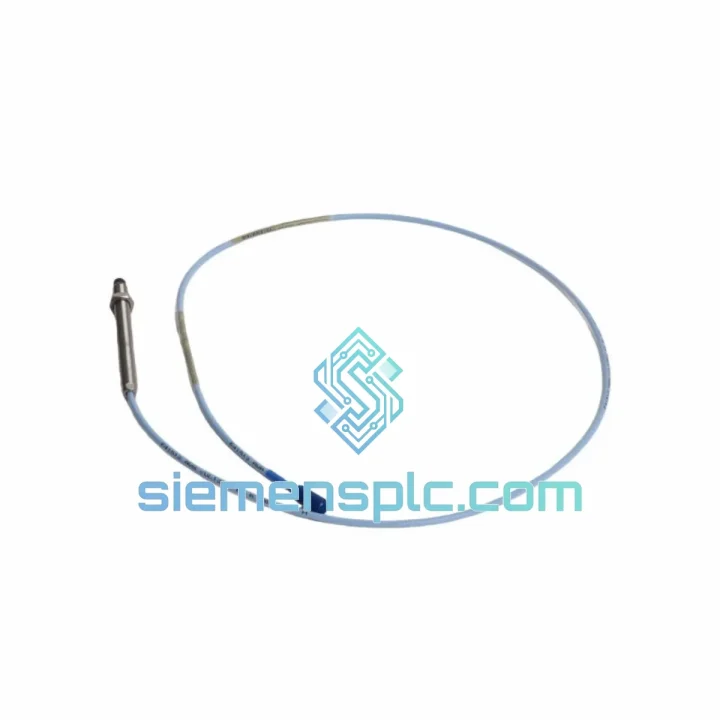

Bently Nevada 330103-00-15-05-02-00 Proximity Transducer System – 3300 XL Series

Bently Nevada 330103-00-15-05-02-00: Eddy-Current Proximity Transducer System for Rotating Machinery Protection

The Bently Nevada 330103-00-15-05-02-00 is a complete three-component proximity transducer system within the 3300 XL product family, engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion on high-speed rotating machinery. The assembly consists of a 5 mm diameter probe, a 5-metre extension cable, and a 2-metre armored driver cable — a configuration optimized for installations where the driver must be mounted at a distance from the probe tip, such as in turbine pedestals, compressor bearing housings, and motor end-bell brackets where direct driver mounting is mechanically impractical.

Unlike general-purpose inductive sensors, the 330103-00-15-05-02-00 operates on a calibrated eddy-current principle tuned specifically to the electrical conductivity and magnetic permeability of steel and iron-alloy shaft materials. The driver electronics generate a high-frequency oscillating magnetic field at the probe tip; when a conductive target enters the field, eddy currents are induced on the shaft surface, loading the oscillator circuit and producing a DC output voltage that is linearly proportional to the gap distance. The system is factory-calibrated to deliver a nominal sensitivity of 7.87 V/mm (200 mV/mil) across a linear range of 0.25 mm to 2.25 mm, with a system output of approximately -18 VDC at the mid-gap reference point of 1.0 mm.

This transducer system is fully compliant with API 670 (5th Edition) machinery protection requirements and is the preferred sensor for integration with Bently Nevada 3300 XL and 3500 Series monitoring racks. It is deployed across oil and gas, power generation, petrochemical refining, and heavy industrial sectors where unplanned rotating machinery downtime carries direct financial and safety consequences.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330103-00-15-05-02-00 system architecture separates the sensing element (probe) from the signal conditioning electronics (driver) via a precision-matched extension cable. This three-component topology is not arbitrary — it is a deliberate EMC and thermal management strategy. The probe tip operates in the immediate vicinity of the bearing housing, where temperatures can exceed 150°C and electromagnetic interference from motor windings, variable-frequency drives, and grounding currents is substantial. By relocating the active oscillator circuit to the driver, which is mounted in a cooler, more electrically stable environment, Bently Nevada preserves the integrity of the high-frequency carrier signal (typically 1.0 MHz oscillation frequency) before it is demodulated into a DC output.

The extension cable is not a standard coaxial cable. It is a matched-impedance, low-loss transmission line with a defined capacitance per unit length that is factored into the driver’s calibration algorithm. Substituting a non-matched cable — even one of identical physical length — will shift the system’s sensitivity curve and introduce linearity errors that are not detectable without a calibration bench. This is why the 330103-00-15-05-02-00 is sold as a matched system: the probe, extension cable, and driver are calibrated together at the factory and must be replaced as a set to maintain API 670 accuracy requirements.

The probe tip coil is wound on a ferrite core and encapsulated in a thermally stable epoxy compound. The 316 stainless steel housing provides mechanical protection while remaining non-magnetic, which is essential — a magnetic probe body would distort the eddy-current field and corrupt the gap measurement. The armored driver cable provides both mechanical protection and a continuous shield ground path, suppressing common-mode noise induced by long cable runs through cable trays shared with power conductors.

From an EMC standpoint, the driver output stage presents a low-impedance voltage source (typically <100 Ω output impedance), which makes the -18 VDC signal robust against capacitive coupling noise over the cable run to the monitoring rack. The 3300 XL monitors present a high-impedance input (>10 kΩ), ensuring that the driver is not loaded in a way that would shift the operating point of the oscillator circuit.

System Integration Benefits

• Direct 3300 XL Monitor Compatibility: The 330103-00-15-05-02-00 connects directly to 3300/16 Dual Vibration, 3300/20 Thrust Position, and 3300/25 Differential Expansion monitors without signal conditioning adapters, reducing wiring complexity and potential failure points.
• 3500 Series Cross-Compatibility: Via 3500/42M and 3500/45 I/O modules, the same transducer system integrates into the 3500 Machinery Protection System rack, enabling a phased upgrade path from 3300 XL to 3500 without replacing field-installed sensors.
• Deterministic DC Output: The -18 VDC nominal output is a static DC signal with no protocol overhead. Monitoring racks sample this signal at rates up to 20 kHz, providing deterministic real-time response with zero latency introduced by digital encoding or fieldbus arbitration.
• Alarm Transparency: The linear voltage-to-gap relationship means that alert and danger setpoints can be set in engineering units (µm or mil) directly in the monitor, with no lookup tables or linearization firmware required at the rack level.
• Dual-Probe Differential Measurement: Two 330103-00-15-05-02-00 units mounted at 90° (X-Y configuration) provide full orbital analysis of shaft centerline motion, enabling detection of rotor bow, oil whirl, and rub conditions that single-plane measurements cannot resolve.
• System 1 Software Integration: The transducer’s output feeds directly into Bently Nevada System 1 Evolution software for long-term trend analysis, alarm event logging, and predictive maintenance scheduling — without requiring signal conversion or custom drivers.
• Intrinsic Safety Barrier Compatibility: ATEX and FM certifications allow the probe to be installed in Zone 0/1 hazardous areas when used with approved Zener barriers or galvanic isolators, covering the full range of oil and gas installation environments.
• Reduced Calibration Interval: The factory-matched system maintains calibration stability over a 24-month interval under normal operating conditions, reducing maintenance labor compared to systems requiring annual field calibration.
• Backward Compatibility with 330103 Legacy Installations: The 3300 XL series maintains electrical and mechanical compatibility with earlier 330103 probe configurations, allowing direct replacement in existing installations without modification to mounting hardware or monitor channel configuration.

Quality Assurance & Global Logistics

Every Bently Nevada 330103-00-15-05-02-00 unit supplied by siemensplc.com is sourced through verified channels with full traceability to the original manufacturer. Bently Nevada (a Baker Hughes company) manufactures this transducer system to ISO 9001-certified quality standards, and each production batch undergoes factory acceptance testing that includes sensitivity verification, linearity check across the full 0.25–2.25 mm range, and high-potential insulation testing of the cable assembly.

Upon receipt at our Xiamen, China facility, units undergo a secondary incoming inspection: visual examination of the probe tip, connector integrity verification, cable continuity and shield resistance measurement, and confirmation of manufacturer labeling and date codes. Units that do not pass inspection are quarantined and returned — they are never offered for sale.

Shipments from Xiamen reach major industrial hubs on the following typical transit schedules: Southeast Asia (2–4 business days via DHL Express), Middle East and Europe (4–7 business days), North America (5–8 business days), and South America/Africa (7–12 business days). All shipments include a commercial invoice, packing list, certificate of conformance, and — upon request — a country-of-origin certificate and MSDS documentation for customs clearance. Export classification and HS code documentation are prepared in compliance with Chinese customs regulations and destination-country import requirements.

Packaging uses anti-static foam inserts within double-wall corrugated cartons, with moisture-desiccant sachets for ocean freight consignments. The probe tip is individually capped to prevent mechanical damage during transit. A 12-month warranty covers manufacturing defects under normal operating conditions, with advance replacement available for critical plant applications subject to prior arrangement.
