Bently Nevada 330103-00-15-10-01-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330103-00-15-10-01-00 — Eddy-Current Proximity Transducer for Rotating Machinery Protection

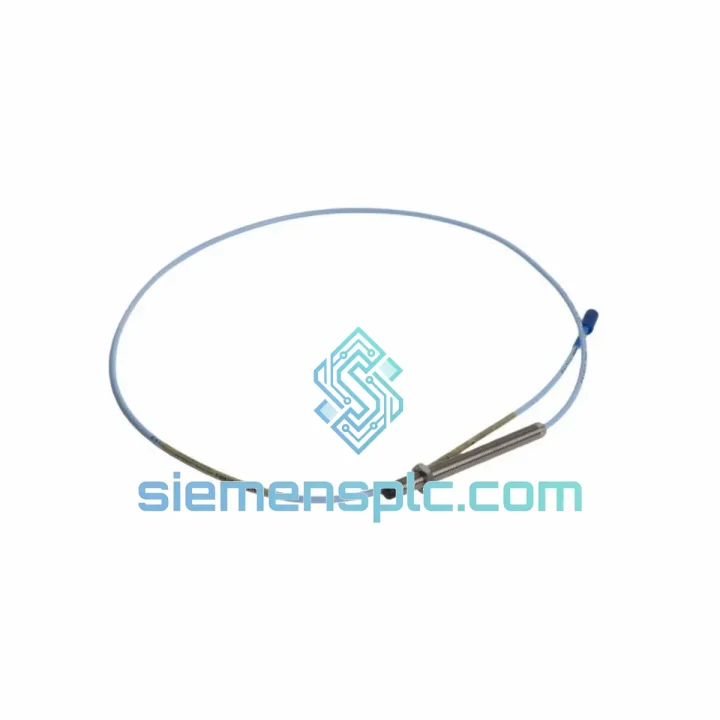

The Bently Nevada 330103-00-15-10-01-00 is a field-proven, eddy-current proximity transducer belonging to the 3300 XL 8mm series, engineered specifically for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in critical rotating machinery. Operating on the principle of electromagnetic induction, the probe generates a high-frequency oscillating magnetic field (nominally 1.0 MHz) that interacts with the conductive target surface. As the gap between probe tip and shaft changes, the eddy-current loading on the oscillator circuit varies proportionally, producing a DC output voltage with a sensitivity of 7.87 V/mm (200 mV/mil) — a figure that remains stable across the full operating temperature envelope of −35 °C to +120 °C at the probe body.

The 330103-00-15-10-01-00 configuration specifies a 15-meter integral cable assembly, standard M10 × 1 probe thread, and a coaxial MIL-C-17-type connector interface. The system is designed to operate exclusively with a matched Bently Nevada proximitor/driver (such as the 3300 XL series driver), which supplies the −24 VDC bias voltage and demodulates the carrier signal into a usable DC output. This matched-system architecture is fundamental to achieving the ±0.1 V/mm linearity tolerance specified in the API 670 standard for machinery protection instrumentation.

In turbomachinery protection architectures — gas turbines, steam turbines, centrifugal compressors, and high-speed pumps — the 330103-00-15-10-01-00 serves as the primary sensing element feeding the Bently Nevada 3500 Series rack-based protection system. The 3500 rack processes the transducer’s analog output through configurable alert and danger setpoints, enabling deterministic trip logic with response times well under 20 ms. This latency characteristic is critical in overspeed or high-vibration events where mechanical damage propagation occurs within milliseconds.

The probe body is constructed from 316L stainless steel with a PEEK (polyether ether ketone) tip encapsulant, providing chemical resistance to lubricating oils, seal gases, and process hydrocarbons encountered in refinery and petrochemical environments. The integral cable is armored with a stainless steel braid and PTFE outer jacket, rated for continuous flexing in installations where the cable must route through tight conduit paths or across thermal expansion joints.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330103-00-15-10-01-00 implements a three-component signal chain: probe, extension cable, and proximitor driver. Each element is impedance-matched at the factory to maintain the 7.87 V/mm transfer function across the full 15-meter cable run. Deviation from matched-system pairing — for example, substituting a non-OEM extension cable with differing characteristic impedance — introduces standing wave reflections at the carrier frequency that corrupt the demodulated DC output, producing apparent vibration offsets that cannot be corrected through monitor calibration alone.

The probe tip geometry is optimized for a target material of AISI 4140 steel (relative permeability μr ≈ 100). When applied to shafts of differing alloy composition — such as 17-4 PH stainless or Inconel 718 — a material correction factor must be applied during system commissioning. Bently Nevada publishes material correction curves for common shaft alloys; failure to apply these corrections introduces a static sensitivity error of up to ±15% in the worst-case alloy combinations.

EMC performance is achieved through the coaxial cable architecture itself: the outer braid serves simultaneously as the signal return conductor and the electrostatic shield, attenuating capacitively coupled interference from adjacent power cables. The PTFE dielectric maintains a stable characteristic impedance of 50 Ω across the operating temperature range, preventing thermally induced impedance drift that would otherwise appear as a slow, temperature-correlated vibration trend in the monitor output.

The M10 × 1 probe thread and locknut assembly provides a deterministic mounting torque specification (typically 5–7 N·m), ensuring that probe tip-to-shaft gap is set and maintained without creep under vibration. The PEEK encapsulant at the probe tip provides electrical isolation between the sensing coil and the metallic probe body, preventing ground loop currents that would add 50/60 Hz noise to the output signal.

System Integration Benefits

• Direct 3500 Series Compatibility: The 330103-00-15-10-01-00 interfaces natively with Bently Nevada 3500/40M, 3500/42M, and 3500/45 monitor modules without signal conditioning adapters, preserving the deterministic ≤20 ms trip response time mandated by API 670.
• Matched-System Linearity: Factory-matched probe, cable, and driver combination guarantees ±0.1 V/mm sensitivity tolerance across the full linear range, eliminating field calibration iterations during commissioning.
• Dual-Function Measurement: A single probe installation can simultaneously provide radial vibration (dynamic AC component) and average shaft centerline position (DC component) to the monitor, reducing the total sensor count per bearing journal.
• Diagnostic Transparency via Gap Voltage: The DC output voltage at any operating condition directly indicates the physical probe-to-shaft gap, enabling maintenance personnel to detect probe loosening, shaft wear, or mounting bracket deformation without removing the probe from service.
• Hazardous Area Deployment: FM and CSA approvals (suffix -05 variants) allow installation in Class I, Division 1 and Zone 0 classified areas, covering hydrogen-cooled generators, gas compressor trains, and offshore platform applications.
• Thermal Stability for Hot-Section Installations: The 120 °C probe body rating accommodates installations on steam turbine bearing housings and gas turbine exhaust-end bearings where ambient temperatures routinely exceed the limits of standard industrial sensors.
• ADRE 408 DSPi Integration: The analog output is fully compatible with Bently Nevada ADRE 408 data acquisition systems, enabling high-resolution waveform capture (up to 102,400 samples/second) for advanced rotor dynamics analysis and ODS (Operating Deflection Shape) studies.
• Long Cable Run Integrity: The 15-meter integral cable eliminates the field-assembled extension cable joint that is a common source of impedance discontinuity and moisture ingress in proximity transducer installations, improving long-term signal integrity in outdoor and wash-down environments.
• Backward Compatibility with 3300 Series Monitors: The 3300 XL probe is electrically backward-compatible with legacy 3300/16, 3300/20, and 3300/25 monitor cards, protecting existing infrastructure investments during phased system upgrades.
• Reduced Commissioning Risk: The factory-calibrated matched system eliminates the need for field sensitivity verification using a calibrator, reducing commissioning time per measurement point by approximately 45 minutes compared to field-assembled transducer systems.

Quality Assurance & Global Logistics

Every 330103-00-15-10-01-00 unit supplied through siemensplc.com is sourced from authorized Bently Nevada (Baker Hughes) distribution channels. Each unit undergoes a pre-shipment inspection protocol that includes visual examination for probe tip damage, coaxial connector integrity verification, and a functional output check against the 7.87 V/mm sensitivity specification using a calibrated gap-setting fixture. Units that fall outside the ±0.1 V/mm tolerance band are quarantined and returned to the supplier — no exceptions.

Packaging follows anti-static and humidity-controlled standards: the probe assembly is individually bagged with a silica gel desiccant pack and humidity indicator card, then placed in a rigid foam-lined carton rated for international air freight handling. Batch traceability records — including supplier lot number, inspection date, and inspector ID — are retained for a minimum of five years and are available upon request for quality audit purposes.

Shipments originate from our Xiamen, China warehouse. Xiamen’s Gaoqi International Airport provides direct cargo connections to major industrial hubs across Southeast Asia, the Middle East, Europe, and North America. Standard air freight transit times are 3–5 business days to most destinations. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers, with full door-to-door tracking provided at the time of shipment confirmation. For time-critical plant shutdowns or emergency MRO requirements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

All export documentation — commercial invoice, packing list, certificate of origin, and HS code classification (HS 9031.80) — is prepared in compliance with Chinese customs regulations and the import requirements of the destination country. Customers requiring CITES documentation, end-user certificates, or specific country-of-origin certifications should advise at the time of order placement.
