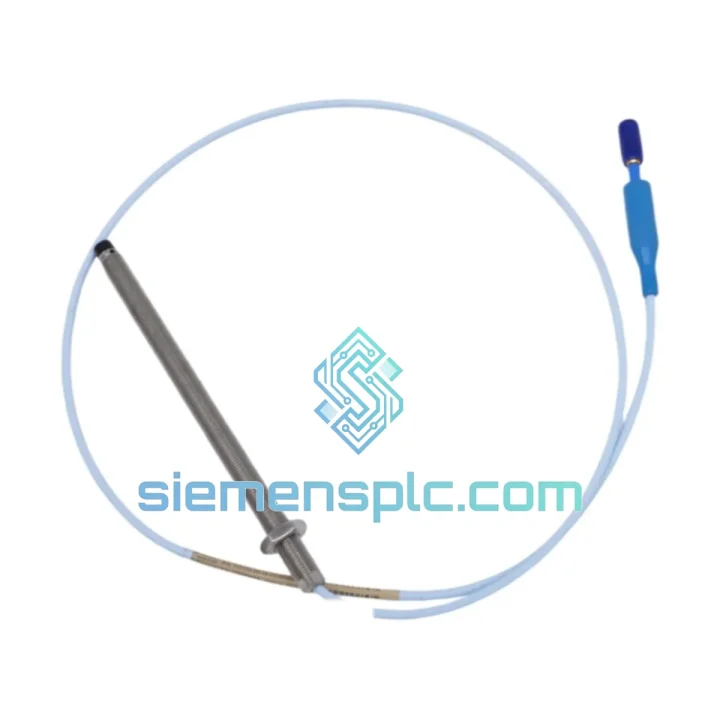

Bently Nevada 330103-00-16-50-12-RU Proximity Probe – 3300 XL Series

Bently Nevada 330103-00-16-50-12-RU: Eddy-Current Proximity Probe for Shaft Dynamics Measurement in Critical Rotating Machinery

The 330103-00-16-50-12-RU is a 5 mm eddy-current proximity probe manufactured by Bently Nevada as part of the 3300 XL measurement system. Its primary function within a machinery protection control loop is continuous, non-contact acquisition of shaft radial displacement and axial position data, feeding real-time gap voltage signals to a paired Proximitor driver. The driver converts the raw oscillator-demodulator output into a calibrated DC voltage proportional to the physical gap between probe tip and target surface, which is then processed by a 3500-series monitor for alarm and trip logic execution. This signal chain operates without mechanical contact, eliminating wear-induced drift and enabling sub-micron resolution across the full service life of the probe.

The 16-inch (406 mm) integral armored cable variant is factory-terminated at both the probe body and the coaxial connector, removing field-splice joints that are statistically the highest-failure-probability nodes in a proximity measurement chain. The reverse-unit (RU) connector orientation allows the extension cable to be routed and secured before probe installation, and permits probe replacement without disturbing the cable harness — a significant advantage in confined bearing-housing geometries where cable re-routing carries risk of insulation damage.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330103-00-16-50-12-RU operates on the Colpitts oscillator principle embedded within the Proximitor driver. The probe tip coil, together with the driver’s internal capacitor network, forms a resonant LC tank circuit oscillating at approximately 1.0 MHz. When a conductive target enters the electromagnetic field, eddy currents are induced on the target surface, loading the tank circuit and reducing oscillation amplitude. The Proximitor’s demodulator stage converts this amplitude change into a linear DC voltage output. The 50 Ω coaxial impedance of the integral cable and matched extension cable is critical: impedance mismatch introduces standing-wave reflections that corrupt the high-frequency oscillator signal, producing non-linearity errors at the upper end of the measurement range.

The armored cable jacket provides mechanical protection against abrasion in bearing-housing environments while simultaneously acting as an EMC shield. The shield is grounded at the Proximitor end only (single-point grounding), preventing ground-loop currents that would appear as low-frequency noise on the gap voltage output — a common failure mode in installations where both cable ends are grounded. The RU connector’s reverse orientation places the cable exit at 180° from the probe axis, reducing bending stress at the cable-to-body junction in installations where the probe must be inserted through a radial port with limited axial clearance.

For non-standard target materials (e.g., 316 stainless steel, titanium alloys), the eddy-current penetration depth and resistivity differ from the AISI 4140 calibration baseline. Bently Nevada publishes target material correction curves; sensitivity deviations of –15% to –25% are typical for austenitic stainless steel shafts. System integrators must apply these corrections in the monitor’s scale factor configuration to maintain alarm setpoint accuracy per API 670 §5.4.

System Integration Benefits

• Drop-in 3300 XL compatibility: The 330103-00-16-50-12-RU is electrically and mechanically interchangeable with all 3300 XL 5 mm probes. Replacement requires no re-calibration of the Proximitor driver or monitor channel, preserving existing alarm and trip setpoints.
• Deterministic DC-to-10 kHz bandwidth: The flat frequency response from DC to 10,000 Hz captures both quasi-static shaft position (thrust, differential expansion) and dynamic vibration components up to the 10th harmonic of a 60,000 RPM machine — a single sensor covers both protection and condition monitoring functions.
• Factory-terminated cable eliminates field-splice variability: Impedance discontinuities at field-made coaxial splices introduce reflections measurable as ±0.5% full-scale errors. The factory-terminated 16-inch cable removes this variable from the measurement uncertainty budget.
• High-temperature rating reduces installation constraints: The +177 °C upper limit allows direct installation in hot-section turbine bearing pedestals without thermal standoffs or cooling provisions, simplifying mechanical design and reducing probe-to-shaft gap uncertainty introduced by thermal expansion of standoff hardware.
• API 670 compliance supports regulatory and insurance requirements: Machinery protection systems in oil & gas and power generation are frequently subject to insurance underwriter specifications and local regulatory mandates that reference API 670. Specifying a compliant probe eliminates the need for deviation documentation.
• RU connector reduces maintenance downtime: In planned maintenance windows, probe replacement without cable re-routing reduces per-point maintenance time. On a 16-point turbine protection system, this translates to measurable reduction in outage duration.
• 50 Ω system impedance enables long extension cable runs: Matched impedance allows extension cables up to 9 m (standard) without signal degradation, providing flexibility in Proximitor mounting location relative to the machine bearing housing.
• Backward compatibility with legacy 3300 (non-XL) drivers: The 3300 XL probe operates with legacy 3300 series Proximitor drivers (50 Ω input impedance), protecting existing infrastructure investment during phased system upgrades.

Quality Assurance & Global Logistics

Each 330103-00-16-50-12-RU unit supplied by siemensplc.com is sourced through verified distribution channels with full traceability to Bently Nevada manufacturing lot records. Pre-shipment verification includes impedance measurement at 50 Ω ±5% using a calibrated LCR meter, visual inspection of probe tip geometry, cable jacket integrity, and connector seating, plus cross-reference of date code and lot number against original factory packaging. No repackaged or relabeled units are accepted.

Shipments originate from Xiamen, China, with typical dispatch within 1–3 business days for in-stock units. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. Available Incoterms include EXW Xiamen, DAP, and DDP. Air freight to major industrial hubs (Rotterdam, Houston, Singapore, Dubai) typically achieves 3–5 transit days. Sea freight consolidation is available for multi-unit orders. All units are shipped in anti-static packaging with foam-lined outer cartons to prevent transit damage to the probe tip and connector.
