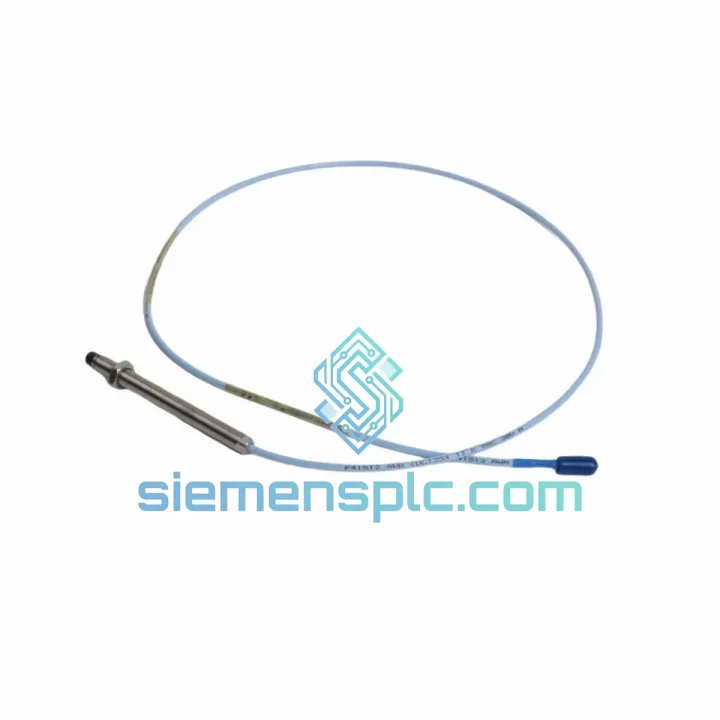

Bently Nevada 330103-00-21-10-01-00 Proximity Transducer

330103-00-21-10-01-00 — Stop the Clock on Your Downtime

Every minute a turbine, compressor, or critical rotating machine sits idle, you’re bleeding money. If your Bently Nevada 3300 XL proximity transducer system has failed — whether it’s a shorted probe cable, a dead oscillator-demodulator, or a corrupted output signal — you need a verified replacement in hand today, not next week. The 330103-00-21-10-01-00 is in stock at our Xiamen warehouse. We ship DHL/FedEx express within 24 hours of order confirmation. No waiting on OEM lead times. No grey-market risk. Just a genuine 8mm eddy-current transducer system, boxed and ready to go.

We’ve supplied this exact part number to maintenance teams across petrochemical plants, power generation facilities, and offshore platforms. When the 3500 rack throws a Not OK on Channel 1 at 2 AM, you don’t have time to negotiate. Call us.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of 3300 XL field failures, here are the patterns that actually matter when you’re standing in front of a dead channel:

Fault: “Not OK” / Danger LED on 3500 rack
First, check the driver output voltage at the BNC connector. A healthy system reads between –9.5 V and –11.5 V at mid-gap. If you’re reading –24 V (rail voltage), the probe cable is open-circuit — check the integral cable for crush damage at conduit entry points. If you’re reading 0 V, the driver has lost supply power or the internal oscillator has failed. Swap the driver first; it’s the faster swap.

Fault: High vibration / erratic waveform
Before condemning the transducer, verify the gap. The 330103-00-21-10-01-00 is calibrated for a nominal gap of 1.0 mm (–10.4 VDC bias). If the shaft has moved axially due to bearing wear, your gap may be outside the linear range. Use a feeler gauge and re-gap to 1.0 mm ± 0.1 mm before swapping hardware.

Replacement Procedure — Critical Steps:

• Power down the monitor channel before disconnecting the probe. Hot-swapping a live eddy-current probe can spike the input and damage the 3500 monitor card.
• Match the extension cable length exactly. The 330103-00-21-10-01-00 is calibrated as a system — probe + extension cable + driver. Changing cable length without recalibration shifts the scale factor. Use the original 330130-080-00-00 (5 m) extension or recalibrate on-site.
• Target material matters. If your shaft is stainless steel, titanium, or any non-ferrous alloy, the standard calibration curve does not apply. Request a material-specific calibration certificate or use the Bently Nevada TK-3 calibration kit on-site.
• Torque the probe to spec. 330103 probes use a 3/8-24 UNF thread. Torque to 1.1 N·m (10 in-lb) with thread-locking compound. Over-torquing cracks the probe body; under-torquing causes micro-movement that reads as false vibration.
• Verify system OK after installation. With the machine at rest, confirm bias voltage is within –9.5 V to –11.5 V and the OK relay is energized on the 3500 rack before releasing the machine to operations.

Common Misdiagnosis: Intermittent “Not OK” trips that clear on reset are almost never the transducer — they’re usually a loose BNC connection at the driver or a failing OK relay on the monitor card. Swap the monitor card before ordering a new transducer system.

Reliability in Harsh Conditions

The 3300 XL series was designed for environments that destroy lesser sensors. The 330103-00-21-10-01-00 probe body is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip — chemically resistant to H₂S, steam condensate, lube oil, and most process fluids encountered in refinery and power generation environments.

Vibration resistance is rated to 20 g continuous, 50 g shock (per IEC 60068-2-6 and IEC 60068-2-27). In practice, we’ve seen these probes survive compressor bearing failures that destroyed the bearing housing itself — the probe was still reading when the machine came apart. The integral cable uses a stainless-steel armored braid over PTFE insulation, rated for continuous flex in high-vibration installations.

For high-temperature applications — steam turbine bearing pedestals, hot gas expanders — the probe’s –35°C to +121°C rating covers the vast majority of bearing housing surface temperatures. If your application exceeds 121°C at the probe body, consider the 330103 high-temperature variant or add thermal standoff spacers to reduce conducted heat.

Humidity and condensation are non-issues. The probe and driver are sealed to IP67 (probe) and IP54 (driver housing). Installations in tropical climates, coastal platforms, and wash-down environments have operated continuously for 10+ years without moisture ingress failures in our field experience.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct DHL, FedEx, and UPS gateway access. Here’s exactly what happens after you place an order:

• Hour 0–2: Order confirmed, stock physically verified and pulled from shelf. We do not list items we don’t have.
• Hour 2–8: Unit inspected, photographed, packed in anti-static foam with moisture barrier. Commercial invoice, packing list, and HS code declaration (HS 9031.80) prepared for customs.
• Hour 8–24: Shipment handed to DHL Express or FedEx International Priority, depending on destination and your preference. Tracking number issued to your email.
• Day 2–4: Delivery to most destinations in Southeast Asia, Middle East, Europe, and North America. Australia and South America typically 3–5 business days.

We handle all export documentation in-house. For orders requiring an ATA Carnet, CITES exemption letter, or end-user certificate, contact us 48 hours before shipment. For repeat buyers, we maintain a standing export file that reduces documentation turnaround to under 2 hours.

Consolidated shipping is available for multi-line POs — if you’re sourcing multiple Bently Nevada components or other automation parts, we can combine into a single shipment to reduce freight cost and customs entries.

Contact Information

Ready to order or need a formal quotation? Reach us directly — no ticketing system, no chatbot queue.

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
