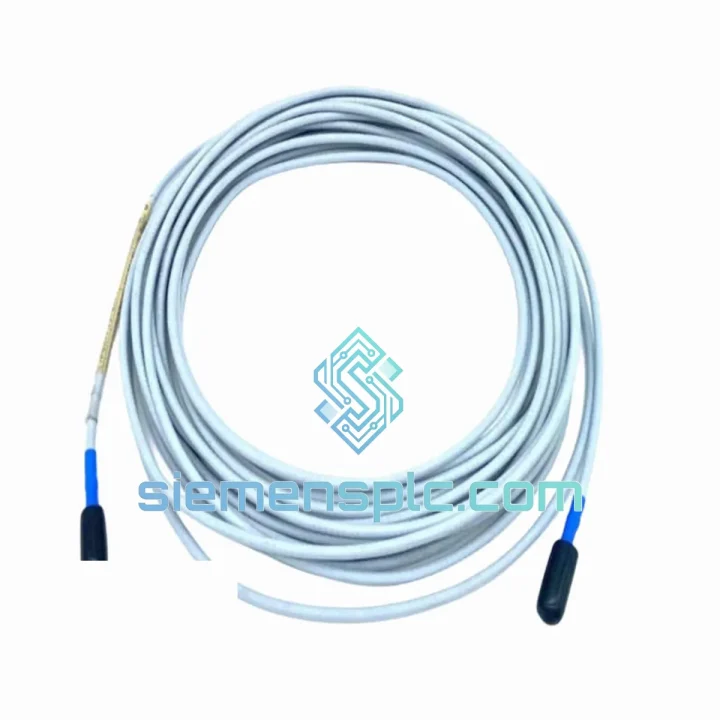

Bently Nevada 330103-02-07-10-02-00 Proximity Probe

330103-02-07-10-02-00 — Stop the Clock on Your Downtime. Ship Today.

Every hour your turbine, compressor, or pump sits idle costs real money — maintenance budgets, production penalties, contractual obligations. The Bently Nevada 330103-02-07-10-02-00 8mm eddy-current proximity probe is a critical sensing element in the 3300 XL Proximity Transducer System, and when it fails, the entire machinery protection chain goes blind. We stock this part in Xiamen and move fast. No weeks-long OEM lead times. No distributor runaround. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here is what actually goes wrong with the 330103-02-07-10-02-00 and what to watch when you swap it out.

Common Failure Signatures:

• OK LED off, -24V present at driver: Probe open-circuit. Check the integral cable at the probe body junction — this is the highest-stress point. Flex fatigue cracks the inner conductor first. Resistance from probe tip to BNC should read 7–9 Ω. Anything above 15 Ω or open = replace the probe.
• Proximitor output rail-high (~−2V or above): Probe is too far from the target or the cable is shorted. Verify gap at nominal (1.0–1.5 mm for most turbine applications). If gap is correct, swap the extension cable first — it is cheaper and fails more often than the probe itself.
• Proximitor output rail-low (~−18V or below): Probe is touching or nearly touching the shaft. Check for bearing failure, rotor drop, or probe mounting loosening. Do not replace the probe until you have ruled out a mechanical event.
• Intermittent 1X vibration spike, no process change: Connector contamination at the BNC/TNC junction between probe cable and extension. Clean with isopropyl alcohol, re-torque to 1.1 N·m. If the spike persists, the probe’s internal coil is developing a micro-short — replace.
• 3500 monitor showing GAP alarm after probe swap: You installed the correct part number but forgot to re-set the gap. The 3300 XL 8mm system nominal gap is 1.0 mm (40 mil). Use a feeler gauge, not just the monitor readout, to set physical clearance before energising.

Replacement Checklist — Do Not Skip These:

• Confirm total system cable length: probe (2.0 m) + extension (7.0 m) = 9.0 m. The 330130 driver is calibrated for this exact length. Substituting a 5.0 m extension shifts your linear range by approximately 8% — enough to cause false alarms or missed trips.
• Verify target material. The 330103 series is factory-calibrated for AISI 4140 steel. Stainless steel shafts (316L, 17-4PH) require a separate calibration factor. If your shaft is non-standard, request a calibration certificate specific to that alloy.
• Check driver firmware. The 3500/42M Proximitor Monitor firmware revisions prior to 3.x have a known sensitivity offset with 8mm probes manufactured after 2018. If your monitor is running old firmware and you are seeing a consistent 3–5% sensitivity error after a like-for-like swap, firmware is the culprit — not the probe.
• Torque the probe body to 20–25 N·m using the lock nut. Under-torqued probes migrate axially under vibration, causing a slow drift in the gap reading that looks exactly like bearing wear on trend plots. This wastes engineering hours chasing a ghost.
• After installation, perform a static gap check at the monitor: output should read between −10.0 V and −11.0 V at 1.0 mm gap. If it reads outside this band with a confirmed physical gap, the probe or extension is mismatched — do not commission.

Reliability in Harsh Conditions

The 330103-02-07-10-02-00 is not a laboratory instrument. It is built to survive the environments where machinery actually runs.

The probe body is machined from 316 stainless steel with a PEEK (polyether ether ketone) tip housing. PEEK maintains dimensional stability from cryogenic temperatures to 177°C and resists hydrocarbon condensate, H₂S, and steam impingement — the three fluids most likely to destroy a cheaper sensor within a year. The integral cable uses a silver-plated copper conductor inside a PTFE dielectric, wrapped in stainless steel armour braid. This construction survives continuous vibration at 50g, 10–2000 Hz, which covers the full excitation spectrum of any rotating machine you are likely to encounter in a refinery or power plant.

Humidity is handled by the hermetic seal at the probe tip. The coil assembly is encapsulated in epoxy under vacuum, eliminating air pockets that would otherwise absorb moisture and shift the coil’s inductance over time. Field units have been recovered from flooded cable trenches and returned to within-spec sensitivity after drying — a testament to the encapsulation quality.

Thermal cycling is the silent killer of eddy-current probes. The 330103 series uses a matched-expansion coil former that keeps the coil geometry stable across the full −35°C to +177°C range. Competing designs that use aluminium formers with copper coils experience differential expansion that shifts sensitivity by up to 2% per 50°C change — invisible on a single reading, catastrophic on a long-term trend.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to carrier.
• DHL Express Worldwide: Xiamen → most of Europe and North America in 2–3 business days. Southeast Asia in 1–2 days.
• FedEx International Priority: Alternative routing for destinations where DHL coverage is slower. We select the faster carrier at no extra cost to you.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. ATEX/IECEx declarations and calibration certificates included in the shipment if requested at order time.
• Customs classification: HS Code 9031.80 (measuring/checking instruments). We pre-declare correctly to avoid customs holds — a common delay point that other suppliers ignore.
• Tracking: AWB number sent within 2 hours of carrier pickup. We monitor the shipment and proactively flag any customs queries before they cause delays.

If your plant is in a country with import restrictions on electronic instruments, contact us before ordering. We have routed shipments through bonded warehouses in Singapore, Dubai, and Rotterdam to reach customers in markets with complex import regimes.
