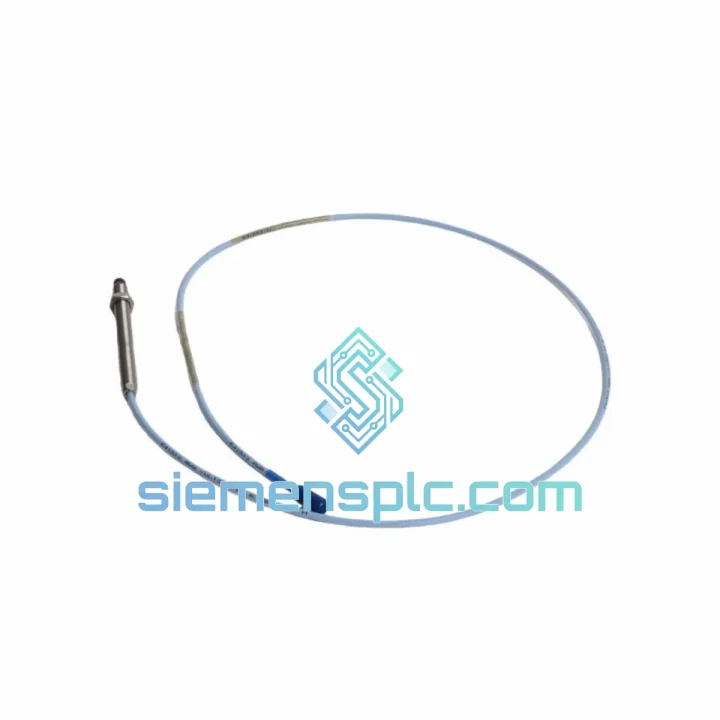

Bently Nevada 330103-02-08-05-02-00 Proximity Transducer

330103-02-08-05-02-00 — Stop the Clock on Your Downtime

Every minute a turbine, compressor, or critical rotating machine sits idle, you’re bleeding money. The Bently Nevada 330103-02-08-05-02-00 8 mm eddy-current proximity transducer is the exact part standing between your plant and full production recovery. We stock it. We ship it fast — from Xiamen, China, via DHL or FedEx Express — so your maintenance window doesn’t turn into a week-long crisis.

This is not a generic substitute. This is the genuine Bently Nevada 3300 XL 8 mm Proximity Transducer System — factory-calibrated, API 670-compliant, and ready to drop into your existing 3300 XL driver setup without recalibration. If your vibration monitoring system just threw a fault and you need a verified replacement today, you’re in the right place.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the 330103 series reveals a consistent set of failure modes. Before you pull the trigger on a replacement order, run through this checklist — it will save you from ordering the wrong variant or missing a wiring issue that mimics a dead probe.

Fault Code: High Static Voltage / Gap Voltage Out of Range
The 3300 XL driver expects a gap voltage between −10 VDC and −12 VDC at the nominal 1.0 mm air gap. If you’re reading outside this window, the probe is either physically damaged, the target surface has changed (corrosion, scoring, runout), or the probe-to-driver cable system has a break. Disconnect the extension cable at the driver junction box and measure resistance across the probe coil — nominal is 6–8 Ω. An open circuit or reading above 20 Ω confirms probe failure.

Fault Code: Probe Not OK / System Fault on 3500 Monitor
This alarm fires when the driver output falls outside the monitor’s configured OK limits. Nine times out of ten on a 330103-02-08-05-02-00 replacement job, the technician has swapped the probe but left the old extension cable in place. Inspect the 330130 extension cable connectors — the MIL-C-5015 2-pin connectors corrode in wet environments and introduce resistance that shifts the gap voltage. Replace the cable as a system, not just the probe.

Replacement Procedure — Step by Step

1. De-energize the driver (remove −24 VDC supply). Do not hot-swap proximity probes — the driver output can spike and damage the monitor input card.
2. Loosen the probe locknut and back the probe out of the bracket. Count the turns — you’ll need to thread the new probe to the same depth to restore the original gap voltage.
3. Disconnect the extension cable from the probe. Inspect the connector pins for corrosion or bent contacts. If in doubt, replace the extension cable (330130-050-00-00 for 5 m).
4. Thread the new 330103-02-08-05-02-00 into the bracket to the same depth. Re-energize the driver and measure gap voltage. Target: −10.5 VDC ± 0.5 V at nominal gap.
5. Fine-adjust probe depth until gap voltage is within spec, then torque the locknut to 2.8 N·m (25 in·lb). Do not over-torque — the probe body is stainless steel but the threads are fine-pitch.
6. Verify the 3500 monitor clears the Probe Not OK alarm. Check 1X and 2X vibration readings against baseline — if they look abnormal, recheck the gap and confirm the target surface is clean and concentric.

Critical Configuration Note — Total System Cable Length: The 330103-02-08-05-02-00 probe has a 200 mm integral cable. The extension cable (330130-050-00-00) adds 5 m. Total system length = 5.2 m. The 3300 XL driver is calibrated for either a 5 m or 9 m system — confirm your driver’s system length setting matches. Mixing a 5 m probe system with a 9 m driver calibration shifts the scale factor by approximately 3%, which will cause incorrect vibration amplitude readings and may mask real machinery faults.

Reliability in Harsh Conditions

The 330103-02-08-05-02-00 was engineered for environments that destroy ordinary sensors. The probe body is machined from 316 stainless steel with a PEEK (polyether ether ketone) tip — chemically inert against hydrocarbon condensate, H₂S, and the aggressive cleaning solvents used in refinery turnarounds. The stainless-armored extension cable withstands continuous flexing in high-vibration installations without fatigue cracking at the connector roots, which is the most common failure point on cheaper alternatives.

Thermal performance is genuine, not marketing copy: the probe is rated to +177 °C continuous, which covers steam turbine bearing housings and hot-section compressor casings without thermal derating. In high-humidity coastal and offshore environments, the IP67 rating means the probe survives temporary immersion — relevant when steam purging or washdown operations are part of your maintenance routine.

Bently Nevada validates the 3300 XL system against API 670 Annex D, which specifies vibration endurance testing at 10–2000 Hz, 20 g peak. The probe mounting bracket and locknut assembly are designed to maintain gap stability under these conditions. Counterfeit or low-cost equivalents routinely fail this test within weeks of installation — the gap drifts, the monitor alarms, and you’re back to troubleshooting a problem that shouldn’t exist.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of the country’s primary industrial export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent replacement orders, here is exactly what happens after you confirm:

• Same-day dispatch: Orders confirmed before 15:00 CST ship the same business day. You receive tracking within 2 hours of handover to the carrier.
• DHL Express Worldwide: Transit time 2–4 business days to most of Europe, Southeast Asia, the Middle East, and North America. Door-to-door with customs clearance included.
• FedEx International Priority: Available for time-critical shipments where DHL is not the fastest option for your specific destination. We compare rates and transit times and recommend the faster carrier at no extra charge.
• Commercial invoice and packing list: Prepared to your specifications. HS Code 9026.80 (instruments for measuring physical quantities) is standard for this product. We can adjust the declared value and description to comply with your country’s import regulations.
• Packaging: Each probe is individually wrapped in anti-static foam, placed in a rigid cardboard tube, and double-boxed for air freight. The connector ends are capped to prevent pin damage in transit.
• Insurance: Shipment insurance is included on all orders above USD 500. For high-value orders, we provide a certificate of insurance on request.

We have shipped the 330103-02-08-05-02-00 to refineries in Saudi Arabia, power plants in Vietnam, LNG terminals in Australia, and paper mills in Scandinavia. The logistics process is proven. Your part arrives intact, on time, and ready to install.
