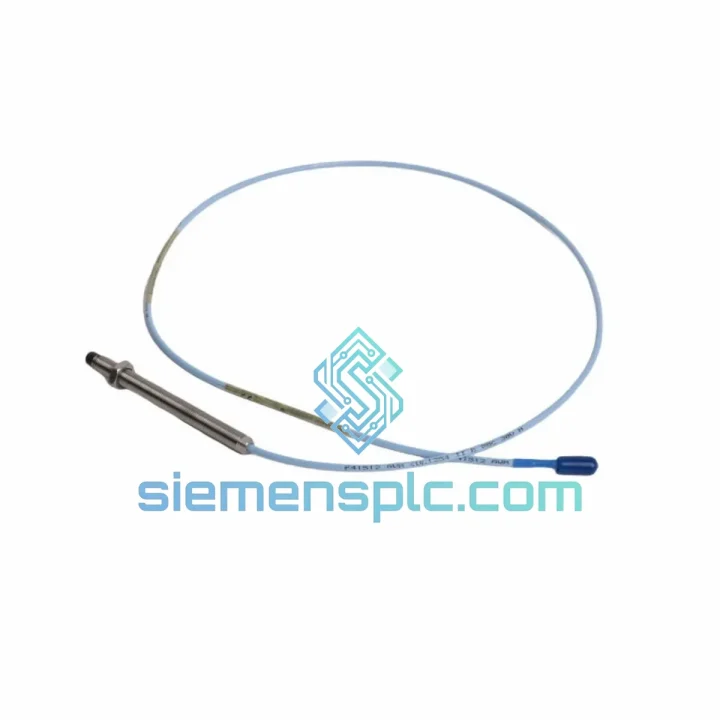

Bently Nevada 330103-04-13-10-02-CN Proximity Transducer

330103-04-13-10-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour a turbine or compressor sits idle costs real money. On a mid-scale gas turbine train, unplanned downtime runs $50,000–$200,000 per day in lost production alone — before you factor in emergency labor, expedite freight, and contractual penalties. The Bently Nevada 330103-04-13-10-02-CN is the exact 8mm eddy-current proximity transducer your 3300 XL Proximitor® system needs to get back online. We stock it in Xiamen. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here is what actually goes wrong with 3300 XL proximity systems — and what to check before you condemn the transducer:

Fault Code: High Vibration / Danger Alert (3500 rack)
First, verify the gap voltage at the Proximitor output. Nominal gap for most radial vibration applications is –10 VDC ± 1 V (corresponding to ~1.27 mm air gap). If you read –24 V or 0 V, the probe is either open-circuit or shorted — the transducer itself is the failure point. If gap voltage is normal but vibration amplitude is spiking, check the extension cable for chafing against hot surfaces before replacing the probe.

Fault Code: Not OK (OK relay de-energized)
The Proximitor driver monitors output voltage continuously. An OK dropout with no process change almost always means the probe tip has been struck by a loose component or the cable connector has corroded. Inspect the CN connector pins for green oxidation — this is common in humid coastal environments. Clean with contact cleaner; if OK relay still drops, replace the 330103-04-13-10-02-CN transducer.

Replacement Procedure — Step by Step:

1. Isolate the machinery and confirm zero-speed before any probe access. Do not work on a spinning shaft.
2. Disconnect the CN connector at the junction box. Label the cable before removal.
3. Using the correct probe wrench (do not use pliers — you will damage the probe body threads), back out the 330103-04-13-10-02-CN counterclockwise. Note the number of turns from the bracket face — this is your starting gap reference for the new probe.
4. Thread the new probe in by hand until snug. Do not cross-thread. Apply the same number of turns as the removed probe to approximate the original gap.
5. Reconnect the CN connector. Power up the Proximitor driver and measure output voltage. Adjust probe depth in 1/4-turn increments until gap voltage reads –10 VDC ± 0.5 V.
6. Lock the probe with the jam nut. Torque to manufacturer spec (typically 20–25 Nm for 8mm probes). Verify gap voltage has not shifted after torquing.
7. Confirm OK relay energizes on the 3500 rack. Clear any latched alerts. Log the new gap voltage in your machinery history file.

Critical Configuration Notes:

• The 330103-04-13-10-02-CN is calibrated for AISI 4140 steel targets. If your shaft is Inconel, titanium, or stainless, you must apply a target material correction factor — failure to do so will result in a 15–30% sensitivity error and false vibration readings.
• Total system cable length must match the Proximitor driver calibration. This part is configured for a 13.0 m total system. Mixing cable lengths from different system configurations will shift the sensitivity curve and invalidate your calibration.
• The -CN connector variant is not interchangeable with standard MIL-spec connectors without an adapter. Confirm your junction box connector type before ordering.
• No DIP switch or address configuration is required for this transducer — it is a passive sensor. All signal conditioning is handled by the 330180-series Proximitor driver.
• Firmware matching is not applicable to this analog transducer. However, if you are replacing into a 3500/40M or 3500/42M monitor card, verify the channel configuration in System 1® matches the new probe sensitivity (200 mV/mil).

Reliability in Harsh Conditions

The 3300 XL platform was not designed for a clean lab. It was designed for the inside of a turbine enclosure where temperatures swing 150°C between cold start and full load, where lube oil mist coats every surface, and where the floor vibrates at 50 Hz continuously. The 330103-04-13-10-02-CN is built to survive exactly that environment.

The probe body is machined from stainless steel with a ceramic-filled epoxy tip that resists thermal shock and chemical attack from process fluids. The coaxial cable jacket is rated for continuous immersion in lube oil and intermittent contact with steam condensate. Vibration endurance testing per API 670 Annex D subjects the probe to 20g swept-sine excitation from 10–2000 Hz — the same vibration environment it will experience mounted on a compressor bearing housing running at 3000 RPM.

In high-humidity coastal installations — a common scenario in South China petrochemical plants — the CN connector’s gold-plated contacts maintain contact resistance below 10 mΩ after 1000 hours of salt-fog exposure per IEC 60068-2-11. That matters when you are trying to distinguish a 1 mil shaft vibration change from connector noise.

Units dispatched from our Xiamen warehouse undergo a 100% incoming inspection protocol: dimensional check of probe tip geometry, electrical continuity from tip to connector pin, and sensitivity verification against a calibrated steel target at the nominal –24 VDC supply. Only units that pass all three checks are released for shipment. You receive a unit that is ready to install, not one that needs to be tested on arrival.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items. Here is exactly how your order moves from our shelf to your site:

• Order Confirmation: Within 2 hours of payment or PO receipt, you receive a confirmation with stock verification and estimated dispatch time.
• Pre-Shipment Inspection: Each unit is photographed with part label visible. Inspection report and photos are emailed before the package leaves our facility.
• Packaging: OEM anti-static inner packaging is preserved. The unit is double-boxed in a rigid outer carton with foam cushioning rated for 1.5m drop. Probe tip is protected with a machined plastic cap.
• Carrier Selection: DHL Express or FedEx International Priority, selected based on your destination and fastest available transit time. For Southeast Asia and East Asia destinations, SF Express International is available as an alternative with competitive transit times.
• Transit Times (from Xiamen): Southeast Asia 1–2 business days; Middle East and India 2–3 business days; Europe 3–4 business days; North America 3–5 business days.
• Tracking: AWB number provided within 4 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Customs Documentation: Commercial invoice, packing list, and certificate of origin prepared to your specification. HS code 9026.80 declared. For countries requiring FORM E or other preferential certificates, advise at time of order.
• Emergency Weekend Dispatch: For critical shutdowns, contact us via WhatsApp before 14:00 CST Saturday. We maintain weekend dispatch capability for confirmed emergency orders.
