Bently Nevada 330103-05-09-10-02-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330103-05-09-10-02-00 — 8 mm Eddy-Current Proximity Transducer in the 3300 XL Measurement Chain

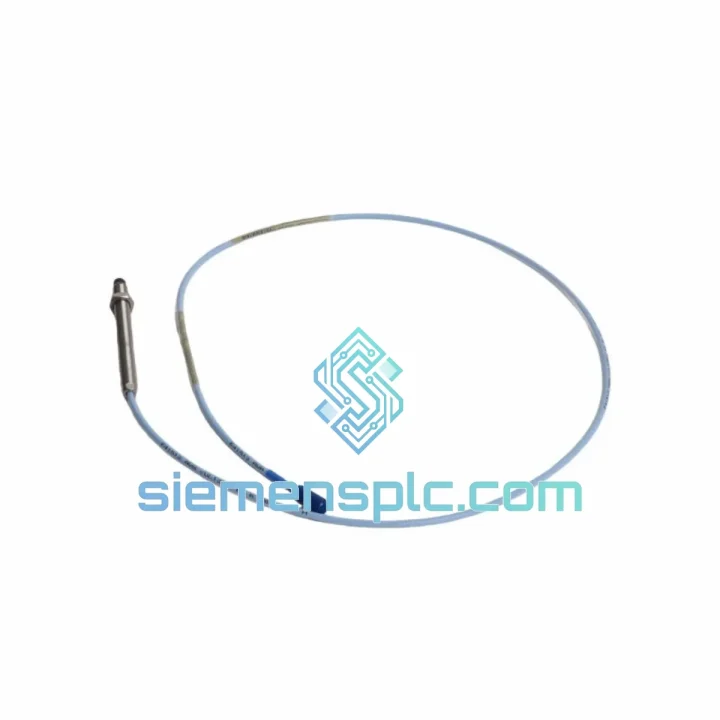

The Bently Nevada 330103-05-09-10-02-00 is an 8 mm diameter eddy-current proximity transducer designed as the sensing element within the 3300 XL Proximity Transducer System. Its primary function is the continuous, non-contact measurement of relative shaft displacement — capturing radial vibration, axial position, and differential expansion data in rotating machinery operating under API 670 machinery protection requirements. The transducer operates as one node in a three-component measurement chain: probe, extension cable, and Proximitor driver. Each element is factory-matched to maintain the system’s calibrated sensitivity of 7.87 V/mm (200 mV/mil) across the full linear measurement range of 0 to 2 mm.

In a typical turbine protection loop, the 330103-05-09-10-02-00 is mounted in a radial bearing housing at a fixed gap of approximately 1.0 mm from the shaft surface. The Proximitor driver — powered at −24 VDC — excites the probe coil at a carrier frequency of 1.0 MHz. As shaft eccentricity varies the air gap, the eddy-current loading on the coil changes proportionally, and the driver converts this impedance variation into a DC-coupled voltage output ranging from −1 VDC to −11 VDC. This output feeds directly into a 3500-series monitor card, where gap voltage, dynamic vibration amplitude, and DC gap position are processed simultaneously with sub-millisecond latency — a deterministic response characteristic that is non-negotiable in overspeed and high-vibration trip logic.

The 05-09-10-02-00 suffix encodes the cable configuration: 5 m integral armored cable, 9 mm probe body length, standard 10-32 UNF mounting thread, metric connector, and standard temperature rating. This configuration is the most widely deployed variant in combined-cycle power plants, LNG compression trains, and refinery process compressors globally.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Eddy-Current Coil Architecture and Gap Linearity. The probe coil is wound on a ferrite core and encapsulated in a thermally stable epoxy compound rated to 177 °C. The coil geometry is optimized for an 8 mm sensing diameter, which defines the effective sensing field depth — approximately 30% of the probe diameter, or roughly 2.4 mm. This constrains the linear measurement range to 0–2 mm, beyond which the field-to-impedance relationship becomes non-linear. The 3300 XL driver compensates for target material conductivity variations through a factory-set calibration resistor network, ensuring the 7.87 V/mm scale factor holds within ±1% for standard AISI 4140 steel shafts. For non-ferrous targets (titanium, Inconel), a separate calibration is required and documented in Bently Nevada Application Note 141.

EMC Design and Shielding Architecture. The integral 5 m cable uses a double-shield construction: an inner foil shield bonded to the coaxial signal conductor, and an outer braided shield connected to the probe body ground. This arrangement achieves greater than 60 dB of common-mode rejection at frequencies up to 100 kHz, suppressing conducted interference from variable-frequency drives, bus bars, and adjacent instrumentation cables. The armored outer jacket provides mechanical protection against crush loads up to 500 N/m and resists hydrocarbon fluids, steam condensate, and turbine lube oil — all common contaminants in bearing housing environments.

Thermal Stability and Drift Characteristics. The probe’s thermal coefficient of sensitivity is specified at less than 0.04% per °C across the operating range. In a gas turbine bearing housing where ambient temperature may swing from 20 °C at cold start to 150 °C at full load, this translates to a maximum thermal drift of approximately 5.2 mV/mm — well within the ±1% tolerance band. The Proximitor driver’s internal temperature compensation circuit further corrects for cable capacitance changes with temperature, maintaining output accuracy without field recalibration.

Hazardous Area Certification Logic. The ATEX Ex ia IIC T6 rating classifies this transducer for Zone 0 installation — the most demanding hazardous area category, where explosive gas atmospheres are present continuously. The intrinsic safety barrier in the Proximitor driver limits the energy delivered to the probe coil to below the ignition threshold of hydrogen (Group IIC), the most ignition-sensitive gas class. T6 surface temperature classification (maximum 85 °C surface temperature) ensures compatibility with low auto-ignition-temperature substances such as carbon disulfide.

System Integration Benefits

• Deterministic real-time response: The DC-coupled output with 10 kHz bandwidth ensures that shaft vibration events at frequencies up to the 10th harmonic of a 60,000 RPM machine are captured without phase lag, preserving the integrity of trip logic timing in 3500-series monitors.
• Direct 3500/42M monitor compatibility: The −1 to −11 VDC output range maps directly to the 3500/42M Proximitor/Seismic Monitor input specification, eliminating signal conditioning adapters and the associated failure modes they introduce.
• Plug-compatible with existing 3300 XL infrastructure: The 10-32 UNF thread and metric connector are mechanically and electrically identical to all prior 3300 XL probe variants, enabling drop-in replacement without re-cabling or re-gapping procedures beyond standard gap verification.
• Simultaneous DC gap and AC vibration measurement: A single probe output carries both the DC position signal (shaft centerline position, axial thrust) and the AC vibration signal (dynamic displacement amplitude, phase). The monitor card separates these components internally, reducing probe count per measurement point by 50% compared to separate position and vibration sensors.
• Diagnostic transparency via gap voltage monitoring: The DC gap voltage provides a continuous, real-time indicator of probe-to-shaft clearance. Gradual drift in gap voltage — visible in System 1 trend plots — identifies bearing wear, shaft bow, or probe mounting looseness before vibration amplitude thresholds are reached, enabling condition-based maintenance scheduling.
• Reduced wiring complexity in multi-channel installations: The three-component chain (probe + extension cable + Proximitor) consolidates signal conditioning at the Proximitor, which can be mounted in a junction box up to 9 m from the probe. This architecture keeps intrinsically safe wiring confined to the hazardous area and moves the barrier to the safe area, simplifying zone boundary management.
• API 670 compliance for insurance and regulatory acceptance: Machinery protection systems built around this transducer satisfy the API 670 5th Edition requirements for radial vibration, axial position, and differential expansion measurement, which are mandatory for acceptance by most insurance underwriters and regulatory bodies in the oil & gas and power generation sectors.
• Long-term calibration stability: The encapsulated coil construction and thermally compensated driver maintain scale factor accuracy over a 5-year calibration interval under normal operating conditions, reducing the frequency of planned shutdowns required for instrumentation recertification.

Quality Assurance & Global Logistics

Every 330103-05-09-10-02-00 unit dispatched from our Xiamen, China facility is a genuine Bently Nevada (Baker Hughes) component sourced through verified industrial supply channels. Each unit undergoes a structured pre-shipment inspection: visual examination of probe body, cable jacket, and connector integrity; electrical continuity verification of the coil circuit and cable shield; output sensitivity check against a reference target at nominal gap (1.0 mm), with results logged against the 7.87 V/mm ± 1% acceptance criterion; and serial number traceability cross-check against available manufacturer documentation.

Export documentation — commercial invoice, packing list, certificate of origin, and packing specification — is prepared for every shipment. Air freight to major industrial hubs in Europe, the Middle East, Southeast Asia, and North America typically achieves 3–5 business day transit. Sea freight consolidation is available for bulk orders. All shipments are fully insured, and tracking references are provided at the time of dispatch. A 12-month warranty covers manufacturing defects from the date of shipment. Units that fail to meet published specifications upon receipt are accepted for return within 30 days with supporting test evidence.
