Bently Nevada 330103-05-10-02-00 Proximity Probe – 3300 XL Series

Bently Nevada 330103-05-10-02-00 — 8 mm Eddy-Current Proximity Probe in Rotating Machinery Protection Loops

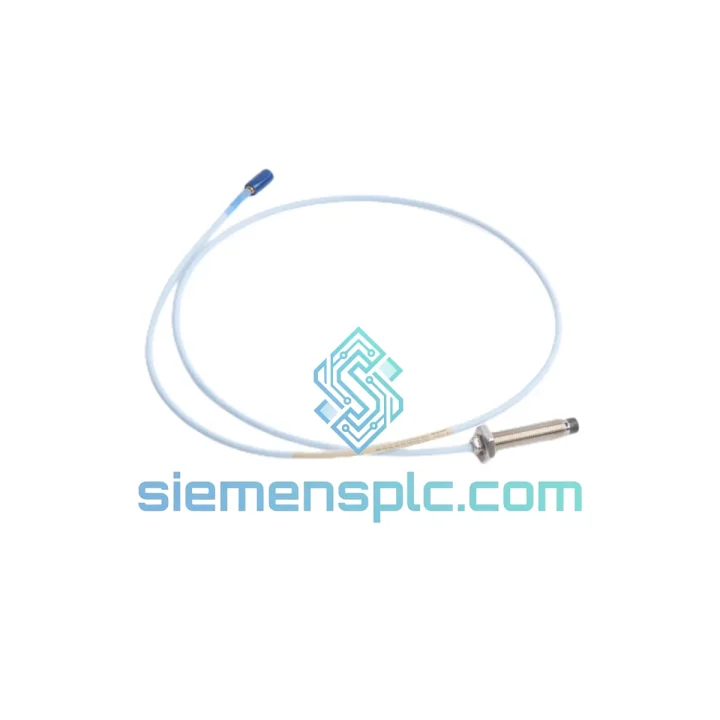

The 330103-05-10-02-00 is an 8 mm diameter, short-body proximity probe within Bently Nevada’s 3300 XL transducer platform. It operates on the eddy-current principle: a high-frequency oscillator (typically 1.0 MHz) embedded in the proximitor drives an LC tank circuit through the probe coil. When a conductive target shaft enters the probe’s electromagnetic field, eddy currents are induced on the shaft surface, loading the tank circuit and reducing its oscillation amplitude. The proximitor’s demodulator converts this amplitude change into a calibrated DC voltage output — nominally –7.87 V/mm (–200 mV/mil) — that is directly proportional to the air gap between probe tip and shaft surface. This analog signal feeds directly into Bently Nevada 3500 or 3300 Series rack monitors, where it is processed for radial vibration, axial position, differential expansion, and eccentricity measurements in compliance with API 670 (5th Edition).

The 330103-05-10-02-00 carries a 1.0 m factory-terminated armored integral cable with TNC connector, M10×1.0 thread body, and an operating temperature ceiling of +177°C — parameters that collectively define its deployment envelope across steam turbine bearing pedestals, centrifugal compressor journal bearings, boiler feed pump shafts, and high-ambient gearbox housings. The armored cable construction eliminates field splicing at the probe-to-extension-cable junction, preserving the coaxial impedance match that is critical to scale factor accuracy across the full linear range of 0.25 mm to 2.26 mm (10 to 89 mil).

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330103-05-10-02-00 probe body houses a precision-wound sensing coil encapsulated in a thermally stable, chemically resistant polymer tip. The coil geometry is matched to the 3300 XL proximitor’s oscillator circuit to maintain a defined Q-factor across the rated temperature range, ensuring that thermal drift of the scale factor remains within ±0.5% over the full –35°C to +177°C envelope — a specification that matters in turbine bearing pedestals where ambient temperatures can swing 120°C between cold startup and full-load steady state.

EMC Design: The armored integral cable serves a dual function. Mechanically, the stainless-steel armor resists abrasion and crush loads in congested machinery spaces. Electrically, the armor acts as a Faraday shield, attenuating capacitively coupled interference from adjacent high-voltage cabling, variable-frequency drives, and bus bars. The coaxial geometry of the cable maintains a controlled characteristic impedance (nominally 50 Ω) from probe coil to proximitor input, preventing reflections that would distort the high-frequency oscillator signal and introduce measurement error at the demodulator stage.

Eddy-Current Depth Penetration: At 1.0 MHz oscillator frequency, the skin depth in AISI 4140 steel is approximately 0.08 mm. This shallow penetration means the probe responds exclusively to surface conductivity and geometry — it is immune to subsurface material variations, internal voids, or shaft bore geometry. The consequence is a highly repeatable output that tracks shaft surface displacement with sub-micron resolution under steady-state conditions, and a dynamic response flat to 10 kHz that captures vibration harmonics up to the 10th order on a 60,000 RPM machine.

Thermal Compensation Architecture: The 3300 XL system achieves temperature stability through a matched-component approach: the probe coil, extension cable, and proximitor are characterized as a system at the factory. The proximitor’s internal compensation network corrects for the predictable temperature coefficient of the probe coil inductance, so the end-to-end scale factor remains within API 670’s ±1% accuracy requirement across the operating temperature range without field recalibration.

Mechanical Robustness: The M10×1.0 thread body is machined from 316 stainless steel, providing corrosion resistance in oil-mist and process-gas environments. The probe tip polymer (PEEK or equivalent) withstands continuous immersion in turbine lube oil, gear oil, and common process hydrocarbons without swelling or dimensional change that would alter the probe-to-shaft gap and introduce a static measurement offset.

System Integration Benefits

• Direct API 670 Compliance: The 330103-05-10-02-00 is designed to satisfy API Standard 670 (5th Edition) transducer system requirements for non-contacting vibration and position measurement, eliminating the need for supplementary compliance documentation in new machinery protection system designs.
• Zero-Recalibration Hot-Swap: Within the 3300 XL ecosystem, replacing a failed probe with an identical 330103-05-10-02-00 does not require proximitor recalibration. The factory-matched scale factor is consistent unit-to-unit, reducing planned maintenance outage duration to the time required for mechanical probe replacement and gap setting only.
• Deterministic Analog Output: The –VDC output is a continuous, real-time analog signal with no digital latency, protocol overhead, or firmware dependency. Monitor rack processing of the signal is deterministic to the rack’s sampling interval — typically 1 ms or less on 3500 Series monitors — supporting trip response times that meet API 670’s 1-second maximum requirement with substantial margin.
• Broadband Vibration Capture: The DC-to-10 kHz frequency response enables simultaneous measurement of 1× synchronous vibration, subsynchronous instability (oil whirl/whip at 0.43–0.48×), and high-frequency structural resonances in a single channel, without the bandpass filtering that would be required with lower-bandwidth sensors.
• Shaft Orbit Reconstruction: Two probes installed at 90° (X–Y configuration) per API 670 provide the orthogonal displacement signals required for shaft orbit plots in Bently Nevada System 1 or equivalent condition monitoring software, enabling bearing clearance assessment and rotor dynamic diagnostics without additional hardware.
• Hazardous Area Deployment: FM and CSA approvals allow installation in NEC/CEC Class I, Division 1 and Division 2 hazardous locations, covering the majority of petrochemical, refinery, and offshore platform machinery spaces without requiring intrinsically safe barriers in the signal loop.
• Diagnostic Transparency via Gap Voltage: The DC bias voltage at the proximitor output provides a continuous, real-time indication of the probe-to-shaft static gap. Operators can monitor gap voltage trends to detect probe fouling, bracket loosening, shaft wear, or bearing wear-in without interrupting machine operation — a condition monitoring capability that requires no additional instrumentation beyond the existing protection channel.
• Backward Compatibility with 3300 Infrastructure: The 3300 XL probe is electrically and mechanically compatible with existing 3300 Series extension cables and mounting hardware, allowing incremental upgrade of probe elements in installed systems without replacing brackets, conduit runs, or junction boxes — a significant capital cost avoidance in brownfield retrofit projects.
