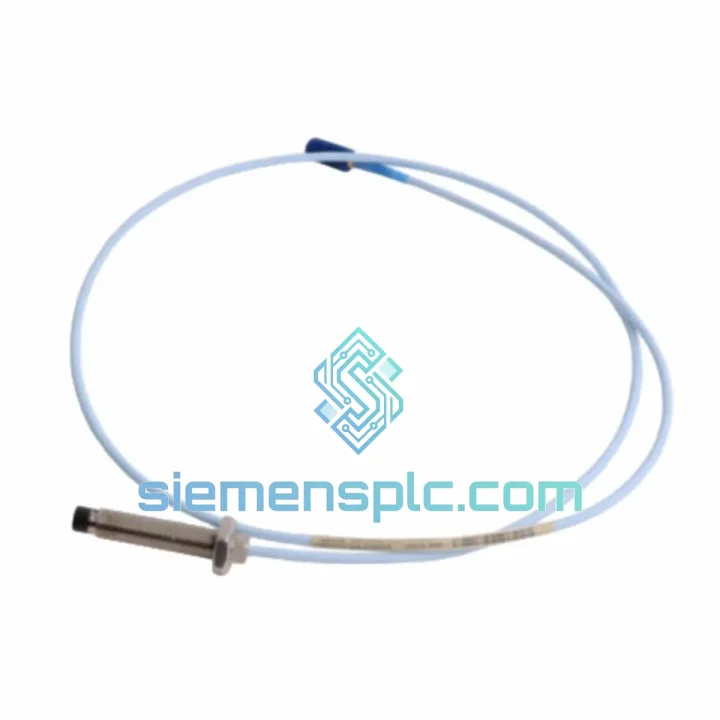

Bently Nevada 330103-07-18-10-02-00 Proximity Transducer

330103-07-18-10-02-00 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every hour your turbine or compressor train sits idle, you’re bleeding money — production losses, contractual penalties, idle crew costs. The Bently Nevada 330103-07-18-10-02-00 is a precision 8 mm eddy-current proximity transducer from the industry-standard 3300 XL platform. We stock it. We ship it. DHL Express from Xiamen, China — most destinations in 2–4 business days. No waiting on OEM lead times. No broker runaround. One call, one part, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience. These are the failure modes and swap gotchas that bite engineers who haven’t done this specific model before.

Top Failure Modes on the 330103-07-18-10-02-00:

• Broken coaxial cable at the probe body junction — The most common failure. High-cycle vibration fatigues the cable at the strain relief point. Symptom: intermittent or fixed DC output, usually reading full-scale negative (−24 V rail). Don’t assume the Proximitor driver is dead — swap the probe first.
• Contaminated probe tip — Oil mist, carbon deposits, or metallic debris on the tip shifts the gap calibration. A 2 mm gap may read as 1.6 mm. Clean with isopropyl alcohol before condemning the unit. If output doesn’t recover, the tip ceramic is cracked — replace the probe.
• Driver (Proximitor) mismatch — The 330103 is a 3300 XL probe. It must be paired with a 3300 XL Proximitor (e.g., 330180-X1-05). Pairing with an older 3300 non-XL driver causes sensitivity error of up to 15%. Check the driver label before installation.
• Extension cable impedance fault — Field-spliced or damaged connectors cause the Proximitor self-test to fail. The 3500 rack flags a NOK on the channel. Replace the full cable assembly, not just the connector.
• Target material mismatch — Inconel 718 or 17-4 PH stainless shafts require a material correction factor. Standard AISI 4140 calibration will read low by ~20%. Apply the BN correction factor or request a factory-calibrated unit.

Step-by-Step Hot-Swap Procedure:

1. Put the 3500 rack channel in bypass mode before touching the probe. A live NOK signal can trigger a protective trip on a running machine.
2. Record the existing probe gap with a feeler gauge before removal. Standard turbomachinery gap is 50 mil (1.27 mm) — verify against your OEM drawing.
3. Back the probe out, counting thread turns. The 330103 uses M10 × 1.0 threads. Note the engagement depth.
4. Install the new probe to the same depth. Fine-adjust gap to the recorded value. Torque the lock nut to 5–7 N·m — do not over-torque on aluminum brackets.
5. Seat the coaxial connector fully and hand-tighten the locking collar. A loose connector is the #1 cause of post-installation NOK faults.
6. Power up the Proximitor. At 50 mil gap on AISI 4140, expected DC output = −10.0 VDC ± 0.5 V. Outside this range: re-check gap and target material.
7. Remove bypass. Confirm OK status on the 3500 rack. Verify vibration reading is within baseline ± 10% before returning to service.

Common 3500 Rack Fault Codes:

• NOK LED lit — Gap out of linear range, open cable, or driver power loss. Start with gap check.
• Danger LED at startup — Alarm setpoints not bypassed during installation. Always bypass before powering up.
• Erratic/spiking reading — Loose coaxial connector or intermittent cable. Wiggle-test the cable while watching System 1 trend.
• Flat-line at −24 V — Open circuit in probe or cable. Replace probe assembly.
• Flat-line at 0 V — Short circuit. Inspect cable for crush damage or connector failure.

Reliability in Harsh Conditions

The 3300 XL platform was built for the inside of a turbine pedestal — 60°C ambient, oil mist atmosphere, 2 g broadband vibration, zero tolerance for false trips. The 330103-07-18-10-02-00 holds up through several design choices that matter when you’re 200 km offshore or inside a steel mill.

The probe body is machined from 316 stainless steel with a ceramic-filled epoxy tip. The ceramic’s thermal expansion coefficient is matched to the stainless body, preventing tip delamination during the thermal cycling that kills cheaper probes. In steam turbine applications where probe tip temperatures routinely hit 150°C, this is not a minor detail.

The integral cable uses a PTFE dielectric coaxial construction inside a stainless steel armor braid. PTFE maintains its dielectric constant across the full −35°C to +177°C range — meaning the system’s sensitivity doesn’t drift with temperature. In a refinery compressor house where ambient swings 50°C between seasons, this thermal stability keeps your vibration baseline consistent year-round without recalibration.

The armored outer jacket resists crush loads up to 500 N/cm and abrasion from metal swarf and grit. The M10 × 1.0 fine-pitch thread provides high clamping force with minimal lock nut torque, and the thread engagement length prevents self-loosening under API 670-specified vibration levels. Field MTBF across the installed base exceeds 100,000 hours in continuous service — roughly 11 years of 24/7 operation before a statistically expected failure.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Parts move from our shelf to an international flight within hours of order confirmation.

• Order cutoff: 14:00 CST — same-day dispatch for orders placed before this time
• DHL Express Worldwide: 2–3 business days to Europe, Middle East, Southeast Asia; 3–4 days to Americas and Africa
• FedEx International Priority: 2–4 business days globally; available on request
• UPS Worldwide Express: Available for US, Canada, and select EU destinations

Every shipment includes: Commercial invoice with HS code 9031.80, Certificate of Conformance (on request), packing list with part number and serial, DHL/FedEx tracking number within 2 hours of dispatch, and EAR/ECCN export screening handled on our end.

For plant shutdowns and emergency outages, contact us on WhatsApp for same-day shipping confirmation and real-time tracking. We’ve shipped to offshore platforms, remote mining sites, and island power stations — if DHL flies there, we get your part there.
