Bently Nevada 330103-08-16-10-02-00 Proximity Transducer

330103-08-16-10-02-00 — Your Turbine Is Down. Every Minute Costs You Money.

You already know the math. A compressor train offline at a petrochemical plant bleeds anywhere from $10,000 to $80,000 per hour in lost throughput, penalty clauses, and idle crew costs. The protection system tripped on a proximity fault, and now you need the probe — not a quote, not a lead time, not a promise. You need the part on a plane today.

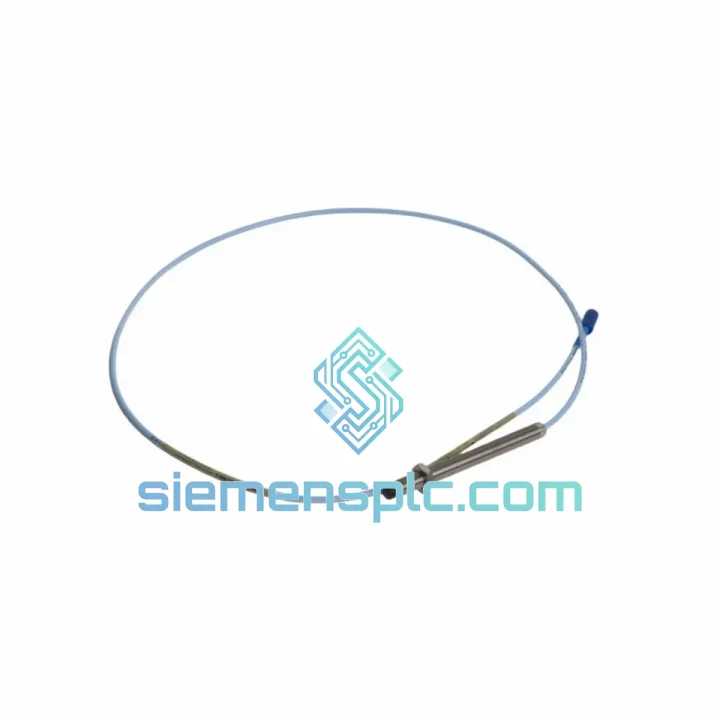

The Bently Nevada 330103-08-16-10-02-00 is a 8 mm eddy current proximity transducer from the 3300 XL Series, designed for continuous shaft vibration and position monitoring in rotating machinery. We stock this exact part number in Xiamen. Confirmed orders received before 14:00 CST ship the same day via DHL Express or FedEx International Priority. No substitutions, no grey-market sourcing — 100% genuine Bently Nevada, inspected and export-documented before it leaves our facility.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on 3300 XL systems teaches you the failure modes before the monitor does. Here is a direct breakdown of what you are likely seeing and what to do about it.

Fault pattern: OK relay open, −24 V supply confirmed at driver
Measure resistance across the probe’s 10-32 coaxial connector. An open circuit reading — typically above 500 Ω where you expect 8–12 Ω — confirms the probe coil is failed. The 330103-08-16-10-02-00 is a direct drop-in replacement. No driver reconfiguration, no monitor recalibration required provided the gap is reset correctly.

Fault pattern: Output pegged at −18 V (full-scale high)
Before condemning the probe, verify the physical gap. A gap below 0.25 mm — probe tip nearly touching the shaft — will saturate the output. Check for shaft axial movement or a loose probe locknut that allowed the probe to walk in. If gap is within spec and output remains pegged, the probe coil is shorted internally. Replace the unit.

Fault pattern: Intermittent vibration trips, no correlated process event
This is almost always the 10-32 coaxial connector. In high-vibration environments, fretting corrosion builds up at the mating surfaces and creates a micro-ohm resistance that modulates the output signal. Disconnect, clean with isopropyl alcohol and a cotton swab, re-torque to 0.9 N·m. If the fault returns within days, the integral cable has a fatigue crack near the probe body — the cable flexes at that point with every vibration cycle. Replace the probe assembly; do not attempt to repair the cable.

Fault pattern: Slow DC gap voltage drift over weeks
The probe is likely fine. A once-per-revolution DC shift — visible when you rotate the shaft by hand and watch the gap voltage — points to a magnetic soft spot or surface irregularity on the shaft. Runout compensation in the 3500 monitor can mask this during normal operation. Confirm by rotating the shaft manually and watching for a repeatable DC excursion exceeding 50 mV at the same angular position.

Replacement procedure — critical points:

1. Isolate the −24 V supply to the driver before disconnecting the probe connector. Do not rely on the monitor rack power switch alone — verify with a meter.
2. Record the existing gap voltage before removal. For most turbomachinery applications this will be between −9.0 V and −11.0 V, corresponding to a physical gap of 1.0–1.27 mm.
3. Install the 330103-08-16-10-02-00 and set the gap to reproduce the recorded voltage. The scale factor is identical at 200 mV/mil — no monitor trip point adjustment is needed.
4. Re-energise and confirm the OK relay closes within 5 seconds. A relay that stays open after 10 seconds indicates a gap or connector issue — do not proceed to restart.
5. Cable length matching is mandatory. This probe ships with a 5 m integral cable. If your installation uses a 330130-series extension cable, the combined cable length must equal exactly 5 m, 9 m, or 15 m to match the Proximitor driver’s internal calibration. A mismatched total length shifts the scale factor and will generate protection system errors that look like probe faults.
6. For non-standard target materials — Inconel 718, titanium alloys, duplex stainless — the standard AISI 4140 calibration does not apply. Contact us before ordering; we can source a material-matched calibration or advise on correction factors.

Reliability in Harsh Conditions

The 3300 XL probe is not a laboratory instrument. It is built to live inside a turbine enclosure where bearing temperatures run at 80–120 °C, oil mist is constant, and the structure transmits broadband vibration at amplitudes that would destroy a consumer-grade sensor in hours. The 330103-08-16-10-02-00 is engineered for exactly that environment.

The 316 stainless steel housing resists chloride-induced pitting corrosion — a critical property for offshore platforms and coastal installations where carbon steel housings fail within a single maintenance cycle. IP67 ingress protection means the probe survives full immersion to 1 metre depth; condensation pooling in bearing housings and wash-down events during maintenance are non-events for this unit.

The integral cable jacket is compounded to resist continuous exposure to turbine lubricating oils, hydraulic fluids, and the thermal cycling that accompanies repeated start-stop sequences. Unlike probes with field-assembled connectors, the 330103-08-16-10-02-00 uses a factory-terminated integral cable — there are no field joints to corrode or work loose under vibration.

The probe body is machined from a single piece of stainless steel with no internal mechanical joints. The coil assembly is epoxy-potted to eliminate micro-movement under vibration — the failure mechanism responsible for the majority of intermittent faults seen on lower-specification sensors. With a sensor tip temperature rating of +177 °C, this probe can be mounted directly in high-temperature steam turbine bearing housings without thermal standoffs or cooling air arrangements, simplifying installation and removing a potential failure point from the system.

Field reliability data from continuous-operation petrochemical plants consistently shows mean time between failures exceeding 8 years for genuine 3300 XL probes in standard turbomachinery service. That figure drops sharply when non-OEM substitutes are introduced — a risk no plant engineer should accept on a protection-critical measurement point.

Global Express Logistics

Our warehouse operates in Xiamen, Fujian — a primary export hub with direct freight access via Xiamen Gaoqi International Airport and Xiamen Port. For plant shutdown situations, we default to DHL Express and FedEx International Priority. Both carriers offer next-flight-out options for critical shipments when standard express transit is not fast enough.

Orders confirmed before 14:00 CST are dispatched the same business day. Every shipment includes a commercial invoice, packing list, and certificate of origin — the complete documentation set your customs broker needs to clear the goods without delay or queries.

Typical door-to-door transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 1–2 business days
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 2–3 business days
• Europe (Germany, Netherlands, UK, France, Italy): 3–4 business days
• North America (USA, Canada, Mexico): 3–5 business days
• Australia and New Zealand: 2–4 business days
• South America (Brazil, Chile, Colombia, Peru): 4–6 business days

This product carries no dangerous goods classification — no special handling surcharges, no carrier restrictions. For orders of three or more units, we consolidate into a single carton to reduce brokerage fees and simplify your receiving process. Contact us directly on WhatsApp for real-time tracking updates and customs pre-clearance coordination on time-critical shipments.
