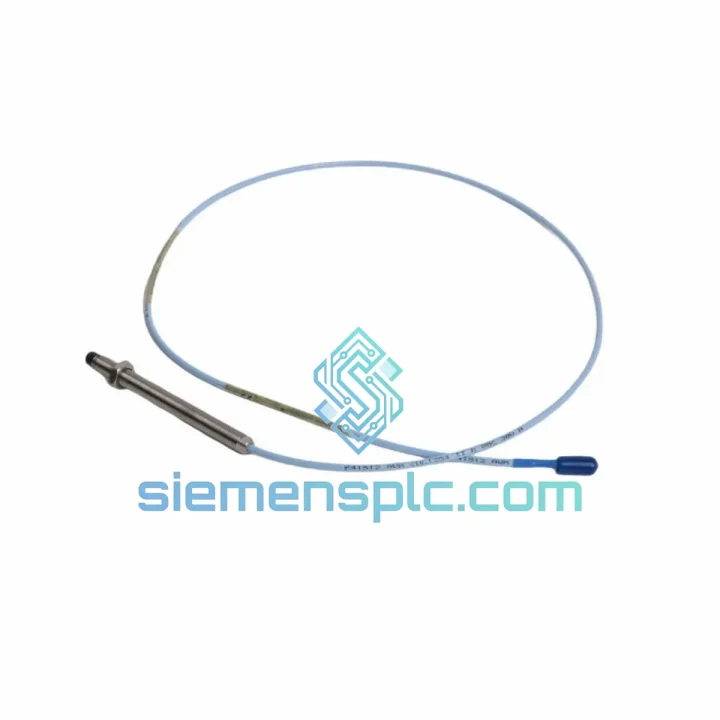

Bently Nevada 330103-08-20-10-02-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330103-08-20-10-02-00: 8mm Eddy-Current Proximity Transducer in Rotating Machinery Protection Loops

The Bently Nevada 330103-08-20-10-02-00 is a factory-calibrated 8mm eddy-current proximity transducer forming the sensing element of the 3300 XL proximity transducer system. Within a machinery protection architecture, this probe operates as the primary displacement-to-voltage converter, translating shaft radial position and dynamic vibration into a continuous DC-biased analog signal that downstream monitors — such as the Bently Nevada 3300 or 3500 series — process for alarm and trip decisions. The transducer operates on the eddy-current principle: a high-frequency oscillator (typically 1.0 MHz) drives a coil embedded in the probe tip, generating an electromagnetic field that induces eddy currents in the conductive target shaft. As the air gap between probe tip and shaft changes, the eddy-current loading on the coil changes proportionally, modulating the oscillator amplitude. The Proximitor/Oscillator driver (e.g., 330180 series) demodulates this signal and outputs a calibrated DC voltage at 7.87 V/mm (200 mV/mil) sensitivity — a figure traceable to factory calibration against a 4140 steel target per API 670 requirements.

The -08-20-10-02-00 suffix encodes the physical configuration: 8mm probe tip diameter, 2.0 m integral armored-free cable, 1.0 m extension cable, standard non-armored jacket, and standard connector with no special options. This configuration is the most widely deployed variant in steam turbine, gas turbine, and centrifugal compressor installations across petrochemical, power generation, and LNG processing facilities globally.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330103-08-20-10-02-00 probe body is machined from 316 stainless steel, providing corrosion resistance in hydrocarbon-laden atmospheres while maintaining dimensional stability across the rated temperature envelope. The coil assembly is encapsulated in a ceramic-filled epoxy compound with a dielectric strength exceeding 500 V/mm, isolating the sensing coil from ground-plane interference introduced by bearing housings or shaft grounding currents — a common noise source in variable-frequency drive (VFD) environments.

The coaxial cable between probe and Proximitor driver is a critical impedance-matched element. The 3300 XL system specifies a characteristic impedance of 50 Ω for the integral and extension cable combination. Deviation from this impedance — caused by cable substitution or damage — introduces standing-wave reflections at the oscillator frequency, shifting the apparent gap voltage by up to 3% and producing false vibration readings. The factory-matched 2.0 m + 1.0 m cable set in this part number eliminates this variable entirely.

EMC performance is achieved through a continuous shield braid covering the full cable length, terminated at the Proximitor driver chassis ground. This topology creates a Faraday shield that attenuates radiated RF interference from adjacent motor drives, welding equipment, and high-voltage switchgear — environments common in compressor trains and turbine halls. Conducted immunity is further reinforced by the driver’s internal LC filter network, which suppresses power-supply ripple below 1 mV_rms at the output, keeping the noise floor well below the 25 mV_rms threshold specified in API 670 for radial vibration channels.

The probe tip geometry — an 8mm diameter flat-face coil — is optimized for a target surface area of at least 3× the probe diameter (≥24 mm), ensuring the electromagnetic field is fully contained within the target and not distorted by shaft edges or keyways within the linear measurement range. For shaft diameters below 75 mm, a curvature correction factor must be applied per the Bently Nevada calibration procedure, as the curved target surface reduces effective sensitivity by up to 8%.

System Integration Benefits

• Direct API 670 compliance: The 330103-08-20-10-02-00 is factory-calibrated to API 670 sensitivity tolerances (±0.5%), eliminating the need for field calibration loops and reducing commissioning time on new machinery protection systems by an estimated 30–40% compared to generic eddy-current probes requiring site-specific calibration.
• Deterministic signal latency: The eddy-current measurement chain from probe to Proximitor output introduces a signal propagation delay of less than 50 µs, well within the 1 ms response budget required for overspeed and high-vibration trip functions in API 670-compliant systems. This ensures trip relay actuation occurs before shaft displacement exceeds the danger threshold.
• Seamless 3300/3500 monitor integration: The output voltage range (−1 to −17 VDC) maps directly to the input scaling of Bently Nevada 3300 and 3500 series monitor cards without signal conditioning. No external resistor networks or signal isolators are required, reducing panel wiring complexity and potential failure points.
• System 1 software compatibility: When paired with a 3500 series rack, the 330103 probe data streams natively into Bently Nevada System 1 (v5.x and above) and Orbit 60 platforms, enabling trend analysis, waveform capture, and alarm management without additional driver configuration.
• DCS/PLC analog output compatibility: The Proximitor driver’s 4–20 mA retransmission output (available via signal conditioner) interfaces directly with Siemens S7-300/400/1500 analog input modules (e.g., SM 331, AI 8×13Bit), Emerson DeltaV, Honeywell Experion, and ABB 800xA — covering the majority of DCS platforms deployed in process industries.
• Diagnostic transparency: The −24 VDC supply current draw of the Proximitor driver (typically 35 mA) provides a passive health indicator: a current deviation of ±5 mA from baseline indicates cable damage, probe coil degradation, or driver fault — detectable with a standard clamp meter during routine maintenance rounds without interrupting the measurement loop.
• Hazardous area deployment: System-level ATEX and FM certifications permit installation in Zone 1/Division 1 classified areas (gas groups IIA, IIB) when used with the appropriate Zener barrier or galvanic isolator, covering the majority of offshore platform and onshore refinery applications.
• Reduced spare-parts inventory complexity: The 330103-08-20-10-02-00 is the highest-volume 8mm variant in the 3300 XL family, stocked by authorized distributors globally. Its standardized cable lengths (2.0 m + 1.0 m) cover the majority of bearing-to-junction-box distances in standard turbomachinery skid layouts, allowing a single spare-parts line item to cover multiple machine trains.

Quality Assurance & Global Logistics

Every unit of the 330103-08-20-10-02-00 supplied by siemensplc.com is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol before dispatch from Xiamen, China.

Inspection protocol: Visual examination for probe tip damage, cable jacket integrity, and connector pin condition. Dimensional verification of probe tip diameter (8.00 mm ±0.05 mm) and cable length. Functional verification of Proximitor output voltage at a known gap distance using a calibrated test fixture. Continuity and insulation resistance check on the coaxial cable (IR >100 MΩ at 500 VDC).

Packaging: Anti-static foam-lined carton with humidity indicator card and desiccant pack. Probe tip protected by a machined plastic cap. Each unit ships with a Certificate of Conformance (CoC) and, where available, original Bently Nevada calibration documentation.

Logistics from Xiamen, China: In-stock units ship within 1–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — typical transit times of 3–5 business days to North America and Europe, 2–4 business days to Southeast Asia and the Middle East. For urgent plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST. Export documentation including commercial invoice, packing list, and HS code 9031.80.9090 classification is prepared as standard. ECCN classification and end-user statement support available on request for controlled-destination shipments.

Warranty: 12 months from date of shipment, covering manufacturing defects and calibration drift beyond ±1% of nominal sensitivity. Warranty claims are processed within 5 business days of receipt of the returned unit.
