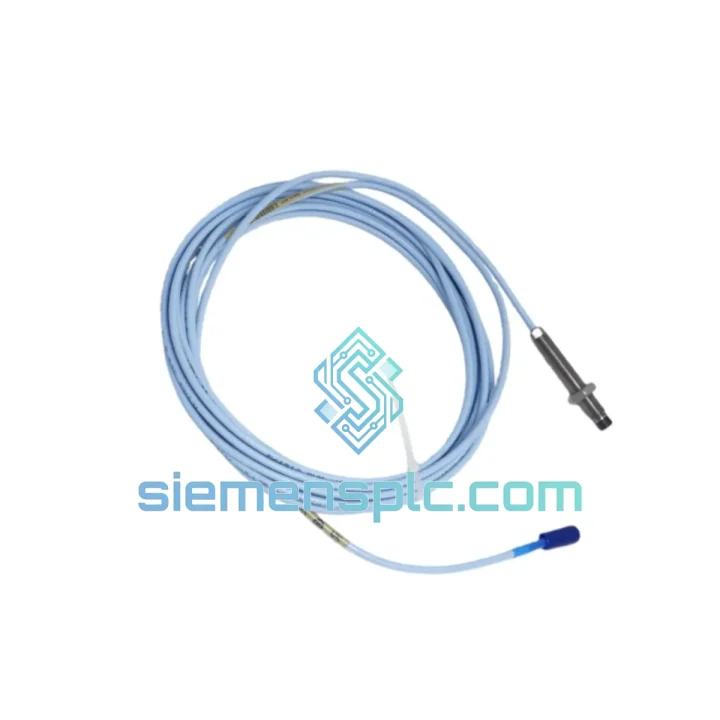

Bently Nevada 330103-10-18-50-01-00 Proximity Probe – 3300 XL

Bently Nevada 330103-10-18-50-01-00: Eddy Current Proximity Probe in Rotating Machinery Protection Loops

The 330103-10-18-50-01-00 is an 8 mm eddy current proximity probe manufactured by Bently Nevada (Baker Hughes) as part of the 3300 XL Proximity Transducer System. Within a machinery protection architecture, this probe occupies the first stage of the measurement chain — converting mechanical gap displacement between the probe tip and a rotating shaft into a proportional DC voltage signal. That signal feeds downstream into the 3300 XL driver/oscillator-demodulator, then into the monitoring rack, where it drives vibration alarm and trip logic in real time.

The part number suffix encodes the physical configuration: -10 (probe body length 10 mm), -18 (18-inch integral cable), -50 (5.0 m total system cable), -01-00 (standard coaxial connector, no armor). This specificity matters in field replacement scenarios — substituting an incorrect suffix variant alters the calibrated sensitivity curve and invalidates the system’s linear range without triggering an obvious fault, a failure mode that has caused missed vibration events in critical machinery.

At siemensplc.com, this probe is stocked and dispatched from Xiamen, China, with full traceability documentation. Procurement engineers sourcing drop-in replacements for existing 3300 XL installations will find the unit fully interchangeable with the OEM-specified assembly.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 330103-10-18-50-01-00 is based on the impedance-loading effect of eddy currents. The probe coil, driven by the 330180 oscillator at approximately 1 MHz, generates a high-frequency electromagnetic field that penetrates the surface of the conductive target shaft. As the gap closes, induced eddy currents increase, loading the coil and reducing its effective inductance. The oscillator-demodulator in the driver detects this impedance shift and converts it to a proportional DC output voltage — a fundamentally passive, non-contact measurement with no moving parts at the sensing element.

EMC Design: The coaxial cable construction provides inherent shielding against radiated electromagnetic interference. The shield is grounded at the driver end only (single-point grounding), preventing ground loop currents that would appear as low-frequency noise on the output signal. In environments with high-power variable-frequency drives or arc furnaces, this single-point shield topology is the primary defense against common-mode interference coupling into the measurement chain.

Thermal Stability: The probe coil is wound on a ceramic bobbin with a low thermal coefficient of inductance. Over the –35 °C to +177 °C operating range, sensitivity drift is maintained within ±0.5% of nominal — a specification that matters in steam turbine bearing housings where probe tip temperatures can cycle significantly between cold startup and full-load operation.

Target Material Sensitivity: The 200 mV/mil calibration is referenced to AISI 4140 steel. Shafts machined from austenitic stainless steel (e.g., 316L), Inconel 718, or titanium alloys exhibit different electrical conductivity and magnetic permeability, shifting the effective sensitivity by 5–25%. For non-standard target materials, Bently Nevada publishes material correction factors, and field recalibration against the actual shaft material is required to maintain measurement accuracy within API 670 tolerances.

Cable Impedance Matching: The total system cable length (probe integral cable + extension cable) must equal the calibrated system length — in this case, 5.0 m. Deviating from this length alters the transmission line impedance seen by the oscillator, shifting the operating point on the sensitivity curve. Field technicians who splice or shorten cables to fit a tight installation introduce a systematic measurement error that is not detectable by the monitoring rack’s self-test routines.

System Integration Benefits

• Direct drop-in compatibility with 3300 XL racks: The 330103-10-18-50-01-00 connects to any 3300 XL monitoring card without rack reconfiguration, preserving existing alarm and trip setpoints.
• DC-coupled output enables static position measurement: Unlike AC-coupled sensors, the DC output captures both dynamic vibration (AC component) and slow shaft centerline migration (DC drift), supporting both vibration and position monitoring from a single channel.
• 10 kHz bandwidth covers all API 670 measurement requirements: Subsynchronous instabilities, 1X and 2X running speed components, and high-frequency blade-pass events all fall within the probe’s flat response band.
• Non-contact operation eliminates sensor wear: There is no mechanical contact between probe and shaft. Sensor output does not degrade with shaft rotational speed or accumulated operating hours, removing a common failure mode in contact-type displacement sensors.
• Coaxial cable construction provides deterministic signal integrity: The 50-ohm coaxial transmission line maintains consistent signal propagation delay and impedance across the full cable length, supporting accurate phase measurements for orbit plot analysis.
• Wide temperature range supports hot-standby spare strategy: A single probe part number covers both ambient-temperature pump applications and high-temperature turbine bearing housings, reducing the number of distinct spare part numbers required in a plant’s critical spares inventory.
• API 670 compliance simplifies machinery protection system audits: Using OEM-specified components with traceable documentation satisfies the documentation requirements of API 670 Section 5 without additional engineering justification.
• Matched sensitivity to 330180 driver eliminates recalibration on replacement: When replacing a failed probe with an identical 330103-10-18-50-01-00, the monitoring rack’s calibration constants remain valid. No rack card adjustment or system re-commissioning is required, reducing mean time to repair (MTTR) in a forced outage scenario.

Quality Assurance & Global Logistics

Every 330103-10-18-50-01-00 unit dispatched from siemensplc.com undergoes a structured pre-shipment verification protocol. Visual inspection covers probe tip condition, cable jacket integrity, connector pin geometry, and label authenticity — including part number, date code, and revision marking cross-referenced against Bently Nevada documentation. Electrical verification measures probe coil DC resistance and inductance against published OEM tolerance bands. Where test equipment permits, a functional gap-voltage sweep is performed against a calibrated AISI 4140 steel target to confirm sensitivity within ±5% of 200 mV/mil.

Shipments originate from Xiamen, Fujian Province — a designated national-level free trade zone with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen, one of China’s top-ten container ports by throughput. This logistics infrastructure supports:

• Air freight to major industrial hubs: Singapore, Dubai, Rotterdam, Houston, and Sydney typically within 3–5 business days door-to-door.
• Express courier (DHL/FedEx/UPS): Available for single-unit urgent orders with tracking from dispatch to delivery.
• Sea freight consolidation: For multi-unit or multi-line orders where air freight cost is not justified, LCL consolidation from Xiamen port offers competitive transit times to Southeast Asia, the Middle East, and Europe.
• Customs compliance: All exports are declared through Xiamen Customs under the correct HS code with accurate commercial invoice and packing list documentation, minimizing clearance delays at destination ports.
• Multi-currency payment: USD, EUR, HKD, and CNY accepted via T/T bank transfer and major payment platforms.

A 12-month warranty covers defects in materials and workmanship from the shipment date. Warranty claims are processed with a replacement unit dispatched within 5 business days of confirmed fault diagnosis. Certificate of Conformance (CoC) and test records are included as standard with every shipment.
