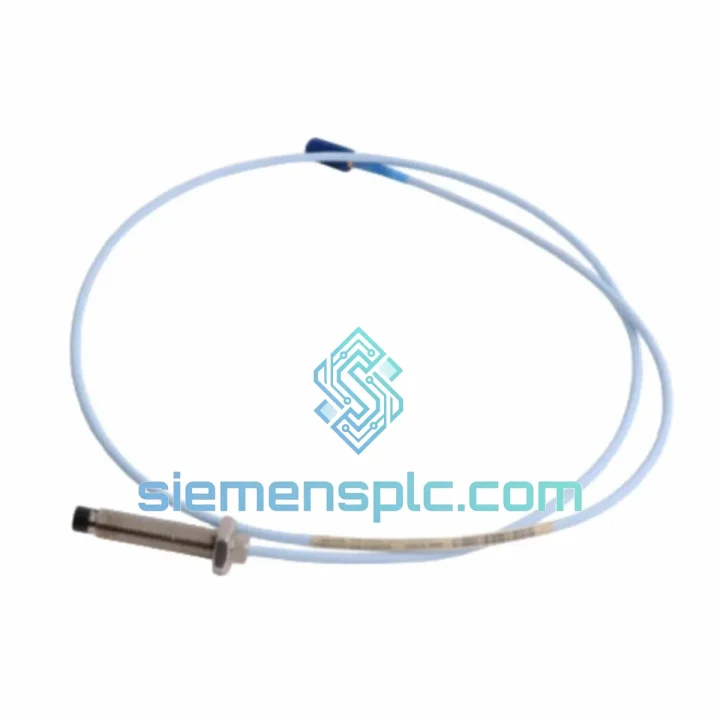

Bently Nevada 330103-13-23-05-02-00 Proximity Probe

330103-13-23-05-02-00 — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine or compressor sits idle because of a failed proximity probe costs real money — production losses, penalty clauses, emergency labor. The Bently Nevada 330103-13-23-05-02-00 is a 3300 XL 8mm eddy current proximity probe, and we stock it in Xiamen ready to move the same day you call. No waiting on factory lead times. No chasing distributors. One call, one shipment, machine back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 330103-13-23-05-02-00 in the field is straightforward if you know the traps. Here is what ten years of site work teaches you:

1. Gap Setting — Get This Wrong and the Probe Is Useless
The 3300 XL 8mm system requires an air gap of 1.0 mm ± 0.1 mm at the probe tip to the target shaft surface for the output to sit at the nominal -10 VDC bias point. Use a non-metallic feeler gauge. Do not trust the old probe’s thread depth — shaft wear and bracket corrosion shift the reference. Always verify with a calibrated voltmeter at the Proximitor® output before you close the bearing housing.

2. Extension Cable Matching — Part Number Matters
The 330103-13-23-05-02-00 ships with a 5 m integral cable. If your installation requires an extension cable, it must be a 330130-XX-XX series matched cable. Mixing cable lengths without recalibrating the Proximitor® driver shifts the system sensitivity and invalidates your vibration alarm setpoints. The total probe + extension cable length must match the driver’s calibration certificate.

3. Common Fault Codes on the 3500 Monitor

• OK LED off / Not OK relay tripped: First check the bias voltage at the Proximitor® output. If it reads 0 V or rail voltage, the probe coil is open or shorted — replace the probe. If bias is present but out of range (-1 V or -17 V), recheck gap setting before condemning the probe.
• Intermittent vibration spikes: 90% of the time this is a loose connector at the Proximitor® input or a cracked cable jacket near the probe body. Flex the cable while watching the monitor — if the reading jumps, the cable is the culprit, not the probe tip.
• High static reading after replacement: The new probe’s coil inductance may differ slightly from the old unit. Re-zero the gap and re-verify the Proximitor® output at the known gap distance. Do not adjust alarm setpoints to compensate — fix the gap.
• Noise on the vibration channel: Check grounding. The probe housing must be grounded through the machine casing. Floating ground on the Proximitor® enclosure introduces 50/60 Hz interference that looks like real vibration.

4. Firmware and Driver Compatibility
The 330103-13-23-05-02-00 is compatible with all revisions of the 3300 XL Proximitor® driver. No firmware update is required on the 3500 monitor rack when replacing like-for-like. However, if you are migrating from an older 3300 (non-XL) system, the sensitivity constant in the monitor channel configuration must be updated from 100 mV/mil to 200 mV/mil — failure to do this will cause your vibration readings to read exactly half of actual shaft displacement.

Reliability in Harsh Conditions

The 330103-13-23-05-02-00 is not a lab instrument. It is built to survive the environments that destroy ordinary sensors. The 316L stainless steel housing is hermetically sealed — no ingress path for process gas, steam, or condensate. The integral armored cable withstands continuous flexing and resists hydrocarbon fluids, lubricating oils, and cleaning solvents without jacket degradation.

Vibration resistance is not a marketing claim here. The probe body is designed to operate continuously in environments with broadband vibration up to 20 g RMS — the kind of background vibration present on a gas turbine skid or a high-speed centrifugal compressor. The coil assembly is potted and mechanically isolated from the housing threads, so the measurement is not corrupted by structural resonance of the probe body itself.

Temperature performance is equally uncompromising. At -35°C, the probe starts and measures correctly without warm-up drift. At +177°C — the kind of ambient temperature found near steam turbine bearing housings — the sensitivity remains within factory specification. There is no derating curve to manage in the field. The probe either meets spec or it does not, and the 3300 XL system is designed to tell you immediately if it does not.

Humidity and condensation are non-issues. The hermetic seal is rated to withstand full immersion. In tropical plant environments where condensation forms inside junction boxes overnight, the probe continues to deliver clean, stable output without the baseline drift that plagues unsealed sensors.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. When you place an urgent order before 14:00 CST, the unit is picked, packed, and handed to the carrier the same afternoon.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–8 business days via DHL Express
• Africa (South Africa, Nigeria, Egypt): 5–7 business days via DHL Express

Every shipment includes a full commercial invoice, packing list, certificate of origin, and HS code declaration (HS: 9031.80) for smooth customs clearance. For buyers in countries with strict import controls on industrial electronics, we can prepare additional documentation — FORM E for ASEAN preferential tariff, EUR.1 for EU trade agreements, or a manufacturer’s declaration of conformance — on request at no additional charge.

Tracking numbers are sent within 2 hours of carrier pickup. For critical shutdowns where every hour counts, we can arrange airport-to-airport freight with local customs broker coordination at the destination — contact us before ordering to set this up.
