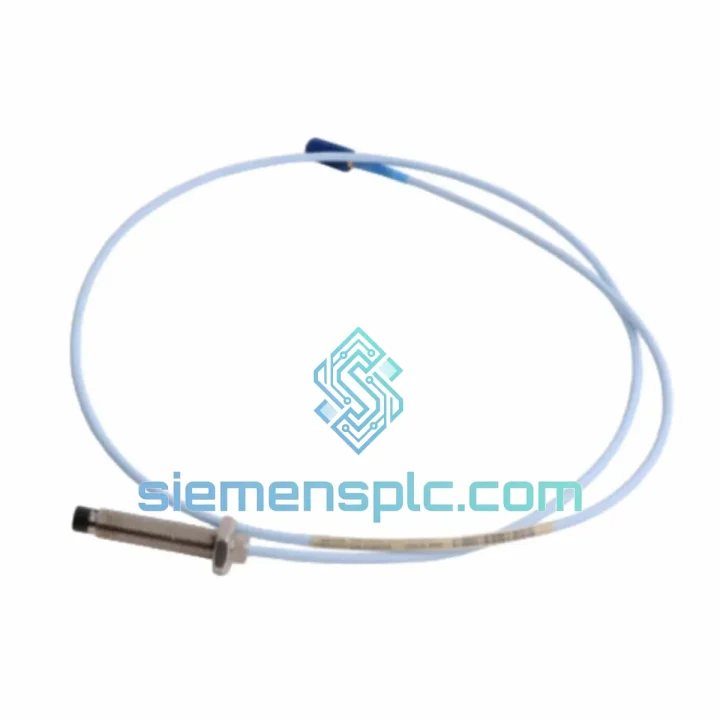

Bently Nevada 330103-15-23-05-02-CN Proximity Probe

330103-15-23-05-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour your turbine, compressor, or pump sits idle costs real money. A failed proximity probe in a Bently Nevada 3300 XL or 3500 Series monitoring chain is not a scheduled maintenance event — it is an emergency. We stock the Bently Nevada 330103-15-23-05-02-CN precisely for this moment. Verified original, tested before dispatch, and moving via DHL Express or FedEx International Priority within 24 hours of order confirmation. No lead-time games, no substitution surprises.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 330103-15-23-05-02-CN fails in predictable ways. Here is what field experience actually looks like:

Fault Code: High Vibration / Spurious Trip
Before condemning the probe, check the proximitor output voltage at the OK relay terminal. A reading outside −10 VDC ± 0.5 V at the nominal 1.0 mm gap indicates either a damaged probe tip or a broken coil. Swap the probe first — it is the cheapest component in the measurement chain.

Fault Code: NOT OK / Probe Fault on 3500/40M or 3500/42M
This almost always means an open circuit in the integral cable or a shorted coil. Measure resistance across the probe connector pins: nominal is 7–9 Ω. Anything outside that range — replace the probe. Do not attempt to repair the cable; the coil impedance is factory-matched to the proximitor.

Replacement Procedure — Step by Step

1. Isolate the monitor channel at the 3500 rack. Place the channel in bypass mode to prevent a spurious trip during swap.
2. Record the existing gap voltage before removal. Target: −10 VDC ± 0.5 V at 1.0 mm nominal gap.
3. Remove the locknut and back the probe out carefully. Note the thread engagement depth — typically 12–15 mm for a 1.0 mm gap on a standard bearing housing.
4. Install the replacement 330103-15-23-05-02-CN. Thread in until the gap voltage reads within spec. Do not rely on thread count alone — gap voltage is the ground truth.
5. Torque the locknut to 2.3 N·m (20 in·lb). Over-torquing shifts the gap.
6. Verify OK relay status on the 3500 rack. Remove bypass. Confirm vibration baseline matches pre-fault trend data.
7. The -CN connector is a Chinese market variant. If your extension cable uses a standard -00 connector, you will need a CN-to-00 adapter or re-termination. Confirm before installation — do not force mismatched connectors.

Critical Configuration Note — Matched Set Rule: The 330103 probe, 330130 extension cable, and 330180 proximitor are factory-calibrated as a set. Replacing only the probe without re-verifying the full chain scale factor introduces measurement error. Always perform a gap calibration check after any component swap. If the proximitor was also damaged (lightning strike, power surge), replace the full set.

Common Mistake: Engineers sometimes order the -00 variant when they need the -CN. The probe body is mechanically identical, but the connector pinout differs. Verify your extension cable connector before ordering. When in doubt, send us a photo of the existing connector — we will confirm the correct suffix.

Reliability in Harsh Conditions

The 330103 series was engineered for environments that destroy lesser sensors. The probe housing is 316 stainless steel with hermetic epoxy sealing at the cable entry point — the most common failure location on competing designs. Bently Nevada’s coil winding process uses a proprietary encapsulant that maintains dimensional stability from cryogenic LNG service to high-temperature steam turbine applications.

Vibration resistance is not a marketing claim here. These probes are mounted directly on bearing housings where broadband vibration levels routinely exceed 10 g RMS. The M8 × 1.0 thread and locknut system, when properly torqued, maintains gap stability within ±0.02 mm over thousands of operating hours. In offshore and coastal installations — including facilities along China’s southeastern coast — the stainless housing resists salt fog corrosion that would pit carbon steel alternatives within months.

Temperature cycling is the other silent killer. Turbine startups and shutdowns create thermal gradients that fatigue solder joints and connector contacts. The CN connector on this variant uses gold-plated contacts rated for 500+ mating cycles, maintaining contact resistance below 10 mΩ throughout its service life. Units in our stock are stored in climate-controlled conditions at 20–25 °C, 40–60% RH — not in an unventilated container yard.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian, China — a major international cargo hub with direct DHL and FedEx gateway access. Here is how your order moves:

• Order Confirmed → Same-Day Packing: Orders confirmed before 14:00 CST are packed and labeled the same business day. Export documentation (commercial invoice, packing list, HS Code 9031.80) is prepared in parallel.
• Day 1 → Carrier Pickup: DHL Express or FedEx International Priority collects from our facility. Tracking number issued to your email within 2 hours of pickup.
• Day 2–3 → Destination Country: Most Southeast Asian, Middle Eastern, and European destinations receive shipments within 2–3 business days from Xiamen. North America typically 3–4 business days.
• Customs Clearance: We pre-declare all shipments with accurate HS codes and commercial values. ATEX-certified units ship with full certification documentation to avoid customs holds in EU and UK ports.
• Emergency Air Freight: For genuine plant-down situations, contact us directly via WhatsApp. We can arrange same-day courier dispatch for confirmed orders received before 12:00 CST.

We do not consolidate emergency orders into economy freight to save margin. If you need it fast, we ship it fast — and we absorb the coordination cost of getting it right the first time.
