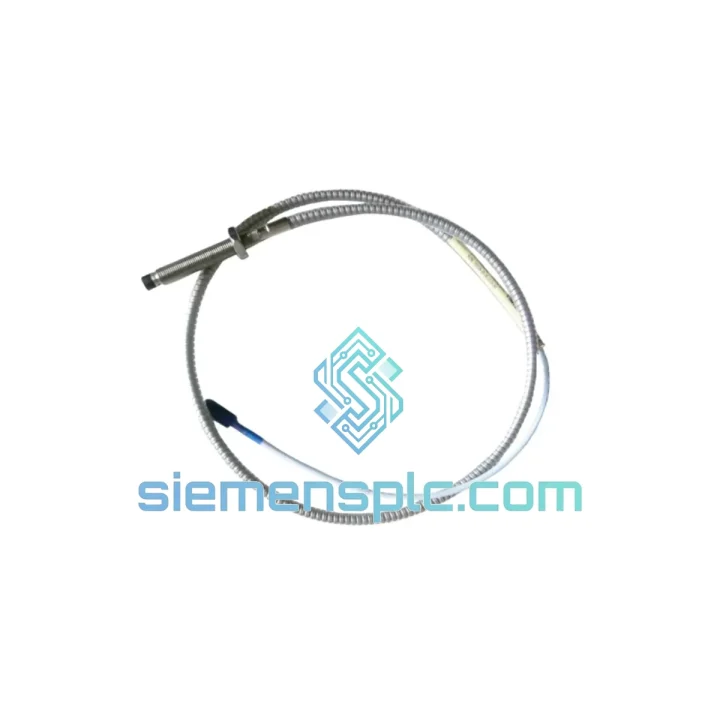

Bently Nevada 330104-00-05-10-02-CN Proximity Transducer

330104-00-05-10-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour a turbine, compressor, or pump sits idle costs real money. When your Bently Nevada 330104-00-05-10-02-CN proximity transducer fails, you don’t have time for a 6-week OEM lead time. We stock this unit in Xiamen and can have it on a DHL Express flight within 24 hours of order confirmation. That’s the difference between a 2-day outage and a 3-week production loss.

This is a 100% original Bently Nevada 3300 XL 8 mm eddy-current proximity transducer — not a clone, not a grey-market pull. Full traceability, original packaging where available, and a 12-month warranty. If your machinery protection system is down, this is the call you make first.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on rotating machinery, here are the failure modes I see most often with the 330104 series — and what to check before you even open the new box:

1. Confirm the fault is the probe, not the Proximitor or cable. A dead or drifting gap voltage (should be −10 VDC ±0.5 V at nominal 50-mil gap) that doesn’t recover after reseating the connector almost always points to the probe. But if you’re seeing intermittent OK/NOT OK trips, check the extension cable first — the 330130 series connectors corrode in wet environments and are a far cheaper fix.

2. Driver suffix mismatch is the #1 installation error. The -02 suffix on this part number designates the 3300 XL NSv Proximitor. If your rack has an older 3300 RAM Proximitor, you need the -01 suffix variant. Plugging a -02 probe into a RAM driver will give you a constant NOT OK alarm — the system isn’t broken, the part number is wrong.

3. Gap setting after installation. Target gap for this probe on AISI 4140 steel is 50 mil (1.27 mm), corresponding to −10 VDC output. Use a non-ferrous feeler gauge or a calibrated gap tool. Do not rely on the monitor’s OK/NOT OK indicator alone — verify the DC gap voltage at the Proximitor output terminal with a multimeter before closing up.

4. Non-standard shaft materials require a correction factor. Factory calibration assumes AISI 4140. If your shaft is 316 stainless, Inconel, or titanium, the sensitivity shifts by 5–20%. Apply the Bently Nevada material correction table (available in the 3300 XL installation manual, Appendix B) or request our correction sheet.

5. CN suffix = CCC approval, not a different electrical spec. The CN suffix is purely a regulatory designation for the Chinese market. Electrically and mechanically, this unit is identical to the standard -00 suffix version. No firmware changes, no re-scaling required.

Common fault codes on the 3500 rack when this probe fails:

• NOT OK (solid): Gap voltage out of range — probe open circuit, cable break, or gap too large/small.
• NOT OK (flashing): Intermittent signal — connector corrosion or cable damage. Wiggle-test the extension cable while watching the gap voltage.
• High vibration alarm with no process change: Probe tip contamination (oil sludge, metallic debris). Clean with isopropyl alcohol and re-gap before condemning the probe.
• Erratic gap reading after maintenance: Probe not fully threaded into the bracket — torque to 2.3 N·m and re-verify gap.

Reliability in Harsh Conditions

The 330104-00-05-10-02-CN is built for environments that would destroy consumer-grade sensors in weeks. The probe body is machined from stainless steel with a PEEK tip housing — chemically resistant to the hydrocarbon condensates, lube oil mist, and cleaning solvents common in turbine bearing pedestals. The IP67 rating means it survives direct water jet washdowns during maintenance without ingress.

Vibration endurance is rated to 20 g, 10–2,000 Hz — well above the structural vibration levels seen in most compressor trains. The integral cable uses a stainless-steel armored braid that resists abrasion from rotating components and maintains signal integrity even when routed through high-EMI environments near VFDs and large motors.

Thermal performance is equally robust. The probe operates continuously at +177 °C — covering steam turbine bearing housings that routinely run at 120–150 °C ambient. The Proximitor electronics are rated to +65 °C, which is why they’re always mounted in a remote junction box, not on the machine itself. If you’re seeing Proximitor failures in a hot environment, check your enclosure ventilation before blaming the electronics.

Every unit we ship has passed incoming inspection: dimensional check on the probe tip, output linearity verification across the full 80-mil range, and insulation resistance test on the cable. We don’t ship units that have been sitting in uncontrolled storage — all stock is maintained in a climate-controlled warehouse at 20–25 °C, 40–60% RH.

Global Express Logistics

Our Xiamen warehouse is 35 minutes from Xiamen Gaoqi International Airport (XMN), a major DHL and FedEx hub with daily freighter departures to Europe, North America, Southeast Asia, and the Middle East. This is not a coincidence — it’s why we operate from here.

Standard express timeline (door-to-door):

• Southeast Asia (SG, MY, TH, ID): 2–3 business days via DHL Express
• Europe (DE, NL, FR, UK): 3–5 business days via FedEx International Priority
• North America (US, CA): 3–5 business days via DHL Express Worldwide
• Middle East (AE, SA, QA): 3–4 business days via FedEx International Priority
• Australia / NZ: 3–4 business days via DHL Express

Orders confirmed before 14:00 CST ship same day. We prepare full export documentation: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 9031.80). For projects requiring ATA Carnet, EUC, or end-user certificates, contact us 24 hours in advance. We support DDP, DAP, and EXW Incoterms — if your procurement team needs a specific Incoterm for customs clearance, just specify it on your PO.

For genuine emergencies — plant shutdown, safety system offline — call or WhatsApp us directly. We have handled Saturday pickups and after-hours DHL bookings for customers who couldn’t wait until Monday morning. That’s not a marketing claim; it’s what field support actually looks like.
