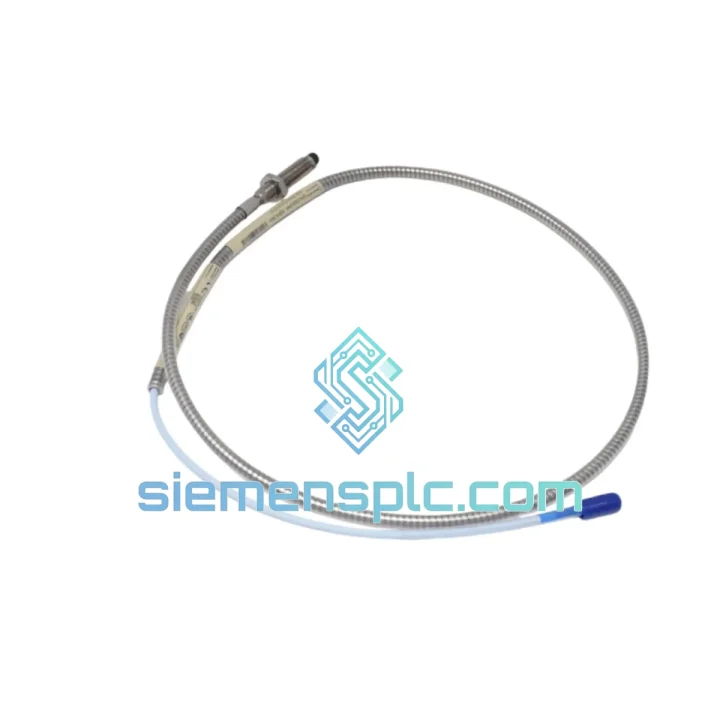

Bently Nevada 330104-00-12-10-01-00 Proximity Probe

330104-00-12-10-01-00 — Stop the Clock on Your Downtime

Every hour your turbine, compressor, or pump sits idle because of a failed proximity probe is money bleeding out of your operation. The Bently Nevada 330104-00-12-10-01-00 — an 8mm eddy-current probe from the battle-tested 3300 XL Proximity Transducer System — is one of the most common single points of failure in rotating machinery protection systems. When it goes, your 3500 monitor trips, your machine shuts down, and your maintenance team is on the phone hunting stock. We keep it on the shelf in Xiamen. You get it fast.

This is not a catalog listing. This is a field-ready unit, inspected, packaged, and staged for same-day dispatch. Whether you’re running an LNG train in the Middle East, a steam turbine in Southeast Asia, or a centrifugal compressor in Europe, we’ve shipped to your region before — and we know what “urgent” actually means on a plant floor.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After a decade of field calls, here’s what actually goes wrong with the 330104-00-12-10-01-00 and what to check before you pull the trigger on a replacement order:

Fault Code: OK LED off / GAP voltage out of range (3500 monitor)
This is the most common call. Before condemning the probe, check the gap voltage at the driver output. Nominal gap for a 3300 XL 8mm probe on AISI 4140 steel is −10.0 VDC ± 0.5 V at the recommended 1.0 mm gap. If you’re reading −24 V (rail voltage), the probe cable is open — likely a broken coaxial at the connector or a crushed armor section near the probe tip. If you’re reading 0 V, the driver is not powering up or the cable is shorted.

Fault Code: High vibration / 1X amplitude spike at startup
Don’t assume the probe is bad. Check the probe tip for oil contamination or metallic debris — eddy-current probes are sensitive to conductive material in the gap. Clean the tip with isopropyl alcohol and re-gap. Also verify the probe is not loose in its holder; a probe that has backed out even 0.1 mm will shift your gap voltage and trigger a false high-vibration alarm.

Replacement procedure — field checklist:

• Record the existing gap voltage before removal (document your baseline)
• Confirm the replacement probe is the same cable length (1.2 m for -12- suffix) — mixing cable lengths without recalibration will shift scale factor
• The 330104-00-12-10-01-00 is a matched-system probe: it must be used with a 3300 XL extension cable (330130 series) and a 3300 XL 8mm driver (330180 series). Do not mix with 5mm or 11mm system components
• After installation, set gap to 1.0 mm (−10.0 VDC nominal). Use a non-magnetic feeler gauge or a calibrated gap tool
• No firmware update or channel reconfiguration is required when replacing a like-for-like 330104-00-12-10-01-00 — the 3500 monitor channel settings remain valid
• If replacing with a different suffix variant (e.g., high-temp -01-05), verify the scale factor matches the driver configuration in the 3500 rack
• Perform a static calibration check before returning the machine to service — do not skip this step

Common misdiagnosis: Intermittent high-vibration trips that clear on reset are frequently blamed on the probe but are actually caused by a failing extension cable connector (BNC or integral coaxial). Flex the cable near both ends while monitoring gap voltage — any movement-induced voltage shift points to the cable, not the probe body.

Reliability in Harsh Conditions

The 3300 XL 8mm probe was not designed for a lab. It was designed for the inside of a turbine enclosure where temperatures swing from cold startup to sustained 100°C+ bearing housing temperatures, where lubricating oil mist coats every surface, and where the machine vibrates at frequencies that would shake apart lesser sensors within weeks.

The 330104-00-12-10-01-00 carries an operating temperature rating of −35 °C to +121 °C on the probe body, with the armored integral cable rated to the same range. The coaxial armor is stainless-clad, resistant to the petroleum-based lubricants and cleaning solvents common in turbomachinery environments. The probe tip is sealed against ingress — there are no moving parts, no wear surfaces, and no consumables. A correctly installed and gapped 330104 probe routinely runs for 5–10 years between replacements in normal service.

ATEX and IECEx certifications cover hazardous area installations — the probe is rated for use in Zone 1 and Zone 2 environments when installed per the Bently Nevada system drawing. This matters in offshore platforms, gas processing facilities, and chemical plants where the proximity transducer system must be intrinsically safe or explosion-proof by design.

Vibration immunity is inherent to the eddy-current operating principle — unlike piezoelectric accelerometers, there is no resonant frequency to worry about in the probe itself. The probe body is solid-state. What fails in the field is almost always the cable, the connector, or the gap setting — not the probe core. When the probe core does fail, it fails definitively (open or short circuit), making fault diagnosis straightforward.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the most active export ports on the southeast coast, with daily DHL Express and FedEx International Priority consolidations. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day packaging and handoff to carrier
• DHL Express / FedEx IP transit times: Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days
• Documentation: Commercial invoice, packing list, and certificate of origin issued same day. ATEX/IECEx documentation included where applicable
• Customs: HS Code 9031.80 (precision instruments for measuring). We handle export classification — you handle import clearance at your end. We can advise on typical duty rates for your country on request
• Tracking: AWB number sent via email and WhatsApp within 2 hours of dispatch
• Insurance: Full declared-value cargo insurance available on request for high-value shipments

We have shipped the 330104-00-12-10-01-00 to petrochemical plants in Saudi Arabia, power stations in Vietnam, paper mills in Scandinavia, and mining operations in Australia. The logistics process is the same every time: fast, documented, and traceable. When your plant manager is asking for an ETA every two hours, you need a supplier who can give you a real tracking number — not a promise.
