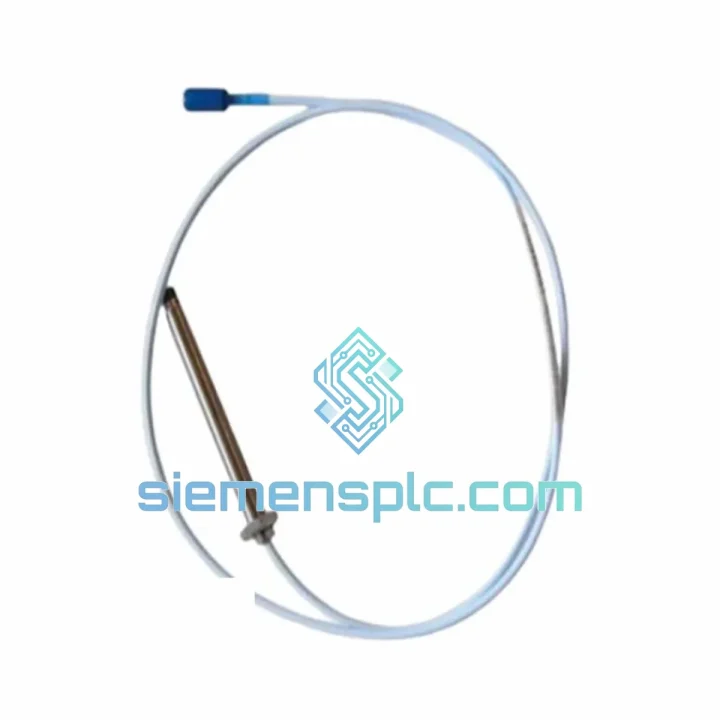

Bently Nevada 330104-00-15-10-01-CN Proximity Transducer – 3300 XL Series

Bently Nevada 330104-00-15-10-01-CN — 8 mm Eddy-Current Proximity Transducer System for Continuous Shaft Monitoring

The Bently Nevada 330104-00-15-10-01-CN is a matched three-component proximity transducer system comprising an 8 mm eddy-current probe, a 15 ft (4.57 m) integral armored cable, a 10 ft (3.05 m) extension cable, and a Proximitor® driver module. The system operates on the eddy-current principle: a high-frequency oscillator (typically 1.0 MHz) drives a coil wound at the probe tip, generating an electromagnetic field that induces eddy currents in any conductive target within the linear measurement range. The resulting energy loss is demodulated into a DC-proportional output voltage, delivering a continuous, non-contact measurement of shaft radial displacement, axial position, or differential expansion with sub-micron resolution.

Within a rotating-machinery protection architecture, this transducer occupies the first link in the signal chain: raw mechanical displacement → calibrated voltage → monitor card → trip relay. The accuracy and stability of every downstream decision — alarm setpoints, trip thresholds, trend analysis — depends directly on the metrology integrity of the probe-cable-driver assembly. The 330104-00-15-10-01-CN is factory-calibrated as a matched set against AISI 4140 steel targets, ensuring the published sensitivity of 200 mV/mil (7.87 V/mm) is traceable to the specific probe, cable, and driver shipped together. Field substitution of any single component without recalibration introduces systematic error that cannot be corrected by monitor gain adjustments alone.

The CN-suffix connector variant is engineered for the Chinese domestic market, where CN-type coaxial terminations are the prevailing installation standard on turbine pedestals, compressor trains, and pump bearing housings. Electrically, the CN variant is identical to the international -00 connector variant; the distinction is purely mechanical, eliminating the need for field-fabricated adapter pigtails that introduce impedance discontinuities and potential moisture ingress points.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Matched-System Calibration Architecture: Unlike discrete sensors that are calibrated individually, the 330104-00-15-10-01-CN is calibrated as a three-component matched set. The Proximitor driver compensates for the specific cable capacitance and probe coil inductance of the paired components. This approach eliminates the ±5–8% sensitivity drift that occurs when mixing unmatched probe-cable-driver combinations — a critical consideration in API 670 machinery protection systems where trip accuracy tolerances are typically ±1% of full scale.

EMC Design and Shielding: The integral armored cable uses a double-layer shield construction: an inner foil shield bonded to the coaxial center conductor and an outer braided shield connected to the probe body ground. This configuration provides >60 dB common-mode rejection across the 50 Hz – 10 kHz band, suppressing variable-frequency drive (VFD) switching noise and stray magnetic fields from adjacent motor windings — both prevalent interference sources in industrial compressor halls and turbine buildings.

Eddy-Current Linearity and Gap Management: The probe tip geometry is optimized for an 8 mm coil diameter to produce a linear measurement zone of 0.25 mm to 2.26 mm (10–90 mil). The nominal installation gap is 1.27 mm (50 mil), placing the operating point at the center of the linear range. At this gap, the output is −12 VDC ± 0.5 VDC. Deviations from the nominal gap shift the operating point along the transfer curve; the Proximitor’s internal temperature-compensation circuit corrects for coil resistance drift up to ±0.05% per °C, maintaining calibration accuracy across the full −35 °C to +121 °C probe temperature range.

High-Frequency Oscillator Stability: The Proximitor driver employs a crystal-controlled oscillator with frequency stability of ±0.01% over temperature, ensuring that the carrier frequency presented to the probe coil remains within the coil’s resonant bandwidth. Frequency drift in the oscillator is the primary mechanism for long-term sensitivity creep in eddy-current systems; the crystal-controlled design limits this drift to <0.1 mV/mil per year under continuous operation.

Armored Cable Mechanical Integrity: The 15 ft integral cable uses a stainless-steel armor jacket rated for continuous flexure at bend radii >25 mm, with a minimum pull-out force of 200 N at the probe-cable junction. This construction withstands the mechanical vibration environment of turbine pedestals (typically 2–50 g broadband) without connector fretting or shield continuity degradation over a 10-year service interval.

System Integration Benefits

• Direct compatibility with Bently Nevada 3500 platform: The 330104-00-15-10-01-CN interfaces natively with the 3500/42M Proximitor I/O module and 3500/25 Keyphasor module without signal conditioning adapters, preserving the full 16-bit ADC resolution of the 3500 monitor cards.
• API 670 trip accuracy compliance: Factory calibration to ±1% sensitivity tolerance satisfies the API 670 requirement for machinery protection systems, eliminating the need for field calibration after installation.
• Deterministic signal latency: The analog output architecture delivers a signal propagation delay of <1 ms from mechanical displacement to monitor input, supporting the 3500 platform’s 1 ms voting logic cycle for overspeed and high-vibration trip functions.
• Backward compatibility with 3300 XL infrastructure: The probe thread (M10 × 1.0), connector pinout, and sensitivity specification are identical to the legacy 3300 XL series, allowing direct replacement without modifying existing probe holders, conduit runs, or monitor gain settings.
• Diagnostic transparency via bias voltage monitoring: The −24 VDC bias output provides a continuous, passive health indicator. A bias voltage outside the −18 VDC to −26 VDC window indicates probe gap error, cable open/short, or driver failure — all detectable by the 3500 monitor’s OK relay without additional diagnostic hardware.
• Reduced installation commissioning time: The matched-set calibration certificate shipped with each unit eliminates the 2–4 hour field calibration procedure required for unmatched components, directly reducing turbine commissioning schedule risk.
• Multi-parameter measurement from a single probe: A single 330104-00-15-10-01-CN installation can simultaneously provide radial vibration (AC component), average shaft centerline position (DC component), and speed/phase reference when used with a Keyphasor notch — three measurement functions from one cable penetration.
• ATEX/FM zone compatibility: The certified hazardous-area ratings allow deployment in Zone 1/Division 1 environments (gas turbine enclosures, offshore compressor modules) without additional intrinsic safety barriers when paired with the appropriate certified Proximitor driver.
• Long-term spare parts availability: Bently Nevada maintains the 3300 XL platform under a documented long-term availability commitment, with probe-cable-driver matched sets available through authorized channels for a minimum of 10 years post-production, protecting capital investment in existing monitor infrastructure.

Quality Assurance & Global Logistics

Every 330104-00-15-10-01-CN unit supplied by siemensplc.com is sourced as genuine Bently Nevada (Baker Hughes) product through verified supply channels. Each unit undergoes a structured incoming inspection protocol before dispatch:

• Visual and mechanical inspection: Probe tip condition, cable armor integrity, connector seating, and label traceability verification against the factory calibration certificate.
• Bias voltage functional test: Each driver is powered at −24 VDC and the output bias voltage is measured at the nominal 1.27 mm gap against a certified AISI 4140 target block. Acceptance criterion: −12 VDC ± 0.5 VDC.
• Sensitivity verification: Output voltage is measured at 0.5 mm and 2.0 mm gap positions to confirm the 200 mV/mil slope within ±1% tolerance.
• Documentation package: Certificate of Conformance (CoC), factory calibration data sheet, and incoming inspection report are included with every shipment. Traceability documentation for ATEX/FM-certified units is available upon request.

Logistics are managed from our Xiamen, China operations center. Standard international shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to major industrial hubs in Southeast Asia, the Middle East, and Europe. In-stock units are processed and handed to the carrier within 24 hours of order confirmation. Export documentation — commercial invoice, packing list, and HS code declaration (HS 9031.80) — is prepared in compliance with Chinese customs regulations and destination-country import requirements. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST.
