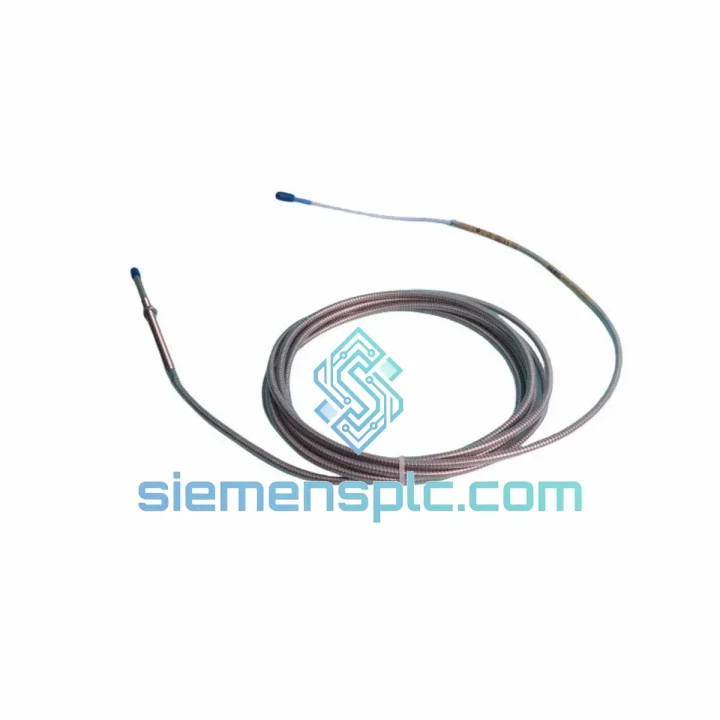

Bently Nevada 330104-00-15-50-02-00 Proximity Transducer

330104-00-15-50-02-00 In Stock Now — Every Hour of Downtime Costs You Money

Your turbine is tripped. The 3300 XL proximity system is throwing a Not OK alarm and the shaft vibration channel is dead. You’ve already checked the driver, the extension cable checks out, and the gap voltage is gone. The probe is the culprit — and you need a Bently Nevada 330104-00-15-50-02-00 on-site before the next shift. We stock it. We ship it today.

At siemensplc.com, we maintain physical inventory of high-demand rotating machinery components specifically because production lines don’t wait for 6-week lead times. The 330104-00-15-50-02-00 is a 3300 XL Series 8mm eddy-current proximity probe with a 1.5 m integral cable and 5.0 m extension, terminated with a 2-pin MIL-C-5015 connector — pulled from verified stock, inspected before dispatch, and shipped via DHL Express from Xiamen within hours of order confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After a decade of field work on turbomachinery protection systems, here’s what actually matters when you’re swapping a 330104-00-15-50-02-00 under pressure:

1. Confirm the probe is the failure point — not the driver or cable.
Disconnect the extension cable at the driver junction box. Measure DC output voltage at the driver output terminals. If you read a valid gap voltage (typically −10 VDC at mid-gap) with a known-good probe substituted, the original probe is confirmed failed. Common fault codes on 3500 racks: Channel Not OK (CNO), Transducer Not OK (TNO), or a flat-line vibration trend with no alarm — all point to probe or cable loss.

2. Total cable length is non-negotiable.
The 330180 driver is factory-calibrated for a specific total cable length. The 330104-00-15-50-02-00 uses a 5.0 m extension. If you substitute a probe with a different extension length (e.g., 30 = 3.0 m), the gap voltage curve shifts and your vibration readings will be wrong — even if the channel shows OK. Verify the extension cable code (positions 4–5 in the part number) before ordering.

3. Gap setting after installation.
Target gap for 8mm probes on AISI 4140 steel: 1.0 mm ± 0.1 mm, corresponding to approximately −10.0 VDC output. Use a calibrated gap tool or a precision feeler gauge. Do not rely on the monitor’s OK/Not OK status alone during initial setup — measure the DC output directly at the driver.

4. Target material correction.
If your shaft is 316 stainless, Inconel, or any non-4140 alloy, apply Bently Nevada’s published target factor correction. Failure to do so introduces a systematic sensitivity error that will corrupt your vibration amplitude readings and potentially mask real machinery faults.

5. Connector seating and torque.
The MIL-C-5015 connector is robust but field-damaged connectors are a common source of intermittent faults. Inspect the connector pins for corrosion or mechanical damage before installation. Torque the coupling ring to the specified value — finger-tight is not sufficient in high-vibration environments.

6. Firmware and rack configuration.
No firmware update is required for the probe itself. However, if you are replacing a probe on a 3500 rack that has been reconfigured, verify that the transducer type is still set to 3300 XL 8mm in the rack configuration software. A mismatch between the configured transducer type and the installed probe will produce incorrect scale factors.

Reliability in Harsh Conditions

The 3300 XL 8mm proximity transducer system was engineered for continuous operation in environments that would destroy lesser sensors. The 330104-00-15-50-02-00 probe body is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip housing — chemically resistant to the hydrocarbon-laden, moisture-saturated atmospheres common in compressor trains and steam turbine bearing housings.

The integral cable uses a fluoropolymer jacket rated to +177°C at the probe tip, with the extension cable rated to +85°C — adequate for the vast majority of bearing housing installations where the cable runs through conduit away from the hot zone. The eddy-current sensing element itself has no moving parts and no wear mechanism; the only failure modes in service are mechanical damage to the probe tip, cable jacket degradation from chemical exposure, or connector corrosion — all of which are visible on inspection.

Vibration immunity is inherent to the eddy-current operating principle: the probe has no resonant frequency within its measurement bandwidth (DC–10 kHz), and the rigid stainless body does not exhibit the mechanical resonance issues that plague accelerometers in high-frequency environments. In API 670-compliant installations, the probe mounting thread (M10 × 1.0) is locked with a jam nut to prevent loosening under continuous vibration — a step that is frequently skipped in the field and is the single most common cause of probe-related false alarms.

For installations in classified hazardous areas (Zone 1/Zone 2, Division 1/Division 2), the system-level ATEX and FM certifications cover the probe, extension cable, and driver as a matched set. Do not mix certified and non-certified components within a single channel in a hazardous area installation.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of the most logistics-efficient cities in Southeast China, with direct access to Xiamen Gaoqi International Airport and established daily freight lanes with DHL Express, FedEx International Priority, and UPS Worldwide Express.

Standard dispatch timeline: Orders confirmed before 14:00 CST ship same business day. Orders confirmed after 14:00 CST ship the following morning. Export documentation (commercial invoice, packing list, certificate of conformance) is prepared in parallel with packing — no delays at customs clearance.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

For genuinely critical shutdowns, we can arrange next-flight-out courier service with hand-carry to the departure gate. Contact us directly on WhatsApp for this option — it is not available through the standard checkout flow.

All shipments are fully insured, tracked from dispatch to delivery, and accompanied by a commercial invoice declaring the correct HS code for customs clearance. We have shipped to over 40 countries without a single customs seizure or mis-declaration incident.
