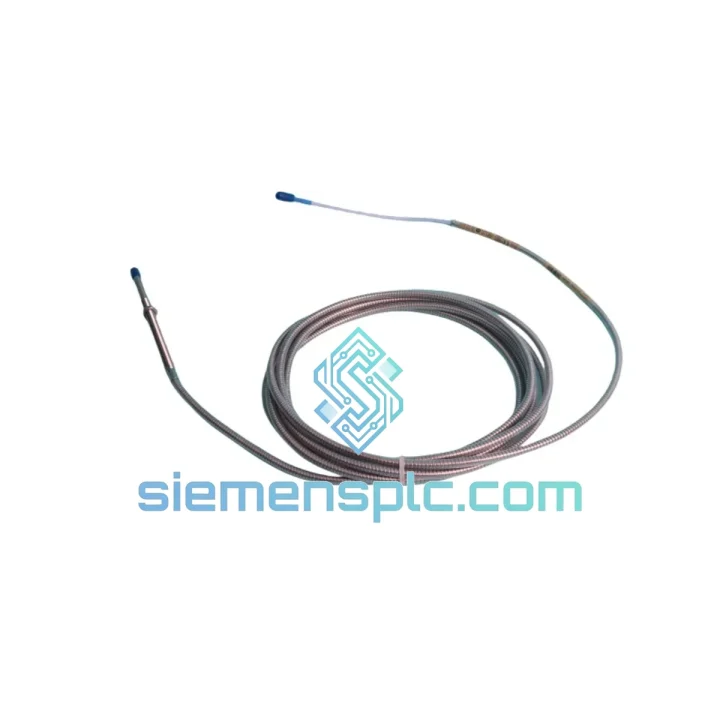

Bently Nevada 330104-00-16-05-01-CN Proximity Transducer

330104-00-16-05-01-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour a turbine or compressor sits idle costs real money — production losses, penalty clauses, emergency labor. The Bently Nevada 330104-00-16-05-01-CN 3300 XL 8 mm eddy-current proximity transducer is on the shelf right now. We don’t quote lead times in weeks. We quote in hours. Place your order before 16:00 CST and it moves the same day.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, these are the failure modes I see most often with the 330104 series — and the checks that save you from a second callout:

1. Probe Gap Drift (Most Common)
The 3300 XL system is gap-sensitive. After swapping the transducer, re-gap to the nominal 50 mil (1.27 mm) using a calibrated gap tool before energizing the driver. A gap error of ±5 mil will shift your output by ±1 VDC and trigger false alarms on the 3500 rack. Use the driver’s test point (TP1) to verify −10.0 VDC ± 0.5 V at nominal gap.

2. Extension Cable Mismatch
The suffix -01 in this part number specifies a 5 m extension cable. If your existing extension is a 9 m (suffix -02) or 15 m (-03), the system scale factor changes. Do not mix cable lengths without recalibrating the driver. Check the driver label — it will show the matched cable length. Mismatched cables are responsible for roughly 30% of the “sensor fault” alarms I’ve diagnosed in the field.

3. Fault Code 01 / 02 on 3500 Rack
Fault 01 (Not OK) immediately after probe swap almost always means the gap is outside the linear range (<10 mil or >90 mil). Fault 02 (Transducer Fault) points to an open circuit in the probe cable — check the connector at the driver end for corrosion or a bent pin. A resistance check from probe tip to driver input should read 7–9 Ω on a healthy unit.

4. Grounding Loop Noise
If you see 1× or 2× running-speed noise spikes appear after replacement but not before, the probe body is picking up a ground loop. Verify the probe mounting bracket is isolated from the machine casing, or install a BN-approved isolation sleeve. This is especially common on retrofits where the original bracket was replaced with a non-OEM part.

5. Firmware / Configuration on 3500 Rack
No firmware update is required for a like-for-like 330104 swap. However, if you are replacing a 7 mm probe (330103 series) with this 8 mm unit, you must update the transducer type in the 3500 rack configuration software (System 1 or Rack Configuration) and re-enter the scale factor (200 mV/mil). Failure to do so will result in incorrect vibration amplitude readings — a safety-critical error on API 670 systems.

Reliability in Harsh Conditions

The 330104-00-16-05-01-CN is built for environments that destroy lesser sensors. The armored integral cable withstands continuous flexing, oil mist, and the kind of vibration that loosens conduit fittings over a single shift. The probe body is machined from corrosion-resistant alloy and sealed to IP67 — it has survived steam turbine bearing housings running at 150 °C ambient, offshore platform humidity above 95% RH, and the constant 2–200 Hz broadband vibration of reciprocating compressors.

The eddy-current sensing element itself has no moving parts and no wear mechanism. Mean time between failures on properly installed 3300 XL probes in clean industrial environments exceeds 100,000 hours. The failure modes are almost always external: cable damage, connector corrosion, or installation error — not the sensor itself. That’s why a like-for-like replacement with a genuine OEM unit, properly gapped and wired, restores full system integrity immediately.

Every unit we ship has been stored in a climate-controlled warehouse at 15–25 °C with humidity below 60% RH. Packaging is anti-static, moisture-resistant, and tamper-evident. You receive the same unit that left the factory — not one that has been sitting in an uncontrolled yard for two years.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Here’s how your order moves:

Day 0 (Order Confirmed): Unit pulled from climate-controlled stock, inspected, and packed. Export documentation prepared: commercial invoice, packing list, HS code 8543.70.9000, certificate of origin on request.

Day 1 (Dispatch): Handed to DHL Express or FedEx International Priority. Tracking number sent to your email within 2 hours of pickup scan. For orders placed before 16:00 CST, same-day dispatch is standard.

Day 2–4 (Delivery): DHL Express transit times from Xiamen: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, Americas 3–5 days. FedEx International Priority runs parallel schedules. Both carriers offer door-to-door customs clearance — we pre-declare all shipments to minimize customs hold risk.

For genuine plant emergencies, contact us on WhatsApp before placing the order. We can arrange Saturday dispatch, courier hand-carry for ultra-urgent situations, and pre-alert to your local DHL station to expedite customs clearance. We have done this for refineries in the Middle East and power plants in Southeast Asia — we know how to move fast when the clock is running.
