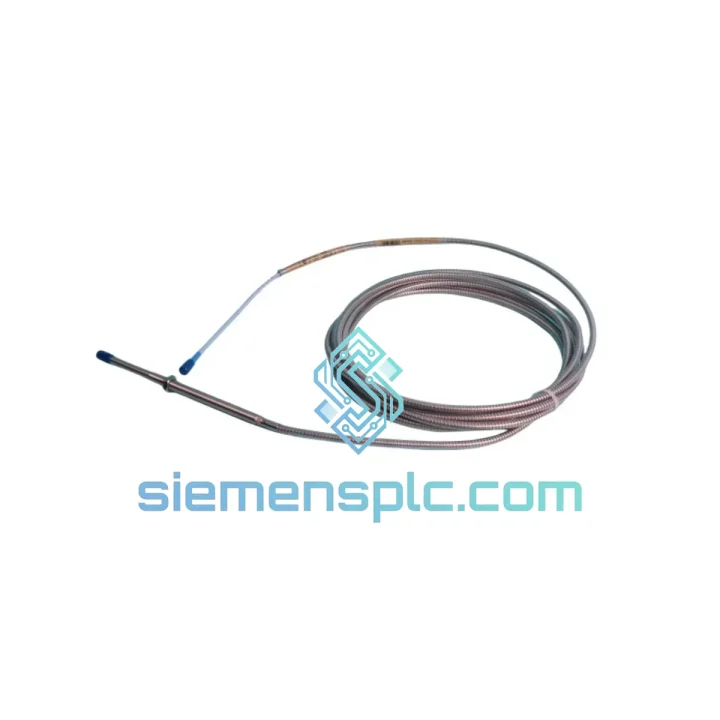

Bently Nevada 330104-00-22-50-02-00 Proximity Transducer

330104-00-22-50-02-00 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every hour a critical rotating machine sits idle costs real money — lost production, penalty clauses, and the kind of pressure that makes plant managers sweat through their shirts. The Bently Nevada 330104-00-22-50-02-00 is a matched 3300 XL 8mm eddy current proximity transducer system configured for long-cable installations: 22 m integral probe cable plus a 5 m extension, totaling the maximum rated 27 m reach. We stock it. We ship it. Today.

This is not a refurbished unit. Not a clone. Not a “compatible” substitute. It is a new, original Bently Nevada (Baker Hughes) 3300 XL 8mm system, factory-calibrated, with full traceability documentation. When your 3500 monitor throws a transducer fault at 02:00 and the plant is down, this is the part that gets you back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 3300 XL proximity transducer looks straightforward on paper. In the field, at 03:00 with a plant manager breathing down your neck, the details matter. Here is what catches engineers off guard:

1. Confirm the Gap Voltage Before You Touch Anything
Before pulling the old probe, record the gap voltage at the 3500 monitor I/O module. Nominal gap for an 8mm probe on AISI 4140 steel is -10.0 VDC ± 0.5 V. If the old probe was reading -14 V or -6 V, the shaft position or bearing clearance has shifted — that is a mechanical problem, not a transducer problem. Replacing the probe without investigating will give you the same alarm in 48 hours.

2. The 330104-00-22-50-02-00 Is a Matched System — Do Not Mix Components
The probe, extension cable, and driver (Proximitor) in this part number are factory-calibrated as a set. The probe cable impedance is tuned to the driver. If you pull the driver from a failed unit and pair it with a new probe, your scale factor will drift. Replace the complete system. The -02 suffix in this part number designates the standard driver configuration — verify your existing driver suffix before ordering if you intend to replace components individually.

3. Common Fault Codes on the Bently Nevada 3500 Monitor

• OK LED off, -1 V output: Probe tip is too far from the target (gap too large) or the probe cable is open-circuit. Check cable continuity first — armored cables on long runs are vulnerable to crush damage at conduit entry points.
• OK LED off, -21 V output: Probe tip is too close to the target (gap too small) or the cable is short-circuit. On a 22 m cable run, check for pinch points along the entire route.
• Intermittent OK LED: Connector contamination at the probe-to-extension or extension-to-driver junction. On long-cable systems, moisture ingress at the junction box is the primary suspect. Clean with contact cleaner, re-torque to spec (finger-tight plus 1/4 turn), and apply thread sealant.
• High vibration alarm with no mechanical change: Electrical noise coupling into the long cable run. Verify shield continuity and that the shield is grounded at one end only (driver end). A 22 m unshielded run in a VFD-heavy environment will pick up enough noise to trigger alarms.
• 3500/42M channel fault after replacement: The monitor stores the previous transducer’s calibration data. After installing the new system, perform a full channel calibration using the 3500 Rack Configuration Software. Do not skip this step — the monitor will not automatically recognize the new unit’s calibration certificate values.

4. Probe Installation Torque
Thread the probe into the bracket by hand until snug, then back off 1/4 turn to set the initial gap. Use a non-magnetic feeler gauge to verify the gap (typically 1.0–1.5 mm for an 8mm probe). Lock the jam nut to 20–25 N·m. Over-torquing the jam nut on a long-cable probe assembly is the fastest way to crack the probe body — the cable acts as a lever arm during installation.

5. -00 vs -CN Suffix — What It Means for Your Plant
The -00 suffix carries international ATEX and IECEx certifications. The -CN suffix carries CCC certification for Chinese hazardous area use. For non-hazardous area replacements or temporary emergency use, the -00 is functionally interchangeable with the -CN. For certified hazardous area installations in China, confirm with your HSE team before installing the -00 variant permanently.

Reliability in Harsh Conditions

The 3300 XL 8mm system was not designed for a climate-controlled instrument room. It was designed for the bearing pedestal of a 200 MW steam turbine running at 3,000 RPM in a tropical power station with 95% relative humidity and ambient temperatures that would cook most electronics.

The probe body is constructed from 316 stainless steel with a PEEK tip insert — chemically resistant to the lubricating oils, hydraulic fluids, and cleaning solvents found in turbine and compressor environments. The 22 m integral cable uses an armored jacket rated for continuous flexing and crush resistance, designed to survive cable tray installations where maintenance crews walk on the cables during outages.

Vibration immunity is not an afterthought. The probe assembly is rated to withstand 20g continuous vibration across the 10–2,000 Hz range — the same vibration environment it is measuring. The driver module is potted and sealed to IP66, meaning it survives the high-pressure water washdowns common in food processing and offshore platform maintenance cycles.

Temperature cycling is where many third-party alternatives fail. The 3300 XL probe is rated to +177°C continuous at the tip — sufficient for bearing housings on high-temperature steam turbines where bearing metal temperatures can exceed 120°C. The driver module handles -35°C cold starts in outdoor installations in northern climates without requiring pre-heating.

Every unit we ship has passed Bently Nevada’s factory acceptance test. We do not stock units that have been sitting in uncontrolled warehouse conditions for years. Our inventory is rotated, stored in climate-controlled conditions, and inspected before dispatch. If a unit does not pass our pre-dispatch continuity and visual check, it does not ship.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected cities in Southeast China, with direct access to DHL, FedEx, and UPS international hubs. For emergency orders, this matters: Xiamen’s proximity to major air freight gateways means we can achieve next-flight-out dispatch on confirmed orders received before 15:00 CST.

Standard Express Timeline (DHL / FedEx International Priority):

• Southeast Asia (Singapore, Malaysia, Thailand, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days
• Europe (Germany, Netherlands, UK, France): 4–5 business days
• North America (USA, Canada): 4–6 business days
• Australia / New Zealand: 3–5 business days
• South America (Brazil, Chile, Colombia): 5–7 business days
• Africa (South Africa, Nigeria, Egypt): 5–8 business days

All shipments include full commercial invoice, packing list, and certificate of origin for customs clearance. HS Code: 9031.80.90.90. We have experience with customs requirements in over 40 countries and can prepare documentation to DDP, DAP, or EXW Incoterms based on your procurement requirements.

For plant shutdowns where every hour counts, contact us directly on WhatsApp for real-time stock confirmation and same-day dispatch coordination. We have shipped emergency orders on a 4-hour turnaround from inquiry to airway bill.
