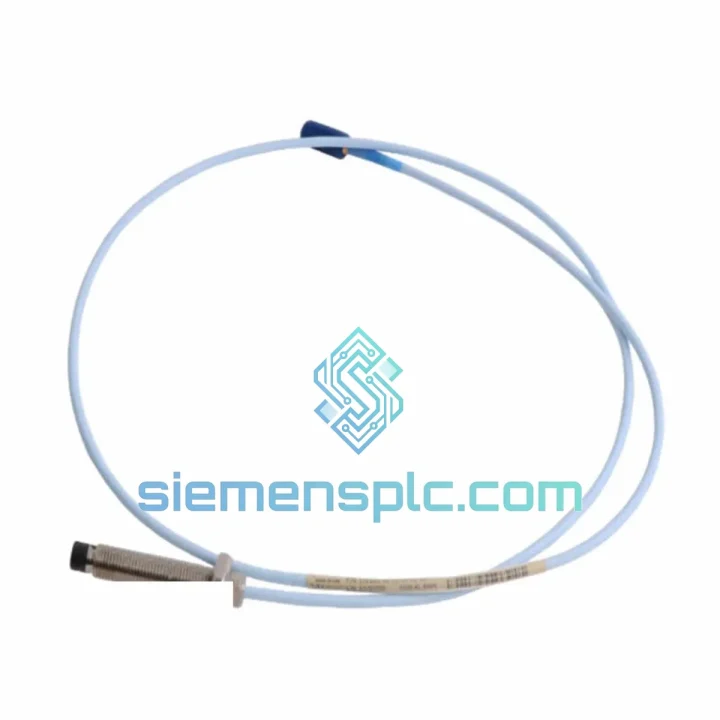

Bently Nevada 330104-01-06-10-02-00 Proximity Transducer System

330104-01-06-10-02-00 — Stop the Clock on Your Downtime: Same-Day Dispatch from Xiamen Stock

Every hour a steam turbine, centrifugal compressor, or high-speed pump runs without a functioning proximity transducer is an hour your machinery protection system is blind. Shaft displacement goes undetected. Protective trip thresholds can’t fire. A $400 sensor failure becomes a $400,000 rotor rebuild — or worse, a safety incident. The Bently Nevada 330104-01-06-10-02-00 is on our shelf in Xiamen right now. We ship DHL Express within 24 hours of order confirmation. That’s the only number that matters when your line is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the 3300 XL system surfaces the same failure patterns repeatedly. Here is what to check before you pull the trigger on a full replacement — and what to watch when you do.

Fault: Gap Voltage Out of Range (typically −2 VDC or −22 VDC at monitor input)
Measure DC gap voltage at the Proximitor driver output with a calibrated DMM. Nominal gap for most installations is −10 VDC ±1 V at the set mechanical gap. A reading near −2 VDC means the probe tip is too close to the shaft or shorted. A reading near −22 VDC means the probe is too far, disconnected, or the cable has an open circuit. Wiggle the extension cable at both connectors — intermittent opens are a frequent culprit on machines with high vibration at the junction box.

Probe Swap Procedure — Critical Steps:

• De-energize the Proximitor driver before disconnecting the probe. Hot-swapping can damage the driver input stage.
• Record the existing mechanical gap before removal. The 330104-01-06-10-02-00 must be re-gapped to the same setpoint — typically 1.0 mm (40 mil) for radial vibration, 0.75 mm (30 mil) for thrust position, per your OEM spec sheet.
• Inspect probe mounting threads for fretting corrosion. Clean with a brass brush only — never steel — to avoid contaminating the probe tip area.
• Torque the locknut to OEM spec, typically 2.3 N·m (20 in-lb) for 3/4-inch probe bodies. Under-torquing causes gap drift under vibration; over-torquing cracks the probe body.
• After installation, verify gap voltage at the monitor terminal strip before re-energizing the protection system. Confirm the reading is within ±0.5 VDC of the original setpoint.
• The 330104-01-06-10-02-00 uses a matched Proximitor driver. Mixing probe and driver part numbers from different sub-configurations shifts the sensitivity curve and produces false readings. The driver must match the probe cable length encoding.
• If the monitor shows Not OK after installation with correct gap voltage, check the monitor OK setpoints — some 3500 Series cards have adjustable OK limits that need re-verification after a transducer swap.

Extension Cable Integrity Check: Resistance from probe tip to Proximitor input should be under 5 Ω. Shield continuity must be verified end-to-end. Any reading above 10 Ω on the center conductor indicates a damaged cable — replace the cable before condemning the probe.

Reliability in Harsh Conditions

The 3300 XL platform was engineered for environments that destroy lesser sensors. The 330104-01-06-10-02-00 probe body is constructed from 316 stainless steel with a PEEK tip housing — chemically inert to hydrocarbon condensate, H₂S, and most process fluids encountered in refinery and gas plant environments. The extension cable jacket is rated for continuous immersion and resists abrasion from cable trays and conduit edges.

Vibration immunity is not an afterthought. The probe-to-cable connector uses a threaded locking collar that maintains electrical continuity under sustained broadband vibration up to 20 g — the kind of shock loading seen during compressor surge events or turbine trip transients. In offshore FPSO applications where salt spray and humidity are constant, the connector gold-plated contacts resist oxidation that causes intermittent signals in standard industrial connectors.

Thermal cycling is where counterfeit or substandard transducers fail first. The eddy-current coil assembly is potted in a thermally stable compound that maintains dimensional integrity across the full −35°C to +177°C operating range. Sensitivity drift across this range is less than ±0.5% — critical for thrust position measurements where a 0.1 mm error can mean the difference between a valid reading and a missed protective trip.

Global Express Logistics

Our Xiamen warehouse operates on a 24-hour dispatch cycle for in-stock items. Here is exactly what happens after you confirm your order:

• Hour 0–2: Order confirmation and export documentation preparation — commercial invoice, packing list, and certificate of origin generated immediately.
• Hour 2–8: Unit pulled from shelf, inspected against order specifications, photographed, and packed in anti-static foam with moisture-barrier outer packaging. Each unit ships with original labeling intact.
• Hour 8–24: DHL Express or FedEx International Priority pickup from our Xiamen facility. Tracking number issued to your email within 30 minutes of carrier collection.
• Transit to Europe / Middle East: 2–3 business days door-to-door via DHL Express.
• Transit to North America: 3–4 business days via FedEx International Priority.
• Transit to Southeast Asia: 1–2 business days.

For genuine plant emergencies, contact us on WhatsApp at +86 18359268345 before placing your order. We can coordinate same-day pickup with DHL on-demand service for critical shipments, and our team can prepare a proforma invoice within 60 minutes to accelerate your internal PO approval process. We support T/T bank transfer, PayPal, and L/C at sight for B2B transactions. All international shipments include full export compliance documentation — HS Code 9026.80 applies to proximity transducer systems.
