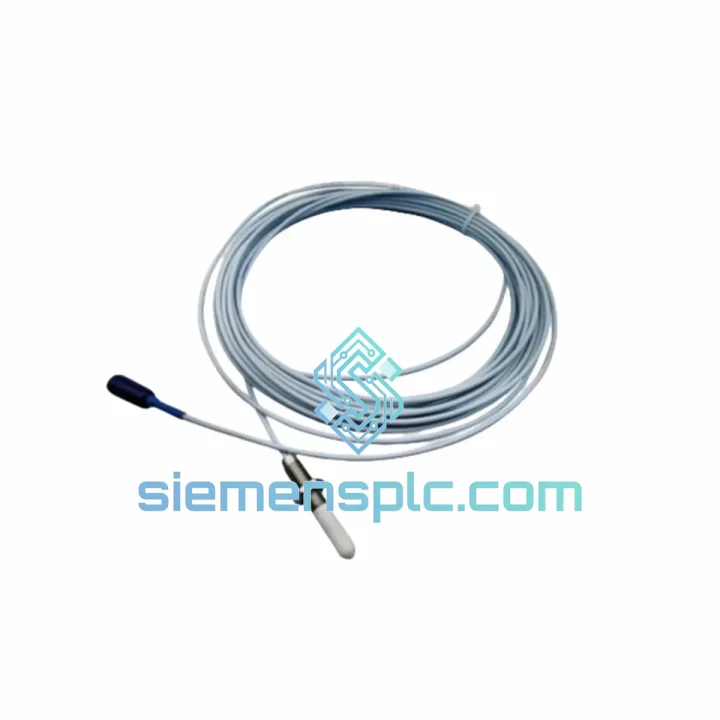

Bently Nevada 330104-01-08-15-02-05 Proximity Probe – 3300 XL Series

Bently Nevada 330104-01-08-15-02-05 — Eddy-Current Proximity Probe for Shaft Vibration and Radial Position Measurement in Rotating Machinery

The 330104-01-08-15-02-05 is an 8 mm eddy-current proximity probe manufactured by Bently Nevada as part of the 3300 XL measurement system. It is designed for continuous, non-contact displacement sensing of rotating shafts in machinery protection and condition monitoring applications. The probe operates on the eddy-current principle: a high-frequency oscillating magnetic field generated at the probe tip induces eddy currents in the conductive target surface; the resulting impedance change is converted by the paired Proximitor® sensor into a DC voltage proportional to the gap distance. This mechanism delivers a DC-coupled, zero-wear measurement path with a frequency response extending from DC to 10,000 Hz — a bandwidth sufficient to capture sub-synchronous instabilities, synchronous unbalance vectors, and high-order gear mesh harmonics within a single sensor channel.

The 330104-01-08-15-02-05 part number encodes the full system configuration: 8 mm probe tip diameter, 1 m integral cable, 5 m extension cable, and a total system length of 9 m, calibrated for AISI 4140 steel targets at −24 VDC supply. This fixed-length, factory-matched configuration eliminates field-assembled connector joints between probe and extension cable — a common source of signal degradation in high-vibration environments — and ensures that the sensitivity constant of 7.87 V/mm (200 mV/mil) is maintained across the full operating temperature range of −35°C to +177°C without field recalibration.

In API 670-compliant machinery protection loops, this probe is paired with a Bently Nevada Proximitor® sensor (e.g., 330180-91-00) and a 3300 or 3500 series monitor module. The Proximitor demodulates the probe’s RF carrier signal and outputs a buffered DC voltage to the monitor, which applies alarm and danger setpoints for automatic machine trip. The 330104-01-08-15-02-05 is backward-compatible with 3500 series monitor racks when used with the appropriate Proximitor driver, making it a direct replacement in existing installations without rack-level hardware changes.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL probe architecture addresses three principal failure modes common to eddy-current proximity systems in industrial machinery: thermal drift, connector-induced noise, and target material sensitivity.

Thermal Stability via Matched-Component Design. The probe, integral cable, and extension cable in the 330104-01-08-15-02-05 are factory-matched as a calibrated system. The Proximitor’s internal oscillator frequency and the cable’s characteristic impedance are tuned together, so the sensitivity constant remains within ±0.5% across the full −35°C to +177°C operating envelope. In contrast, field-assembled systems using generic coaxial cable introduce impedance discontinuities that shift the oscillator operating point with temperature, producing apparent gap changes of up to 2–3% per 50°C excursion — an error that can mask real shaft displacement trends or generate nuisance alarms.

Integral Cable Eliminates the Primary Noise Source. The junction between probe body and extension cable is the highest-risk point for signal contamination in eddy-current loops. Mechanical fretting at this connector — caused by vibration-induced micro-motion — generates triboelectric noise that appears as broadband spectral content in the vibration signal, indistinguishable from real machinery events at frequencies above 1 kHz. The 330104-01-08-15-02-05 eliminates this junction within the probe assembly; the only field connector is at the Proximitor input, which is stationary and not subject to vibration-induced fretting.

EMC Shielding Architecture. The extension cable uses a double-shielded construction (inner braid + outer foil) with the shield grounded at the Proximitor end only. This single-point grounding topology prevents ground loop currents — which arise when the probe body and the Proximitor chassis are at different ground potentials — from flowing through the signal conductor. In variable-speed drive (VSD) environments, where common-mode noise on the machine frame can reach several volts at switching frequencies of 2–20 kHz, this shielding architecture maintains signal integrity without requiring additional isolation transformers or optical isolators in the measurement loop.

Target Material Sensitivity and Calibration Traceability. Factory calibration on AISI 4140 steel establishes the nominal 7.87 V/mm sensitivity. For shafts machined from 316 stainless steel, Inconel 718, or titanium alloys — materials with lower electrical conductivity and magnetic permeability — the effective sensitivity shifts by −3% to −12% depending on alloy composition. Bently Nevada publishes material correction factors for common alloys; these are applied as scale factor adjustments in the 3500 monitor configuration, not as hardware modifications. This approach preserves the factory calibration traceability of the probe while accommodating non-standard target materials without sensor replacement.

System Integration Benefits

• Direct API 670 Compliance: The 330104-01-08-15-02-05 meets API 670 5th Edition requirements for proximity probe systems, including sensitivity tolerance, linear range, and temperature rating — eliminating the need for project-specific deviation documentation during EPC contractor review.
• Backward Compatibility with 3500 Series Racks: Electrically compatible with 3500 series Proximitor drivers (e.g., 330180-51-05), allowing direct replacement in existing 3500-based protection systems without rack hardware changes or re-engineering of the I/O wiring schedule.
• DC-Coupled Output for Static Position Monitoring: The DC-coupled measurement path captures both dynamic vibration (AC component) and static shaft centerline position (DC component) simultaneously. This enables the monitor to track journal bearing wear over time as a slow DC drift in gap voltage — a diagnostic capability not available with AC-coupled sensors.
• Deterministic Alarm Response: When integrated with a 3500/40M monitor module, the probe-to-trip latency from a step change in shaft displacement to a relay output is less than 20 ms — within the API 670 requirement of one shaft revolution at the maximum operating speed for the alarm to be processed.
• Orbit Plot Generation: Two probes mounted at 90° (X-Y configuration) on the same bearing journal feed the monitor’s orbit computation engine, producing a real-time Lissajous figure of shaft motion. This orbit plot is the primary diagnostic tool for distinguishing unbalance (circular orbit), misalignment (figure-eight orbit), and fluid-induced instability (precessing elliptical orbit).
• 4–20 mA and Modbus Integration: Via the 3500/92 communication gateway, the probe’s gap voltage is available as a 4–20 mA analog output for DCS historian integration and as a Modbus RTU/TCP register for SCADA display — without any signal conditioning hardware external to the monitor rack.
• Reduced Commissioning Time: The factory-matched system length and pre-set sensitivity constant eliminate the field calibration step required for non-matched systems. Commissioning is reduced to gap setting verification (target gap voltage −10 VDC ± 0.5 V) and alarm setpoint entry in the monitor — typically less than 30 minutes per measurement point.
• Long-Term Diagnostic Trend Integrity: Because the sensitivity constant is stable over the operating temperature range and does not degrade with sensor age (no moving parts, no wear mechanism), the probe’s output can be used for long-term trend analysis of shaft centerline position without periodic recalibration — a requirement for bearing wear trending programs that span 3–5 year overhaul intervals.

Quality Assurance & Global Logistics

Every 330104-01-08-15-02-05 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and undergoes a structured incoming inspection protocol before dispatch:

• Visual inspection of probe tip geometry, cable jacket continuity, and MIL-C-5015 connector pin integrity
• Dimensional verification of probe tip diameter (8 mm ± 0.05 mm) and total system cable length (9 m ± 50 mm)
• Manufacturer lot code and date code recorded for full traceability; documentation provided on request
• Original Bently Nevada packaging preserved where available; units not meeting inspection criteria are not listed for sale
• 12-month warranty from shipment date covering manufacturing defects under normal operating conditions

Logistics are managed from our warehouse in Xiamen, China. Standard export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 9031.80) — is prepared for every international shipment. Carrier options include DHL Express (2–4 business days to most destinations), FedEx International Priority, and UPS Worldwide Express. For project quantities requiring consolidated freight, sea freight via Xiamen Port is available with full export customs clearance handled in-house. Urgent shutdown requirements can be accommodated with same-day dispatch for orders confirmed before 14:00 CST.
