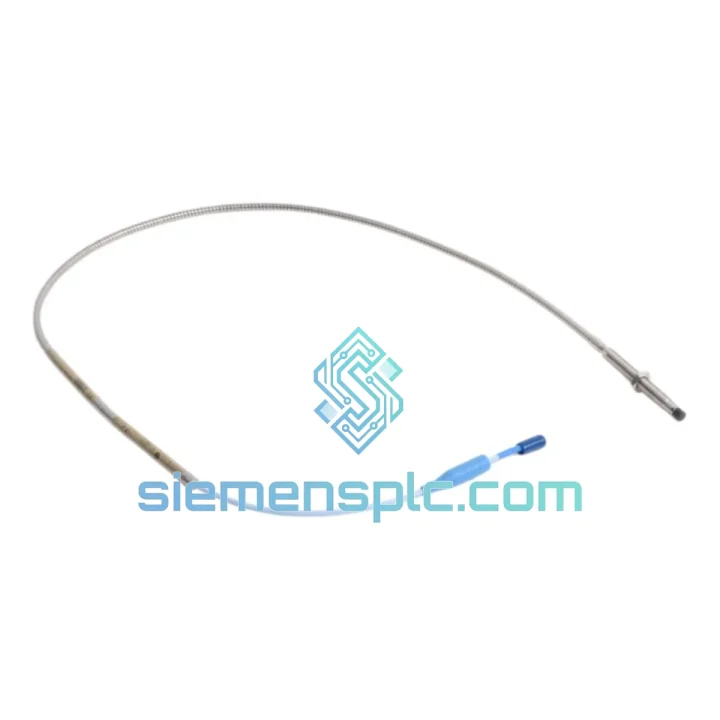

Bently Nevada 330104-01-14-10-01-00 Proximity Probe

330104-01-14-10-01-00 — Stop the Clock on Your Downtime. Ship Today.

Every hour a critical machine sits idle costs real money — lost production, penalty clauses, emergency labor. The Bently Nevada 330104-01-14-10-01-00 is an 8 mm eddy current proximity probe from the 3300 XL Transducer System, and it is one of the most common single-point failures that triggers a full machinery protection trip. We stock it. We ship it. From Xiamen, China, to your site — DHL Express or FedEx International Priority, door to door, typically 2–5 business days worldwide.

No waiting on OEM lead times. No minimum order quantity. One unit or twenty — same urgency, same day dispatch.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 330104-01-14-10-01-00 fails in predictable ways. Here is what to check before you pull the probe, and what to watch when you install the replacement.

Common Fault Signatures

• Constant –24 V output (rail low): Probe tip shorted to ground — usually from contact with the shaft during a rub event or from cable jacket damage at the entry gland. Replace probe and inspect the extension cable for continuity before reconnecting.
• Output stuck at –2 V (rail high): Open circuit in the probe coil or cable. Measure probe tip impedance with an LCR meter — a healthy 8 mm probe reads approximately 1.0–1.2 Ω at 1 kHz. Anything outside 0.8–1.5 Ω indicates a failed coil or broken conductor.
• Noisy / erratic vibration signal with no mechanical cause: Intermittent cable fault at the probe-to-extension connector. Flex the cable near the connector while watching the raw gap voltage — if it spikes, the fault is in the cable, not the probe body.
• Drift in gap DC reading over weeks: Thermal cycling has cracked the hermetic seal. The probe body will show no visible damage. Confirm by comparing gap voltage at cold start vs. operating temperature — a drift > 0.2 V/°C indicates seal failure.
• Bently 3500 rack alarm: CH FAULT or NOT OK: The proximitor is not receiving a valid signal from the probe. Before condemning the probe, verify the extension cable total length matches the calibrated system (1 m probe + 5 m extension = 6 m standard). Mixing lengths corrupts the calibration and triggers NOT OK.

Replacement Procedure — Key Steps

• Step 1 — Record the gap voltage before removal. Note the DC gap reading at operating temperature. Your target after installation is within ±0.25 V of the original value at the same shaft position.
• Step 2 — Do not mix cable lengths. The 330104-01-14-10-01-00 ships with a 1.0 m integral cable. Pair it with the same extension cable length as the original system. If the original used a 5 m extension (330130-05-00), use the same. Total system length must match the proximitor calibration.
• Step 3 — Thread torque matters. The probe tip thread is metric. Torque to 2.0–2.5 N·m maximum. Over-torquing cracks the ceramic tip insert — the most common installation error in the field.
• Step 4 — Set the gap mechanically first. With the machine on turning gear or barred over, set the physical gap to 1.0 mm (midpoint of the linear range) using feeler gauges. Then verify the gap voltage reads approximately –10.5 V ± 0.5 V. Adjust axially until within spec.
• Step 5 — No recalibration of the proximitor required for a like-for-like replacement (same part number, same cable lengths). The 3300 XL system is factory-calibrated as a matched set. Substituting a different probe model or cable length requires a full system recalibration per Bently Nevada procedure.
• Step 6 — Verify NOT OK relay clears before returning the machine to service. A latched NOT OK after correct installation indicates a proximitor fault, not a probe fault.

Reliability in Harsh Conditions

The 3300 XL probe platform was not designed for a clean lab. It was designed for the inside of a turbine enclosure — where ambient temperatures exceed 150°C, lube oil mist coats every surface, and the machine vibrates at frequencies that destroy conventional sensors within months.

The 330104-01-14-10-01-00 handles this environment through a combination of materials engineering and conservative design margins. The stainless steel housing is hermetically sealed by laser welding — not adhesive, not O-rings. The coaxial cable uses a PTFE dielectric that maintains stable impedance from –35°C to +177°C, which means the scale factor does not drift with temperature in the way that cheaper alternatives do. The probe tip ceramic is chemically inert to the hydrocarbon and steam environments found in refinery and power generation applications.

Vibration immunity is a function of the non-contact measurement principle itself. There are no moving parts, no wear surfaces, and no mechanical coupling to the shaft. The probe body can be subjected to 20 g broadband vibration continuously without any effect on measurement accuracy — a specification that matters when the probe is mounted on a bearing housing that is itself vibrating at running speed.

In high-humidity environments — coastal installations, offshore platforms, tropical climates — the hermetic seal prevents moisture ingress that would otherwise cause coil corrosion and calibration drift. Units stored in original packaging in a controlled warehouse maintain full specification indefinitely. Every unit we ship has been inspected for seal integrity and connector condition before dispatch.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province, China — a major international freight hub with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. Stock is physically on-hand, inspected, and ready to pack.

Standard Dispatch Process:

• Order confirmed before 14:00 CST: Same-day dispatch. Tracking number issued by 18:00 CST.
• Packaging: Anti-static foam insert, moisture-barrier poly bag with desiccant, double-wall carton. Probe tip protected by machined plastic cap. No exceptions.
• Documentation: Commercial invoice, packing list, certificate of conformance, and country of origin declaration included with every shipment. ATEX/IECEx certificates available on request — specify at time of order.
• DHL Express Worldwide: Southeast Asia 1–2 days, Europe 2–3 days, Americas 3–4 days, Middle East / Africa 3–5 days.
• FedEx International Priority: Available as alternative carrier. Same transit time estimates. Carrier selection based on destination and current rate.
• Customs & HS Code: Shipped under HS 9031.80 (measuring instruments). We prepare all export documentation. Import duty and VAT are the responsibility of the consignee — we provide all documents required for customs clearance.
• Emergency freight: For critical shutdowns requiring next-flight-out courier, contact us directly on WhatsApp for real-time coordination.
