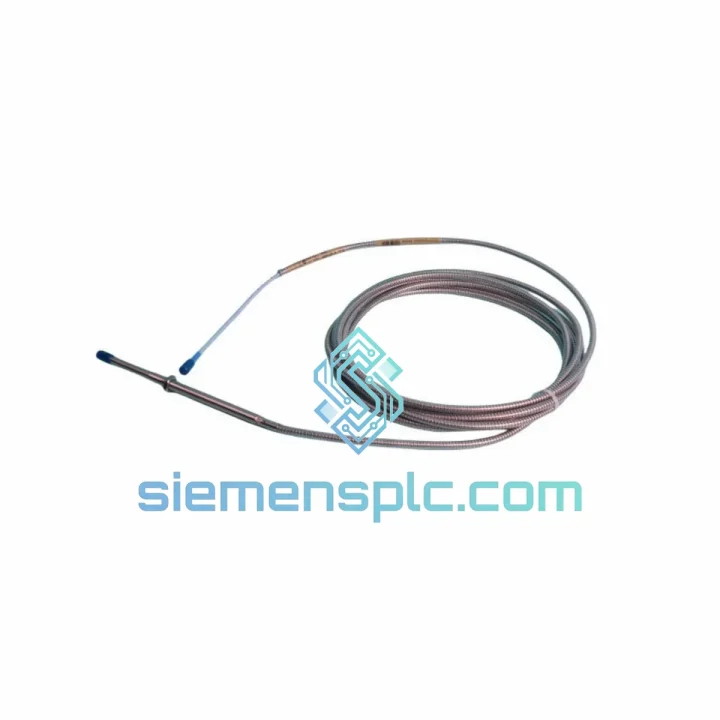

Bently Nevada 330104-12-17-10-02-00 Proximity Transducer

330104-12-17-10-02-00: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour a turbine or compressor sits idle costs real money. When your Bently Nevada 330104-12-17-10-02-00 proximity transducer fails, you don’t have time for a 6-week OEM lead time. We stock this unit in Xiamen, tested and ready to clear customs today. One call, one shipment, one less crisis.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that 80% of 330104 failures fall into three buckets. Here’s how to diagnose fast and swap clean:

Fault 1 — Gap Voltage Out of Range (most common)
The 3300 XL system expects a gap voltage between –10 VDC and –18 VDC at nominal air gap (typically 50 mil / 1.27 mm). If your monitor is throwing a Not OK or the gap voltage reads outside this window, the probe tip is either damaged or the driver (proximitor) has failed. Swap the probe first — it’s cheaper. If gap voltage normalises, you’re done. If not, the 330180-series driver is your next target.

Fault 2 — Intermittent Signal / High Noise Floor
Nine times out of ten this is a connector or cable issue, not the transducer itself. Before condemning the 330104-12-17-10-02-00, inspect the MIL-spec connector at the junction box for corrosion or fretting. Torque to spec (finger-tight plus 1/4 turn). Check the extension cable for kinks near the conduit entry — that 17-foot run takes abuse. If noise persists after cable inspection, the probe coil is likely cracked; replace the full transducer assembly.

Fault 3 — Monitor Alarm After Replacement
You’ve installed the new 330104 and the monitor still alarms. Check these in order: (1) Verify the gap is set correctly — use a non-ferrous feeler gauge or the driver’s built-in gap meter output. Target: –12 VDC ±1 V at nominal gap. (2) Confirm the driver scale factor matches the monitor channel configuration — 200 mV/mil for this series. A mismatch here will give you a perfectly healthy transducer reading a false vibration level. (3) If using a 3500 monitor, navigate to the channel configuration and verify the transducer type is set to 3300 XL 8mm, not the 11mm variant.

Replacement Procedure (field-condensed):

• De-energise the monitor channel — do NOT hot-swap on a live SIL loop without a bypass in place.
• Disconnect the extension cable at the junction box, not at the probe — the probe-to-cable joint is factory-sealed and should not be disturbed.
• Install the new 330104-12-17-10-02-00 and route the cable with a minimum bend radius of 50 mm.
• Re-energise and verify gap voltage at the driver test point before releasing the bypass.
• Log the replacement in your machinery history — API 670 audits will ask for it.

Reliability in Harsh Conditions

The 3300 XL 8mm series was engineered for environments that destroy lesser sensors. The probe body is machined from 316 stainless steel with a PEEK tip — it handles the hydrogen-rich atmospheres inside centrifugal compressors and the thermal cycling of steam turbine bearing housings without drift. Vibration immunity is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the broadband excitation profiles you see on high-speed machinery above 3,000 RPM.

Moisture ingress is the silent killer of eddy-current systems. The 330104’s cable assembly is rated IP67 at the connector interface, and the driver housing carries an IP54 rating — adequate for outdoor installations with a weatherproof enclosure. In tropical or coastal environments (humidity >85% RH sustained), we recommend applying a conformal coating to the driver PCB during scheduled maintenance. Units we ship from Xiamen are stored in climate-controlled conditions and vacuum-sealed for transit to prevent oxidation of the probe tip coil.

Operating temperature range of –35°C to +121°C at the probe covers virtually every rotating machinery application from Arctic LNG facilities to hot-section gas turbine bearing pedestals. The extension cable uses a fluoropolymer jacket rated to +200°C for installations near exhaust casings.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport (XMN), a major DHL and FedEx hub for industrial freight. Here’s what happens after you confirm your order:

• Same day (order before 14:00 CST): Unit pulled from stock, functional test completed, export documentation prepared (commercial invoice, packing list, HS code 9031.80 for customs clearance).
• Day 1: DHL Express or FedEx International Priority pickup. Tracking number sent to your email within 2 hours of handover.
• Day 2–3: Delivery to most of Southeast Asia, Japan, South Korea, Middle East, and Europe. North America typically Day 3–4 depending on customs clearance speed.
• Customs support: We provide a detailed technical description and correct HS classification to minimise customs holds. For customers in the EU, we can ship DDP (Delivered Duty Paid) on request.

For critical shutdowns where every hour counts, contact us on WhatsApp — we can coordinate airport-to-airport freight with same-day departure on request.
