Bently Nevada 330104-12-22-10-02-00 Proximity Transducer

330104-12-22-10-02-00 — Every Hour of Downtime Costs More Than This Module

Your turbine is down. The DCS is throwing a Not OK alarm on the proximity channel. Maintenance is standing by. Procurement is calling. You already know the answer — the 3300 XL transducer loop is dead and you need a verified replacement on-site before the next shift. That’s exactly why this unit is on the shelf in Xiamen right now, packed and ready to move via DHL Express to your plant gate within 24 hours of order confirmation.

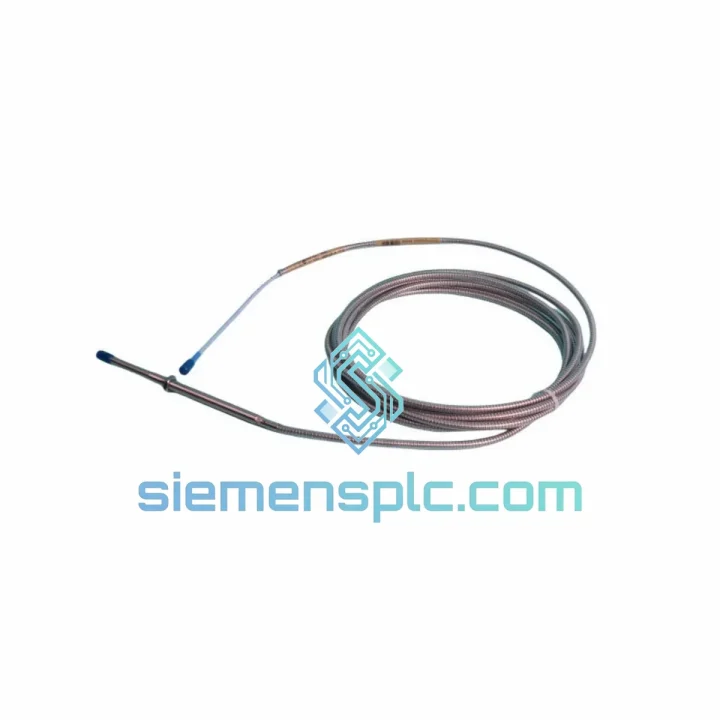

The Bently Nevada 330104-12-22-10-02-00 is a complete 3300 XL 8 mm eddy-current proximity transducer system comprising a probe, integral cable (22 in / 560 mm), and extension cable (10 ft / 3 m). It is the workhorse of rotating machinery protection — used on steam turbines, gas compressors, centrifugal pumps, and gearboxes across oil & gas, power generation, and petrochemical facilities worldwide. When this part fails, nothing else matters until it’s back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of 3300 XL field failures, these are the fault patterns that show up again and again:

Fault 1 — Gap Voltage Out of Range (most common). The Proximitor output reads outside the −10 to −18 VDC window. Before condemning the probe, check the gap physically. The 330104 series targets AISI 4140 steel at a nominal gap of 1.0 mm (40 mil). If the shaft has been re-machined or the bearing has shifted, re-gap first. If gap is correct and voltage is still wrong, the probe coil is open or shorted — replace the transducer system as a matched set (probe + extension cable + Proximitor).

Fault 2 — Intermittent Signal / High Noise Floor. Nine times out of ten this is a connector issue at the probe-to-extension cable junction or at the Proximitor input. Inspect the BNC/TNC connector for fretting corrosion, especially in high-vibration environments. Clean with contact cleaner, re-torque to spec. If noise persists after connector service, the extension cable shield is compromised — replace the cable.

Fault 3 — System 1 / 3500 Monitor Showing Not OK After Replacement. The 3300 XL system is impedance-matched. You cannot mix probe lengths, cable lengths, or Proximitor models arbitrarily. The 330104-12-22-10 encodes probe 12 in / cable 22 in / extension 10 ft. Swapping in a different length combination will shift the scale factor and throw the monitor into alarm even if the hardware is functional. Always replace with the identical part number.

Replacement Procedure (field-verified steps):

• De-energize the Proximitor driver (remove −24 VDC supply) before disconnecting cables — hot-swapping can damage the driver circuit.
• Document the existing gap voltage before removal (photograph the meter reading). Target is −10.0 to −10.5 VDC at nominal 1.0 mm gap for this series.
• Remove the probe from the bracket. Note the thread engagement depth — mark the housing with a paint pen before removal.
• Install the new 330104-12-22-10-02-00 to the same thread depth. Re-energize and measure gap voltage. Adjust gap in 0.1 mm increments until output is within spec.
• Verify the 3500 monitor channel goes OK and the System 1 trend resumes without spikes before returning the machine to service.
• No firmware update or address configuration is required — this is a passive analog transducer system.

Reliability in Harsh Conditions

The 3300 XL series was engineered for the environments where most sensors fail. The 330104 probe body is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip — chemically inert against hydrocarbon condensate, H2S, and aggressive cleaning solvents. The integral cable uses a fluoropolymer jacket rated to 121 °C continuous, which means it survives the radiant heat of a steam turbine bearing housing without insulation breakdown.

Vibration immunity is not an afterthought. The probe assembly is rated to withstand 20 g sinusoidal vibration across 10–2,000 Hz — the same frequency band that destroys conventional contact sensors within weeks on a high-speed compressor. The eddy-current principle means there is no moving part, no contact wear, and no fatigue failure mechanism in the sensing element itself. Mean time between failures on properly installed 3300 XL probes in clean service routinely exceeds 10 years.

Humidity and condensation are handled by the hermetically sealed probe tip. The extension cable connectors are the only ingress vulnerability — ensure they are protected with the OEM connector boots and routed away from direct water spray. In offshore or coastal installations, apply a thin coat of dielectric grease to the connector threads at each annual inspection.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is what happens after you confirm your order:

• Day 0 (Order Confirmed): Unit is pulled from bonded warehouse stock, inspected, and packed in anti-static foam with OEM documentation. Export invoice and packing list are generated.
• Day 1 (Dispatch): Shipment handed to DHL Express or FedEx International Priority. Tracking number issued to your email within 2 hours of pickup scan.
• Day 2–4 (Transit): Direct routing to major hubs — Frankfurt, Dubai, Singapore, Los Angeles, Houston. No intermediate consolidation that adds delay.
• Day 3–5 (Delivery): Door-to-door delivery to most industrial destinations in Europe, Middle East, Southeast Asia, and North America. Remote sites may add 1–2 days.

All shipments include a commercial invoice with correct HS code (8543.70 for proximity transducers), enabling smooth customs clearance. For EU customers, we can provide an EUR.1 movement certificate on request. Duties and import VAT are the buyer’s responsibility unless DDP (Delivered Duty Paid) terms are agreed in advance — contact us to arrange DDP pricing for your country. Bulk orders of 5 units or more qualify for consolidated air freight with reduced per-unit shipping cost.
