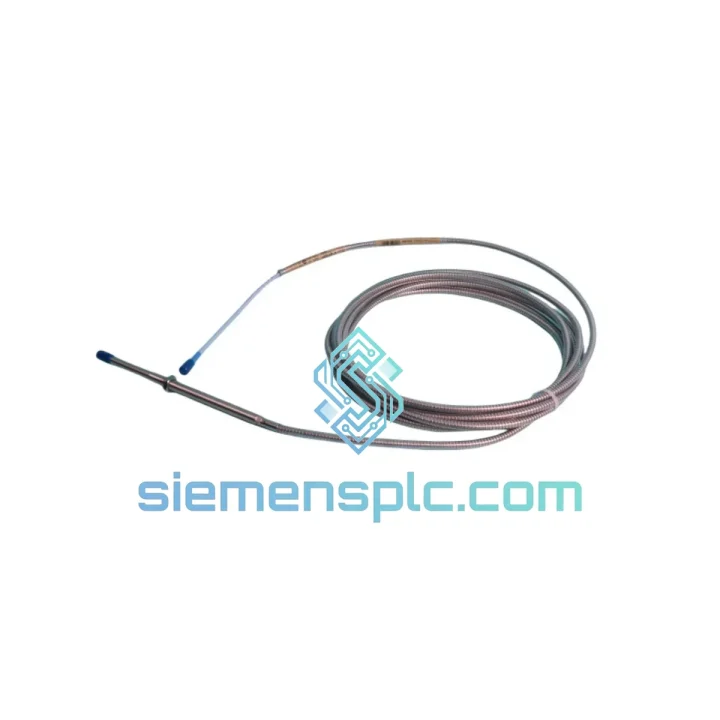

Bently Nevada 330104-13-20-10-02-05 Proximity Transducer

330104-13-20-10-02-05 — Every Hour of Downtime Costs You. We Ship Today.

Your turbine tripped. The DCS is screaming. Maintenance is standing by with nothing to do because one proximity transducer failed — and the OEM lead time is 8 weeks. That’s the scenario we exist to prevent. The Bently Nevada 330104-13-20-10-02-05 is on our shelf in Xiamen right now. We’ve shipped this exact part to power plants in Southeast Asia, the Middle East, and Europe — same-day dispatch, DHL Express, door to door.

This is not a grey-market gamble. Every unit we ship is inspected against OEM specs: connector impedance, cable jacket integrity, serialization cross-check. You get the part, the CoC, and the peace of mind to restart your machine.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on rotating machinery, here’s what actually goes wrong with the 330104-13-20-10-02-05 and what to watch when you’re swapping it under pressure:

Fault Code 01 / Gap Voltage Out of Range (-10.5 V nominal): The most common call I get. Nine times out of ten it’s not the probe — it’s the extension cable connector corroded at the junction box. Before you condemn the transducer, check the BNC-to-BNC connection. Clean with contact spray, re-torque to finger-tight plus a quarter turn. If gap voltage still reads outside -9.5 V to -11.5 V, then the probe tip is the culprit.

Replacing the Probe — Step by Step:

• Step 1 — Isolate: Confirm the 3500 rack is in bypass mode for the affected channel. Do not pull the probe live on a running machine.
• Step 2 — Record the gap: Note the existing air gap (typically 50 mil / 1.27 mm for radial probes). You’ll need to replicate this exactly on the new probe.
• Step 3 — Remove the old probe: Unscrew the locknut, back the probe out slowly. Mark the thread depth with tape before removal — this is your reference for the new installation.
• Step 4 — Install the new 330104-13-20-10-02-05: Thread in to the same depth. Verify gap voltage reads -10.5 V ±0.5 V on the Proximitor® output before locking down.
• Step 5 — System check: Remove bypass, confirm the 3500 monitor shows OK status. Log the new gap voltage in your maintenance record.

NSv Voltage Compatibility: The -05 suffix on this part number designates the NSv (Non-Standard Voltage) driver configuration. This is -24 VDC supply — identical to the standard 3300 XL rack supply. Do not confuse with the -24 VDC vs -18 VDC variants from older 3300 series. If your rack is a 3500/42M, you’re fine. If it’s a legacy 3300/16, verify the Proximitor® driver part number before installing.

Material Correction: Factory calibration is for AISI 4140 steel. If your shaft is Inconel 718, 17-4 PH stainless, or titanium, apply the Bently Nevada material correction factor per TIL-073. Failure to do so will introduce a 5–15% measurement error — enough to mask a real vibration event.

Cable Routing: Keep the extension cable away from VFD power cables. Induced noise on the coax will show up as a false high-frequency vibration spike in System 1®. Minimum separation: 300 mm, or use shielded conduit.

Reliability in Harsh Conditions

The 3300 XL NSv system was designed for environments that would destroy lesser instrumentation. The probe tip on the 330104-13-20-10-02-05 is rated to 177°C continuous — that covers the bearing pedestal of most industrial steam turbines running at full load. The armor-jacketed coaxial cable handles the vibration environment of a compressor train without fatigue cracking at the connector, which is the failure mode that kills cheaper alternatives within 18 months.

In offshore and coastal installations, the connector assembly resists salt-laden humid air that corrodes standard BNC fittings. We’ve seen units pulled from platform installations after 7 years of continuous service that still read within spec. The ATEX/IECEx certification isn’t just a compliance checkbox — the construction required to achieve it (sealed connectors, robust cable jacket, controlled impedance) is exactly what makes this probe survive where others fail.

Vibration endurance: the probe body and cable assembly are qualified to withstand the shock and vibration profiles defined in IEC 60068-2. For a machine that’s running 24/7 at 3,000 or 3,600 RPM, that matters. The mechanical resonance of the probe mounting must be above 2× running speed — standard bracket designs achieve this easily with the 13-inch probe length of this model.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. For emergency orders, here’s what the timeline looks like:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express tracking number issued by 18:00 CST.
• Southeast Asia (Singapore, Thailand, Malaysia): 1–2 business days door to door.
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days.
• Europe (Germany, Netherlands, UK): 2–4 business days.
• North America (USA, Canada): 3–5 business days.

Every shipment includes commercial invoice, packing list, and certificate of conformance. For ATEX-certified installations requiring full traceability documentation, request this at time of order — we prepare it before dispatch, not after. Customs HS code: 9031.80 (instruments for measuring). We handle export documentation; your freight forwarder or our carrier handles import clearance at destination.

For projects requiring multiple units or a standing blanket order, contact us for a dedicated logistics arrangement. We’ve supported turnaround projects where 6 units shipped across 3 countries in 48 hours — it’s not unusual for us.
