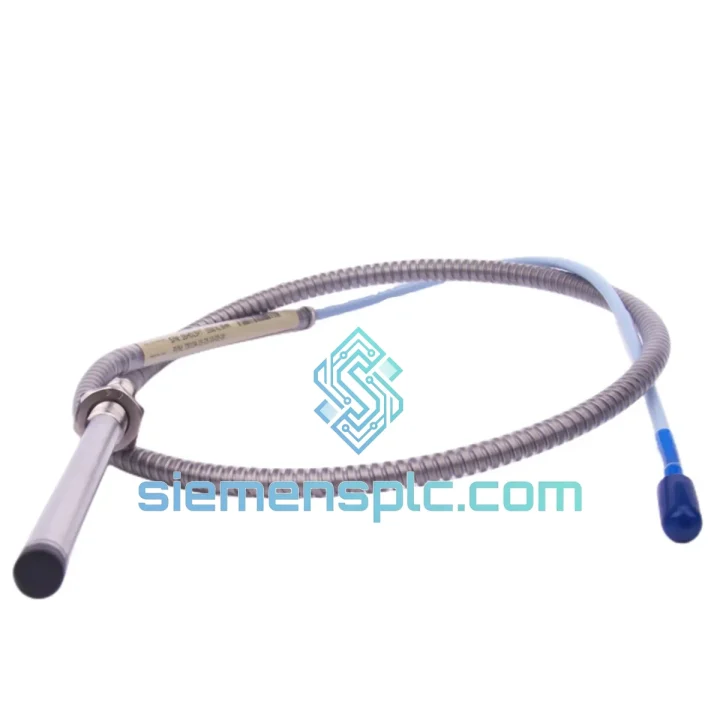

Bently Nevada 330104-15-23-10-02-00 Proximity Transducer System – 3300 XL Series

Bently Nevada 330104-15-23-10-02-00: Eddy-Current Proximity Transducer System for Rotating Machinery Protection

The Bently Nevada 330104-15-23-10-02-00 is a complete 3300 XL 8mm proximity transducer system engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in critical rotating machinery. Within a machinery protection architecture, this transducer system occupies the front-end sensing layer — converting mechanical displacement into a calibrated DC voltage signal that feeds directly into monitor rack inputs such as the Bently Nevada 3500 series. Its role is deterministic: any deviation in shaft orbit, thrust position, or rotor eccentricity is captured at the probe tip and transmitted with sub-millisecond latency to the protection logic, enabling trip decisions before mechanical damage propagates.

The system ships as a matched assembly: a 15 ft (4.57 m) probe cable terminated at the probe body, a 23 ft (7.01 m) extension cable, and an oscillator-demodulator driver. The -10 Vdc output at 200 mil (5.08 mm) nominal gap and 200 mV/mil (7.87 V/mm) sensitivity are factory-calibrated as a system — substituting individual components from different lot codes without recalibration introduces scale-factor error that invalidates API 670 alarm setpoints.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330104-15-23-10-02-00 operates on the eddy-current (electromagnetic induction) principle. The probe tip contains a wound coil energized at a fixed carrier frequency by the oscillator-demodulator driver. When a conductive target surface (shaft) enters the probe’s electromagnetic field, eddy currents are induced in the shaft material, loading the coil and reducing its effective inductance. The driver circuit detects this impedance change and converts it to a proportional DC voltage output. The relationship between gap distance and output voltage is linear within the calibrated range — typically ±25% of the nominal gap — with a scale factor guaranteed to ±1% across the operating temperature range when used as a matched system.

EMC robustness is achieved through coaxial cable construction with continuous shield coverage from probe tip to driver input, maintaining characteristic impedance and rejecting common-mode interference from adjacent power cables, VFD switching noise, and RF sources common in turbine halls. The driver’s internal oscillator operates at a frequency selected to avoid aliasing with typical machinery fault frequencies (1×, 2×, sub-synchronous), ensuring the demodulated output faithfully represents shaft motion without spectral contamination.

The extension cable in this assembly uses a matched impedance specification — substituting a non-matched cable alters the resonant frequency of the probe-cable-driver circuit, shifting the scale factor and introducing non-linearity at the extremes of the measurement range. This is a frequently overlooked failure mode in field maintenance; the 330104-15-23-10-02-00 ships as a pre-matched, serialized assembly to eliminate this risk.

Thermal stability is maintained by the driver’s temperature-compensated oscillator circuit, which corrects for coil resistance drift across the –35°C to +177°C probe tip range. This is particularly relevant in steam turbine applications where probe tip temperatures can vary by 100°C between cold startup and full-load operation, a condition that would introduce a 2–5% scale factor error in uncompensated designs.

System Integration Benefits

• Direct API 670 compliance: The system’s calibrated output maps directly to the alarm and danger setpoints defined in API 670 machinery protection standards, eliminating the need for field calibration adjustments during commissioning.
• Deterministic signal latency: The DC-coupled output path from probe tip to monitor input introduces no signal processing delay beyond cable propagation time (<1 µs for standard cable lengths), preserving the time-domain integrity of transient events such as rub or surge.
• Plug-and-play monitor compatibility: The –10 Vdc / 200 mV/mil output is the native input specification for Bently Nevada 3500 series monitor cards, requiring no signal conditioning or scaling at the rack level.
• Diagnostic transparency: The raw voltage output is accessible at the driver’s BNC test point, allowing field technicians to verify gap voltage and scale factor with a standard DVM without interrupting the protection loop.
• Redundant sensing architecture support: Two 330104 systems can be installed at 90° (X-Y configuration) on a single bearing journal to provide full orbit analysis, enabling separation of unbalance, misalignment, and rub signatures in the frequency domain.
• Hazardous area certification: ATEX Zone 1/2 and FM/CSA approvals allow installation in hydrogen-cooled generators, gas compressor trains, and other classified areas without additional barrier hardware in most configurations.
• Long-term calibration stability: The eddy-current sensing mechanism has no moving parts and no wear mechanism; field experience documents scale factor drift of <0.5% over 5-year service intervals in clean industrial environments.
• Reduced commissioning time: Factory-matched probe-cable-driver assemblies arrive with a serialized calibration certificate, eliminating the multi-hour field calibration procedure required when assembling components from separate lot codes.

Quality Assurance & Global Logistics

Every Bently Nevada 330104-15-23-10-02-00 unit supplied by siemensplc.com is sourced through verified procurement channels with full lot traceability. Physical inspection covers label integrity, date code consistency, connector condition, and part number verification against the Bently Nevada product catalog. Where feasible, functional bench verification of output voltage at a known gap distance is performed prior to packaging.

Units are dispatched from our Xiamen, China operations center. Xiamen’s port infrastructure supports same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide services, with typical transit times of 3–5 business days to Southeast Asia and the Middle East, 5–7 days to Europe, and 6–9 days to the Americas. All shipments include a commercial invoice, packing list, and country of origin certificate as standard. A Certificate of Conformance (COC) is available upon request at no additional charge. Export documentation is prepared in compliance with applicable EAR/ECCN regulations. Packaging uses anti-static foam inserts and moisture-barrier bags to protect the coaxial connectors and probe tip during transit.
