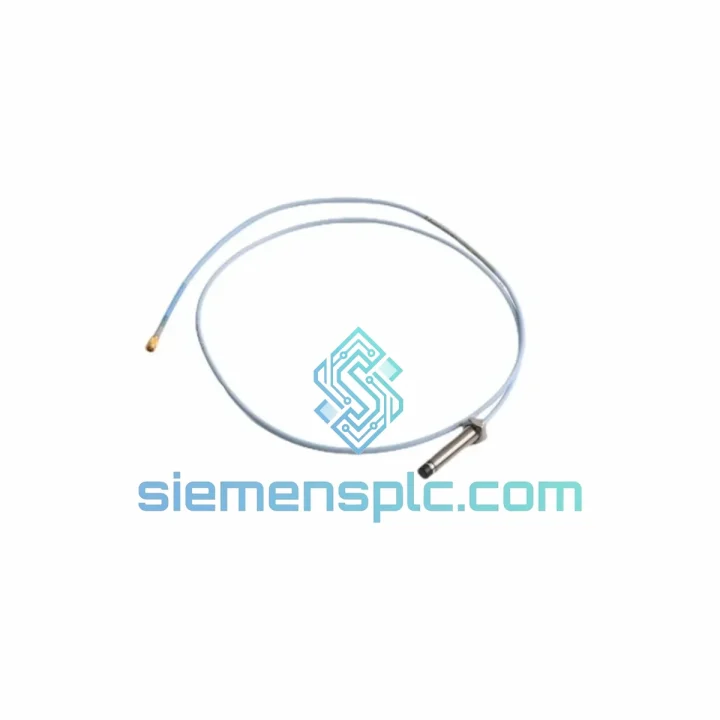

Bently Nevada 330105-00-05-10-02-00 Proximity Probe

330105-00-05-10-02-00 In Stock Now — Every Hour of Downtime Costs You More Than This Probe

Your turbine is down. The vibration monitor is throwing a -24 VDC bias loss or a gap voltage out-of-range alarm. Maintenance has traced it to the proximity probe. You need a Bently Nevada 330105-00-05-10-02-00 — and you need it today, not in six weeks from an OEM lead time queue.

We stock this probe in Xiamen. It ships within 24 hours via DHL Express or FedEx International Priority. For a plant running at $50,000/hour production value, the cost of this probe is noise. The cost of waiting is not.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The three failure modes that send engineers searching for this part number:

1. Gap Voltage Drift / Out-of-Range Alarm
The 3500 monitor flags a gap voltage outside the –10 V to –18 V window (for a 2 mm nominal gap). Before condemning the probe, check the extension cable connector at both ends — the TNC or BNC crimp joint is the first failure point in high-vibration environments. If the connector checks out and gap voltage is still reading –2 V or lower (probe too close) or –22 V or higher (probe too far or open circuit), the probe coil has likely failed. Resistance across the probe tip coil should read approximately 6–8 Ω. An open or shorted coil confirms replacement.

2. High 1× Vibration Reading with No Process Change
Sudden spike in 1× amplitude without any change in machine load or speed is a classic probe contamination or mechanical damage signature. Inspect the probe tip for metallic debris buildup — conductive particles bridging the gap will corrupt the eddy-current field. Clean with isopropyl alcohol. If the tip is physically damaged (chipped ceramic, bent housing), replace immediately. Do not attempt to re-gap a damaged probe; the linear range calibration is void.

3. Intermittent Signal / Noise Floor Elevation
High noise floor on the vibration channel (visible as broadband hash on the spectrum) with no discrete frequency peaks usually points to a compromised coaxial shield in the integral cable. Flex the cable near the probe body while watching the raw gap voltage on the monitor — if the voltage fluctuates with cable movement, the shield is broken internally. This is not field-repairable. Replace the probe assembly.

Replacement Checklist — Do This Before You Power Up:

• Confirm total system cable length: probe integral cable (0.5 m) + extension cable must equal 5 m or 9 m for the proximitor calibration to hold. Mixing lengths invalidates the 200 mV/mil scale factor.
• Verify target material. If your shaft is 17-4 PH stainless, Inconel 718, or any non-4140 alloy, apply the Bently Nevada target material correction factor before accepting the gap voltage reading as valid.
• Set gap at mid-linear-range: 1.0–1.5 mm (40–60 mil) gap gives you the most headroom on both sides. Use a non-magnetic feeler gauge or the monitor’s gap voltage readout (–10 V to –12 V at mid-gap is your target).
• Torque the locknut to 20 N·m after gapping. Vibration will back off an under-torqued probe within hours.
• No firmware or DIP switch configuration is required for this probe — it is a passive sensing element. All configuration lives in the 3500 monitor rack (channel type, full-scale range, alert/danger setpoints). Verify those settings match your machinery protection philosophy after replacement.
• Run a static calibration check using the Bently Nevada calibrator or a precision DC voltage source before returning the machine to service. Do not skip this step on a critical machine.

Reliability in Harsh Conditions

The 330105-00-05-10-02-00 is not a laboratory instrument. It was designed for the bearing housing of a 3,000 RPM steam turbine running at 540 °C steam inlet temperature, with the probe tip sitting 1.5 mm from a shaft surface moving at 47 m/s. That is the baseline. Everything else is easier.

Vibration: The probe body and integral cable assembly are qualified to withstand the structural vibration levels present in bearing housings on API 670-monitored machinery. The M10 × 1 thread and locknut system, when properly torqued, maintains probe position under continuous vibration without creep. Field experience across thousands of installations confirms probe body loosening is an installation error, not a product failure mode.

Temperature: The –35 °C to +177 °C operating range covers the full spectrum from cold-climate outdoor installations to hot-section bearing housings on gas turbines. The integral cable insulation is rated for continuous exposure at the upper limit. Units installed in exhaust-end bearing housings on industrial gas turbines routinely accumulate 40,000+ operating hours without probe replacement.

Moisture and Chemical Exposure: The probe tip and cable assembly are sealed against ingress. In petrochemical environments where hydrocarbon mist, steam, and cleaning solvents are present, the 3300 XL probe has demonstrated consistent performance without signal degradation. The coaxial connector at the cable terminus is the only ingress vulnerability — ensure it is mated and locked to the extension cable at all times.

Electromagnetic Interference: The eddy-current measurement principle is inherently immune to capacitive and inductive interference from adjacent electrical equipment. The coaxial cable construction provides shielding against radiated EMI. In high-EMI environments (near large VFDs or switchgear), ensure the proximitor sensor enclosure is properly grounded per Bently Nevada installation guidelines.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is exactly what happens after you place an order:

• Day 0 (Order Confirmed): Unit pulled from stock, inspected, and packed. Export documentation prepared — commercial invoice, packing list, and HS Code 9031.80 classification for customs clearance.
• Day 1 (Dispatch): Shipment handed to DHL Express or FedEx International Priority. Tracking number issued to you within 2 hours of pickup scan.
• Day 2–4 (Transit): DHL Express from Xiamen reaches most of Southeast Asia in 2 days, Europe in 3–4 days, and North America in 3–5 days. FedEx International Priority timelines are comparable.
• Customs: We pre-declare all shipments with accurate HS codes and commercial values. For customers in the EU, we can ship DDP (Delivered Duty Paid) to eliminate customs clearance delays on your end. Advise us at order time if DDP is required.
• Documentation: Certificate of Conformance, inspection report, and original packing documentation ship with the unit. CITES, dual-use, or end-user certificate requirements — advise us at order time.

If your plant is in a location with known customs complexity (Brazil, India, Russia, certain Middle East jurisdictions), contact us before ordering. We have routed shipments to all of these destinations and can advise on the fastest compliant path.
