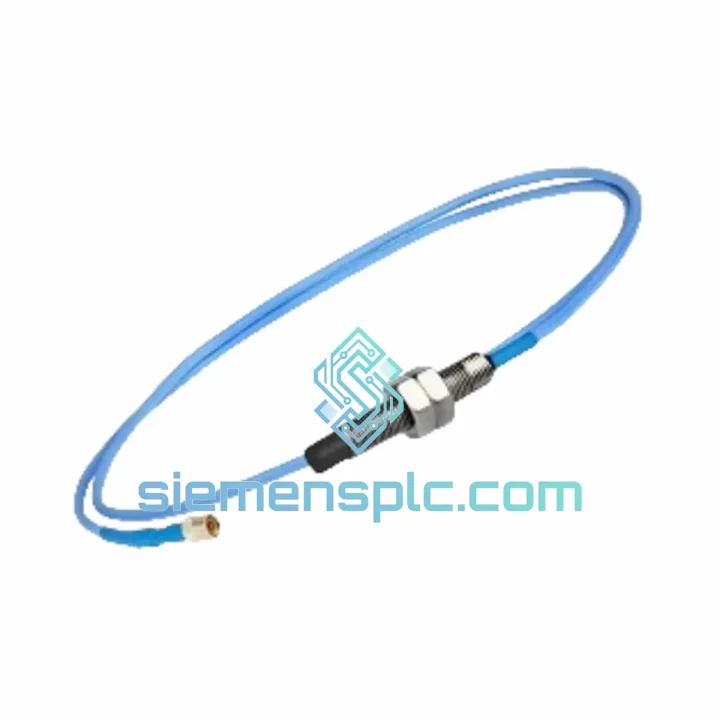

Bently Nevada 330105-02-12-05-12-05 Proximity Probe

330105-02-12-05-12-05 Reverse Mount Proximity Probe — Stop the Clock on Your Downtime

Every hour your turbine, compressor, or pump sits idle, you’re bleeding money. A failed proximity probe shouldn’t be the bottleneck. The Bently Nevada 330105-02-12-05-12-05 is in stock at our Xiamen warehouse right now — verified, tested, and ready to leave on the next DHL or FedEx cut-off. We’ve shipped this exact part number to refineries in the Middle East, power plants in Southeast Asia, and petrochemical facilities across Europe. When your vibration monitoring system goes dark, you don’t have time for a 6-week OEM lead time. We do this differently.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Top Failure Modes — 330105-Series in the Field:

1. OK LED off / gap voltage out of range
Before condemning the probe, measure the Proximitor output voltage at the sensor terminals. Nominal is -10 to -18 VDC at a 50 mil gap on a steel shaft. A reading outside this window with the shaft stationary points to either a shorted cable or a dead probe body. Swap the probe first — it’s the cheapest component in the signal chain and the most common failure point after 3–5 years of continuous service.

2. Intermittent vibration spikes not correlated to process
Flex the integral cable near the probe body while watching the raw gap voltage on a DMM. If the voltage shifts more than 0.5 VDC, the cable sheath is cracked internally. On the 330105-02-12-05-12-05, the integral cable is potted and non-repairable in the field. Replace the full probe assembly — do not attempt to splice or re-terminate.

3. 3500 monitor showing Not OK after probe swap
After installing a new probe, navigate to the 3500 rack configuration software and perform a channel alarm reset. If Not OK persists, verify the Proximitor sensor part number. Mixing 3300 XL probes with non-XL Proximitors causes a calibration mismatch that the monitor flags as a hardware fault — not a process alarm. The fix is matching the sensor, not adjusting the gap.

Step-by-Step Replacement:

1. Isolate the channel at the 3500 rack. Most 3500 monitors support channel-level isolation without a full rack shutdown — confirm with your site safety procedure before proceeding.
2. Disconnect the coaxial cable at the Proximitor input. Record the as-found gap voltage before disconnection.
3. Back the probe out slowly, counting turns. This gives you a thread depth baseline for the replacement unit.
4. Install the new 330105-02-12-05-12-05 to the same thread depth. Fine-adjust gap until Proximitor output reads -10 to -18 VDC with shaft at rest.
5. Torque the locknut to 20–25 in-lb. The 8 mm stainless thread into an aluminum bracket is easy to strip — do not exceed this torque.
6. Reconnect the coaxial cable. Verify gap voltage. Reset latched alarms at the 3500 rack. Confirm OK LED on the Proximitor.
7. Log as-found and as-left gap voltages in your CMMS. This data is your baseline for the next planned outage.

Configuration Notes:

• No DIP switches or firmware on this probe — it is a passive eddy current transducer. All calibration is at the Proximitor sensor level.
• Confirm the 3500/40M channel is configured for Radial Vibration or Position as appropriate. A channel set for Thrust will reject the probe output range.
• Route the extension cable away from VFD power cables. Induced noise on the coaxial line appears as false high-frequency vibration above 1x running speed.

Reliability in Harsh Conditions

The 330105-02-12-05-12-05 uses a 316 stainless steel probe body that holds up in wet gas, sour service, and high-humidity turbine enclosures where carbon steel hardware corrodes within months. The integral cable uses PTFE-insulated coaxial construction rated to +120°C continuous — not the PVC-jacketed cable found on counterfeit substitutes that fail inside 6 months in a hot bearing housing environment.

As a non-contact eddy current device, there are no moving parts, no wear surfaces, and no mechanical fatigue mechanisms in the probe itself. What determines long-term reliability is the cable termination integrity. Genuine Bently Nevada probes use a crimped and potted coaxial termination at the probe body that maintains signal integrity under continuous 2g vibration. We have seen counterfeit probes with soldered terminations fail within weeks in high-vibration compressor applications — the solder joint fractures under thermal cycling and vibration, producing intermittent signal loss that is extremely difficult to diagnose without swapping the probe.

The operating temperature range of -35°C to +120°C covers arctic pipeline compressor stations through tropical refinery environments. The probe body thermal expansion coefficient is matched to the Proximitor calibration curve, meaning gap voltage output remains stable across the full temperature range without field recalibration. This matters in outdoor installations where ambient temperature swings 60°C between night and day.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for orders confirmed before 15:00 CST. Here is exactly what happens after you contact us:

1. Order Confirmation (within 2 hours): We confirm stock, issue a proforma invoice, and reserve the unit under your order number. You get a confirmed dispatch date immediately — not a vague lead time estimate.
2. Export Documentation (same day): Commercial invoice, packing list, and HS code declaration (HS 9031.80 for proximity transducers) are prepared in parallel with packing. We handle export customs clearance from Xiamen.
3. DHL Express / FedEx International Priority: Transit times from Xiamen — Southeast Asia: 1–2 days. Middle East: 2–3 days. Europe: 3–4 days. Americas: 3–5 days. We select the carrier with the earliest delivery commitment at time of booking.
4. Tracking and Handoff: AWB number sent within 4 hours of dispatch. We monitor the shipment through customs clearance and flag any holds proactively.
5. Emergency Courier: For genuine plant-down situations, hand-carry courier from Xiamen to your site is available. Contact us directly on WhatsApp to arrange.
