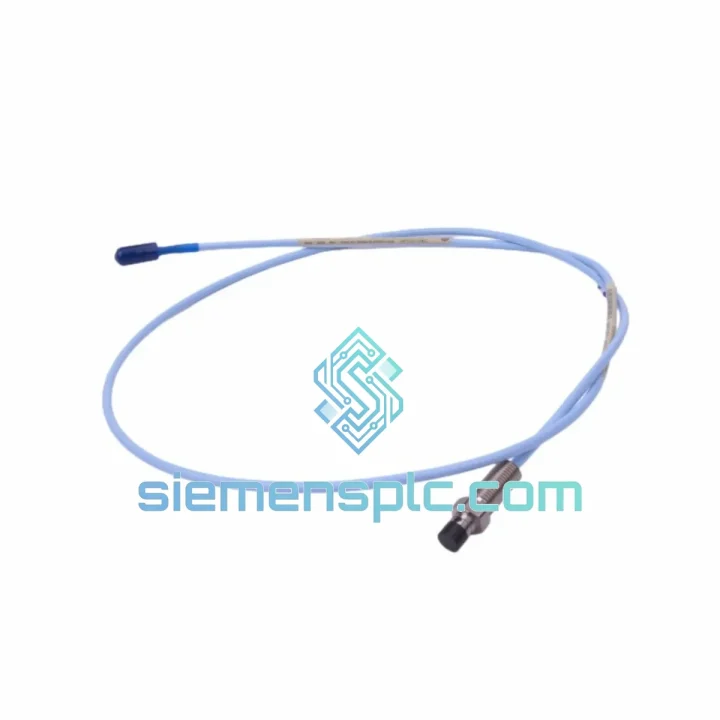

Bently Nevada 330105-02-12-10-02-05 Proximity Probe – 3300 XL Series

Bently Nevada 330105-02-12-10-02-05 — 3300 XL 8 mm Reverse Mount Eddy-Current Proximity Probe: Structural Role in Rotating Machinery Condition Monitoring

The Bently Nevada 330105-02-12-10-02-05 is an 8 mm eddy-current proximity probe configured in a reverse-mount geometry, designed as a primary sensing element within the 3300 XL continuous monitoring system. Its function is to convert mechanical displacement — specifically radial shaft vibration and static position — into a proportional DC voltage signal that feeds directly into compatible 3300 XL driver/monitor assemblies. Unlike contact-type transducers, the eddy-current operating principle imposes zero mechanical load on the observed shaft, preserving the integrity of the measurement across the full rotational speed range from slow-roll to trip speed.

In a typical turbomachinery protection loop, this probe occupies the first node in the signal chain: shaft gap → probe tip → coaxial cable → driver → monitor → DCS/PLC. Any error introduced at this node — whether from probe substitution with an incompatible sensitivity, incorrect gap setting, or degraded cable — propagates uncorrected through the entire loop. The 330105-02-12-10-02-05 is factory-calibrated to a nominal sensitivity of 7.87 V/mm (200 mV/mil) and a linear range of 0.25 mm to 2.25 mm (10–90 mil), parameters that must be matched precisely to the driver module’s internal compensation network to maintain system accuracy within ±1% of full scale.

The reverse-mount configuration — where the probe body threads through the bearing housing from the back face — addresses a specific installation constraint common in compact turbine and compressor casings where front-access clearance is insufficient. The integral coaxial connector exits from the rear, routing the signal cable away from high-temperature zones near the bearing journal. This geometry also simplifies probe replacement during scheduled outages without disturbing the bearing assembly itself.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330105-02-12-10-02-05 operates on the Lenz’s law induction principle: a high-frequency oscillator within the paired driver module drives an AC current through the probe’s internal coil, generating an electromagnetic field at the tip. When a conductive target enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and reducing coil impedance. The driver’s demodulation stage converts this impedance change into a linear DC voltage output — the gap signal.

EMC Design: The coaxial cable architecture provides inherent shielding against capacitively coupled interference. The shield is grounded at the driver end only (single-point grounding), preventing ground-loop currents that would appear as low-frequency noise on the gap signal. In environments with high-frequency switching noise (VFD cabinets, SCR drives), the 3300 XL system’s driver module incorporates a low-pass filter stage with a −3 dB corner frequency above the maximum shaft rotational frequency but below the switching frequency of adjacent power electronics — typically set at 10 kHz for most turbomachinery applications.

Thermal Stability: The probe body is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip housing. PEEK’s low thermal expansion coefficient (50 × 10⁻⁶ /°C) minimizes dimensional change at the tip across the −35 °C to +177 °C operating range, preserving the gap-to-voltage transfer function without temperature compensation correction at the monitor level. This is particularly significant in steam turbine applications where bearing housing temperatures can cycle ±60 °C between cold startup and full-load steady state.

Reverse-Mount Mechanical Integrity: The probe threads into a machined boss on the bearing housing rear face using a standard M10 × 1.0 thread form. A locknut and jam nut arrangement secures the probe at the calibrated gap depth — typically 1.0 mm (40 mil) for 8 mm probes on steel shafts — and prevents axial migration under vibration. The reverse-mount geometry positions the probe body in a lower-temperature zone compared to front-mount configurations, extending insulation life on the integral cable.

System Integration Benefits

• Direct loop compatibility with 3300 XL monitors: The probe’s calibrated sensitivity of 7.87 V/mm matches the input scaling of 3300/16 and 3500/42 monitor cards without requiring software gain correction, preserving the monitor’s full 16-bit ADC resolution across the measurement range.
• Deterministic signal latency: The analog signal path from probe tip to monitor input introduces less than 50 µs of propagation delay, ensuring that trip logic in the monitor responds within one shaft revolution at speeds up to 20,000 RPM — a requirement for API 670 overspeed protection compliance.
• Plug-and-play replacement without recalibration: Because the 330105-02-12-10-02-05 is factory-matched to the 3300 XL driver’s compensation network, a like-for-like swap does not require loop calibration verification beyond a static gap check — reducing planned outage duration by eliminating the calibration hold point.
• Diagnostic transparency via gap DC output: The driver’s DC output voltage at the nominal gap (−10.0 VDC at 1.0 mm gap) provides a continuous, measurable indicator of probe-to-shaft clearance. Trending this value over time detects bearing wear, shaft centerline migration, and probe tip erosion before they affect vibration measurement accuracy.
• Non-contact measurement preserves shaft surface integrity: Zero mechanical contact eliminates fretting wear on shaft journals that would occur with contact-type sensors, maintaining the surface finish required for accurate eddy-current response and preventing the introduction of stress risers on rotating components.
• High-temperature rating supports turbine applications: The 177 °C probe body rating covers the bearing housing temperatures encountered in industrial steam turbines operating at inlet conditions up to 540 °C / 140 bar, where bearing housing external surface temperatures typically reach 120–150 °C.
• ATEX/IECEx certification enables hazardous-area deployment: The probe’s certified classification permits installation in Zone 1 and Zone 2 hazardous areas (gas groups IIA/IIB) without additional intrinsic safety barriers at the probe end, simplifying the field wiring design for petrochemical and offshore applications.
• Standardized coaxial interface reduces field wiring errors: The integral coaxial connector with defined impedance (50 Ω characteristic) eliminates impedance mismatch errors that occur when field-assembled cable assemblies use non-specified connectors, a common source of sensitivity drift in legacy installations.

Quality Assurance & Global Logistics

Every Bently Nevada 330105-02-12-10-02-05 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full chain-of-custody traceability. Physical inspection covers label integrity, connector condition, cable jacket continuity, and tip surface condition. Units are cross-checked against Bently Nevada published dimensional and electrical tolerances before warehousing. Shipments are packed in anti-static, OEM-specification packaging with tamper-evident sealing.

Logistics operations are based in Xiamen, China, with established freight partnerships covering DHL Express, FedEx International Priority, and consolidated sea freight (LCL/FCL) for volume orders. In-stock units are typically dispatched within 1–3 business days. Export documentation — commercial invoice, packing list, certificate of origin, and FORM E on request — is prepared for all international shipments. All units are covered by a 12-month warranty from the dispatch date against manufacturing defects and DOA conditions.

Volume pricing is available for orders of 5 units or more. Formal proforma invoices are issued within one business day of receiving a complete RFQ. Net-30 payment terms are available for verified corporate accounts. T/T bank transfer, major credit cards, and PayPal are accepted.
