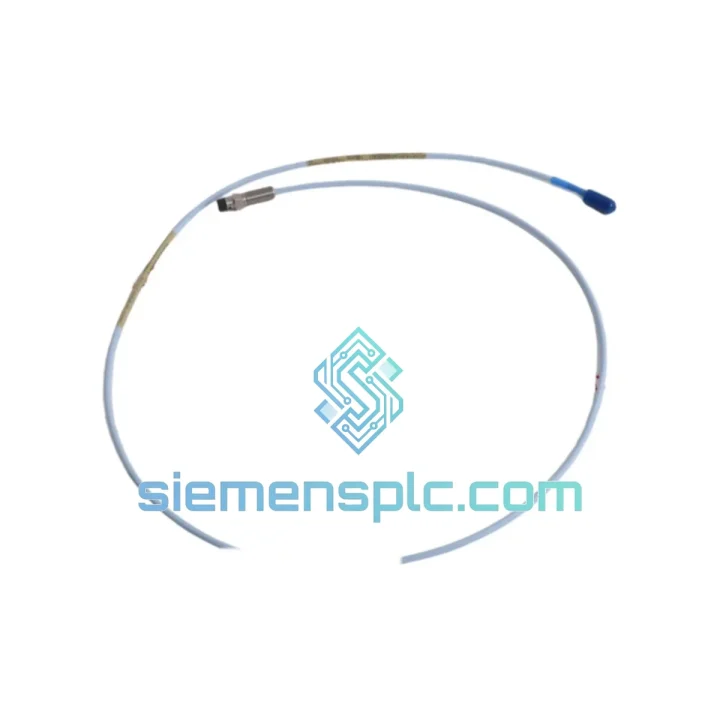

Bently Nevada 330105-02-12-10-12-00 Proximity Sensor

330105-02-12-10-12-00 In Stock — Every Hour of Downtime Costs More Than This Part

Your turbine is down. The DCS is throwing a gap voltage fault or the 3500 rack has gone into alert on channel vibration. You’ve already isolated the probe — resistance checks out, but the output is drifting or flatlined. The 3300 XL proximitor is fine. The extension cable is intact. The culprit is the probe itself: Bently Nevada 330105-02-12-10-12-00. You need a verified replacement, not a two-week lead time from the OEM. We stock it. It ships today from Xiamen.

In rotating machinery protection, a failed proximity probe doesn’t just trigger an alarm — it can force a full unit trip, lock out the turbine, and put your entire production train offline. At a refinery or power plant, that translates directly into lost throughput measured in tens of thousands of dollars per hour. The 330105-02-12-10-12-00 is a 5 mm eddy current probe with a 12-inch (305 mm) armored probe cable and a 10-meter (33-foot) extension cable, threaded M12 × 1 mm, designed as a direct drop-in for the Bently Nevada 3300 XL transducer system. No reconfiguration. No scale factor adjustment. Plug it in, set the gap, verify the DC gap voltage, and restart.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault signatures that point to a failed 330105-02-12-10-12-00 probe:

• Gap voltage out of range: Nominal gap for a 5 mm probe in a 3300 XL system is -10.0 VDC plus or minus 0.5 V at a 1.0 mm air gap. If you’re reading below -14 V or above -6 V with the shaft stationary and the physical gap correct, the probe is the first suspect — not the proximitor.
• Bently Nevada 3500 rack NOK fault: Alert/Danger on the 3500/40M or 3500/42M with a simultaneous Not OK LED on the proximitor module almost always indicates a probe or cable fault, not a process condition. Check gap voltage at the front-panel test points before condemning the proximitor.
• Intermittent spikes at slow-roll: Erratic 1X amplitude below 600 RPM that disappears at running speed — suspect a cracked probe tip or micro-fracture in the probe cable near the connector. Flex the cable while monitoring gap voltage. Any dropout confirms cable failure.
• High DC noise floor: Eddy current probes are sensitive to ground loops. If replacing the probe doesn’t resolve a noisy signal, verify the proximitor case is grounded at one point only and the extension cable shield is grounded at the proximitor end, not the probe end.

Replacement procedure — field conditions:

1. Isolate and de-energize: Follow site LOTO. The 3300 XL system runs on -24 VDC — confirm power is removed from the proximitor before disconnecting cables.
2. Record existing gap voltage: Before removal, note the DC gap voltage from the proximitor test points. This is your reinstallation baseline.
3. Remove the old probe: Use the correct spanner for the M12 thread. Do not use pliers on the probe body — the stainless housing can deform and distort the sensing field geometry. Count the turns as you remove it.
4. Inspect the probe mount: Check the bracket for cracks, corrosion, or deformation. A bent bracket makes correct gap impossible and will cause the new probe to fail prematurely.
5. Install the new 330105-02-12-10-12-00: Thread in by hand first. The M12 x 1 mm thread is fine-pitch — cross-threading is a real risk if you start with a wrench. Back off to achieve the target gap (typically 1.0 mm, confirmed by -10.0 VDC plus or minus 0.5 V at the test points).
6. Reconnect and power up: Connect the extension cable to the proximitor. Apply power and verify gap voltage. Adjust probe position in 0.1 mm increments until within spec. Lock the locknut.
7. Verify system response: Rotate the shaft by hand if accessible and confirm the 3500 monitor shows a clean vibration signal. Check that the OK relay is energized on the proximitor module.
8. No firmware or addressing required: The 330105-02-12-10-12-00 is a passive transducer. No firmware, no DIP switches, no addressing. Scale factor is fixed at 200 mV/mil and matched to the 3300 XL proximitor. Do not use this probe with a non-3300 XL proximitor without verifying scale factor compatibility first.

Reliability in Harsh Conditions

The 3300 XL probe series was built for environments where most sensors fail within months. The 330105-02-12-10-12-00 uses a stainless steel probe body with a hermetically sealed sensing tip — no exposed coil windings, no moisture ingress path. The probe cable uses double-shielded, armored construction that handles the mechanical abuse of turbine bearing housings: constant vibration, thermal cycling from cold startup to full-load temperatures, and continuous exposure to lube oil mist and steam.

The +177C probe tip rating means this sensor survives in bearing housings where competitors’ probes drift or fail outright. The extension cable is rated to +85C — more than adequate for conduit runs between the bearing housing and the local junction box in most turbine installations.

Vibration immunity is inherent to the eddy current measurement principle. Unlike accelerometers or velocity transducers, the proximity probe has no moving parts and no resonant frequency to worry about. The sensing coil is encapsulated in a solid ceramic-filled epoxy matrix that maintains dimensional stability under continuous vibration loads exceeding 20 g. This is why API 670 mandates eddy current proximity probes for radial shaft vibration measurement on critical rotating machinery — not accelerometers.

Every unit we ship has been stored in climate-controlled conditions and inspected for physical integrity before dispatch. Probe tip, thread, cable jacket, and connector are checked against OEM dimensional specifications. We do not ship units with damaged cable jackets, corroded connectors, or deformed probe bodies — conditions common in grey-market stock that cause immediate installation failure.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. For critical plant shutdowns, we offer same-day dispatch on in-stock items when orders are confirmed before 14:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): DHL Express / FedEx IP — 2 to 3 business days
• Middle East (UAE, Saudi Arabia, Qatar): DHL Express — 3 to 4 business days
• Europe (Germany, Netherlands, UK, France): FedEx International Priority — 3 to 5 business days
• North America (USA, Canada): DHL Express / FedEx IP — 4 to 6 business days
• South America (Brazil, Chile, Colombia): FedEx International Priority — 5 to 7 business days
• Africa (South Africa, Nigeria, Egypt): DHL Express — 5 to 8 business days

All shipments include full export documentation: commercial invoice, packing list, and certificate of origin. For customers requiring customs pre-clearance documentation or specific HS code declarations, we prepare these as standard at no additional charge. Tracking numbers are issued within 2 hours of dispatch and sent directly to your registered email.

For plant shutdowns where every hour counts, contact us via WhatsApp for real-time shipment coordination. We can arrange airport-to-airport freight with local courier pickup at the destination for the fastest possible door delivery.
