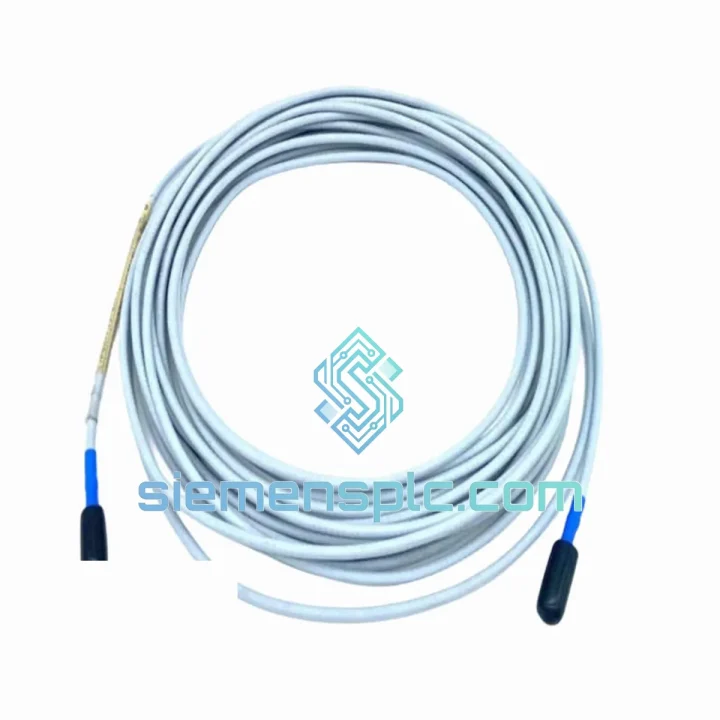

Bently Nevada 330106-05-30-50-02-00 Proximity Probe

330106-05-30-50-02-00 In Stock — Every Hour of Downtime Has a Price Tag

Your steam turbine tripped at 02:40. The DCS alarm log is screaming. Maintenance pulled the proximity probe and confirmed it: the 330106-05-30-50-02-00 is dead — cable shorted, tip cracked, or the proximitor is reading a flat DC signal where there should be a clean -10 VDC gap voltage. You don’t need a lecture on eddy-current physics right now. You need the part, on a plane, today.

We stock the Bently Nevada 330106-05-30-50-02-00 in Xiamen. DHL Express to Singapore: 24–36 hours. To Rotterdam or Houston: 48–72 hours. While your procurement team is still opening a purchase requisition, we can have this probe in transit. That’s the only metric that matters when your production line is cold.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Pattern 1 — Flat DC output, no vibration signal: The proximitor is outputting a constant voltage (typically near -24 VDC or 0 VDC) with no dynamic component. Nine times out of ten this is a shorted probe cable — the armored jacket has been pinched against a bearing housing or caught in a coupling guard. Before condemning the probe, disconnect the extension cable at the proximitor and measure resistance between center conductor and shield. Anything below 100 kΩ: the probe or cable is the culprit. Replace the 330106-05-30-50-02-00 as a complete assembly — do not attempt to splice the armored cable in the field.

Fault Pattern 2 — Gap voltage out of linear range: If the proximitor output reads below -2 VDC or above -18 VDC at rest, the physical gap has shifted — shaft has moved axially, the probe mounting bracket has loosened, or the probe tip has been mechanically struck. Set gap voltage to -10 VDC ±0.5 VDC (approximately 1.0 mm gap for 8 mm probes on 4140 steel) using a non-ferrous feeler gauge or a calibrated gap-setting tool. Torque the locknut to the OEM specification — typically 14–16 N·m — and re-verify gap after torquing, as the probe body can rotate slightly.

Fault Pattern 3 — High noise floor / erratic vibration readings: Intermittent spikes on the vibration channel that don’t correlate with machine speed are almost always a grounding or shielding issue. Verify that the extension cable shield is grounded at one end only (proximitor end). Check that the probe mounting boss is not creating a ground loop with the machine frame. If the machine is in a VFD-driven environment, ensure the proximitor power supply is isolated from the VFD common.

Replacement procedure — key steps:

• De-energize the proximitor channel before disconnecting the probe. Hot-swapping can cause a transient that trips the 3500 rack on a high-vibration alarm.
• Record the existing gap voltage before removal. This gives you a baseline for the new probe installation and confirms the replacement probe is within calibration.
• The 330106-05-30-50-02-00 is a matched-system probe — it is factory-calibrated as a set with the extension cable. Do not mix probe bodies with extension cables from different serial batches unless you have access to a calibration rig to verify the combined sensitivity (nominally 7.87 V/mm for 8 mm probes).
• After installation, perform a static gap check and a slow-roll vibration check before returning the machine to service. Confirm the 3500 rack channel shows a healthy gap voltage and that the vibration reading at slow-roll is below the alarm setpoint.
• Log the replacement in your CMMS with the new probe serial number. Bently Nevada probes have a finite fatigue life in high-vibration environments — tracking installation date enables proactive replacement before the next failure.

Reliability in Harsh Conditions

The 3300 XL probe series was engineered for environments that destroy lesser sensors. The 330106-05-30-50-02-00 features a stainless steel probe body with a PEEK-encapsulated coil assembly, resistant to the hydrocarbon mists, steam condensate, and aggressive cleaning solvents common in refinery and power plant environments. The armored cable jacket — a stainless steel braid over a PTFE-insulated coaxial core — withstands continuous flexing in high-vibration installations without developing the micro-fractures that cause intermittent faults in standard cable constructions.

Thermal performance is equally robust. The probe maintains calibration accuracy across a wide operating temperature range, making it suitable for hot-section installations near turbine casings where ambient temperatures routinely exceed 80°C. In offshore and coastal installations, the stainless hardware resists salt-spray corrosion that would compromise carbon steel alternatives within months.

Vibration immunity is inherent to the non-contact measurement principle — unlike contact-type sensors, there are no moving parts to wear, no springs to fatigue, and no mechanical resonances to manage. The probe body itself can tolerate the structural vibration levels present at the machine casing without affecting measurement accuracy at the shaft.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL Express and FedEx International Priority connections to major industrial hubs worldwide. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. Tracking number issued within 4 hours of payment confirmation.
• DHL Express to Southeast Asia (Singapore, Malaysia, Thailand): 24–36 hours door-to-door.
• FedEx IP to Middle East (UAE, Saudi Arabia, Qatar): 48–60 hours.
• DHL/FedEx to Europe (Netherlands, Germany, UK): 48–72 hours.
• FedEx to North America (USA, Canada): 48–72 hours.
• Commercial documentation: Commercial invoice, packing list, and HS code declaration (HS 9031.80) prepared for customs clearance. DDP (Delivered Duty Paid) available on request for select destinations.
• Export compliance: All shipments comply with Chinese export regulations. No ITAR/EAR restrictions apply to this product category.

For critical shutdowns where every hour counts, contact us via WhatsApp for real-time stock confirmation and an immediate shipping quote before raising a formal PO. We understand that procurement timelines don’t always align with machine failure timelines.
