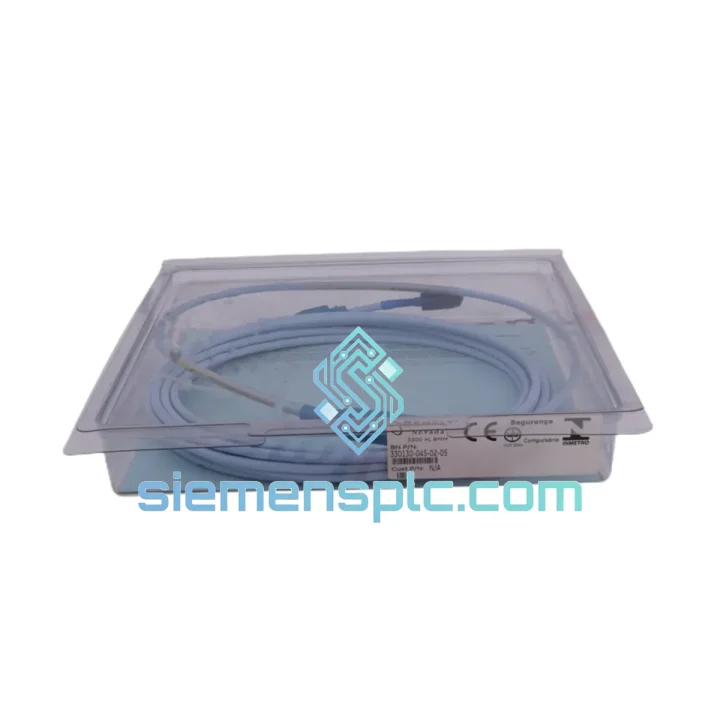

Bently Nevada 330130-045-02-05 Proximity Probe Extension Cable

330130-045-02-05 Down? Every Minute of Vibration Blindness Costs You — We Ship Today

Your turbine or compressor is running blind. The 3300 Series proximity transducer chain is broken at the extension cable — shaft displacement data is gone, the protection system has tripped or is running on bypass, and your operations team is watching the clock. This is not a situation for a 6-week lead time from an OEM distributor. The Bently Nevada 330130-045-02-05 is in stock at our Xiamen warehouse. We process same-day. We ship DHL/FedEx Priority. You get your monitoring chain back online.

The 330130-045-02-05 is the 5-meter coaxial extension cable in Bently Nevada’s 3300 Series proximity transducer system — the signal bridge between your eddy-current probe at the bearing housing and the proximitor/driver mounted in the junction box or rack enclosure. Get the impedance wrong, use a non-matched cable, or run a damaged one, and your gap voltage readings drift. Your vibration amplitude is off. Your protection setpoints become meaningless. This is the OEM-specified part. No substitutions, no compromises.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for the 330130-045-02-05 in the field:

1. Intermittent or drifting gap voltage (OK-OK-FAULT cycling)
Nine times out of ten this is a connector issue — either the probe-end or proximitor-end coaxial connector has developed a micro-fracture from vibration fatigue or was over-torqued during a previous maintenance cycle. Before condemning the proximitor or the probe, swap the extension cable first. It is the cheapest and fastest variable to eliminate. Disconnect both ends, inspect the center pin and outer shield contact for corrosion or deformation, then substitute with a known-good 330130-045-02-05.

2. Bently Nevada 3500 rack showing “Not OK” on the vibration channel
If the 3500/22M or 3500/42M module is flagging the channel NOT OK and the probe gap is within the linear range (typically -10 VDC ± 2V for 8mm probes), suspect the extension cable before the module. A shorted or open shield in the cable will pull the bias voltage out of range. Measure DC bias at the proximitor input: should be approximately -18 to -24 VDC depending on gap. If it reads 0V or rail voltage, the cable is the culprit.

3. Replacement procedure — step by step

1. Confirm the machine is in a safe state (bypassed or shutdown per your site MOC procedure). Never replace a proximity probe cable on a running machine without authorization.
2. Disconnect the extension cable at the proximitor end first — this removes the signal from the monitoring system. The 3500 rack will alarm; acknowledge and bypass the channel per your bypass procedure.
3. Disconnect the probe end. Note the routing path and any cable clamps or conduit entry points — the 330130-045-02-05 is 5m; confirm your routing distance before installation.
4. Install the new 330130-045-02-05. Hand-tighten connectors first, then torque to Bently Nevada specification (typically finger-tight plus 1/4 turn — do not use a wrench on the coaxial connector body).
5. Reconnect at the proximitor. Measure gap voltage at the proximitor output before removing the bypass. Verify it falls within the linear range for your probe/gap combination.
6. Remove bypass, confirm the 3500 rack channel returns to OK status, and log the replacement in your maintenance management system.

4. System gain verification after cable swap
The 3300 Series is a matched system — probe + extension cable + proximitor must be from the same gain group (standard or extended range). The 330130-045-02-05 is a standard-gain cable. If your proximitor is configured for extended range, verify cable compatibility before installation. Mismatched gain will produce a linear output but with incorrect scale factor, leading to false vibration amplitude readings that will not trip the protection system at the correct threshold.

5. No recalibration required for a like-for-like swap
If you are replacing a failed 330130-045-02-05 with an identical new unit and the probe and proximitor remain unchanged, no recalibration of the 3500 rack module is required. The system gain and scale factor are determined by the probe/proximitor pair, not the extension cable. Verify gap voltage is within range and you are done.

Reliability in Harsh Conditions

Proximity probe extension cables live in some of the worst real estate in a plant — routed along hot bearing housings, through vibrating structural steel, exposed to lube oil mist, steam leaks, and the kind of ambient temperatures that make standard instrumentation cable fail within months. The 330130-045-02-05 is built for exactly this environment.

The stainless steel armor jacket is not decorative. It absorbs the continuous micro-vibration transmitted from the machine casing without fatiguing the inner coaxial conductor — the failure mode that kills generic replacement cables in 6 to 18 months. The outer chemical-resistant jacket handles hydrocarbon exposure, cleaning solvents, and the occasional steam jet without cracking or swelling. The coaxial geometry is maintained under mechanical stress, which means the characteristic impedance stays consistent and your gap voltage readings stay accurate even after years of continuous service.

In offshore and marine installations where salt air accelerates corrosion on every exposed metal surface, the stainless armor and sealed connector design of the 330130-045-02-05 provide a meaningful service life advantage over non-OEM alternatives. In petrochemical environments where cable routing passes through classified hazardous areas, the OEM part number ensures your documentation and compliance records remain clean — a non-trivial consideration when your next safety audit is six months away.

We have supplied this cable to power generation facilities in Southeast Asia running continuous 24/7 baseload operation, to compressor stations in the Middle East where ambient temperatures exceed 50°C, and to offshore platforms where the combination of salt, vibration, and humidity would destroy lesser components within a single maintenance cycle. The 330130-045-02-05 keeps working. That is the point.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. When you confirm an order before 14:00 CST, we target same-day dispatch. Here is what the logistics chain looks like from your order to your receiving dock:

Day 0 — Order Confirmation: You confirm the order and provide your shipping address and any required export documentation details (commercial invoice format, HS code requirements, end-user declaration if applicable). We pull the 330130-045-02-05 from stock, inspect connectors and cable jacket, and package in anti-static, moisture-resistant packaging with foam-padded connector protection.

Day 0 — Dispatch: Shipment handed to DHL Express or FedEx International Priority with full tracking number provided to you within 2 hours of pickup. Export documentation — commercial invoice, packing list, certificate of origin — generated and attached to the shipment.

Day 1–3 — Transit: DHL Express from Xiamen typically reaches Singapore, Malaysia, Thailand, and Vietnam in 1–2 business days. India, Middle East, and Europe in 2–3 business days. North America in 2–4 business days. Australia in 2–3 business days. We will advise on realistic transit times for your specific destination at the time of order.

Customs Clearance: We provide complete export documentation to support smooth customs clearance. For destinations with specific import requirements (India IGST, EU customs value declarations, Middle East certificate of origin requirements), we have handled these routinely and will prepare the correct documentation set without you needing to chase us for it.

Tracking & Communication: You receive the tracking number by email and WhatsApp. If there is any delay at customs or with the carrier, we proactively notify you and provide alternative options. We do not go silent when there is a problem.
