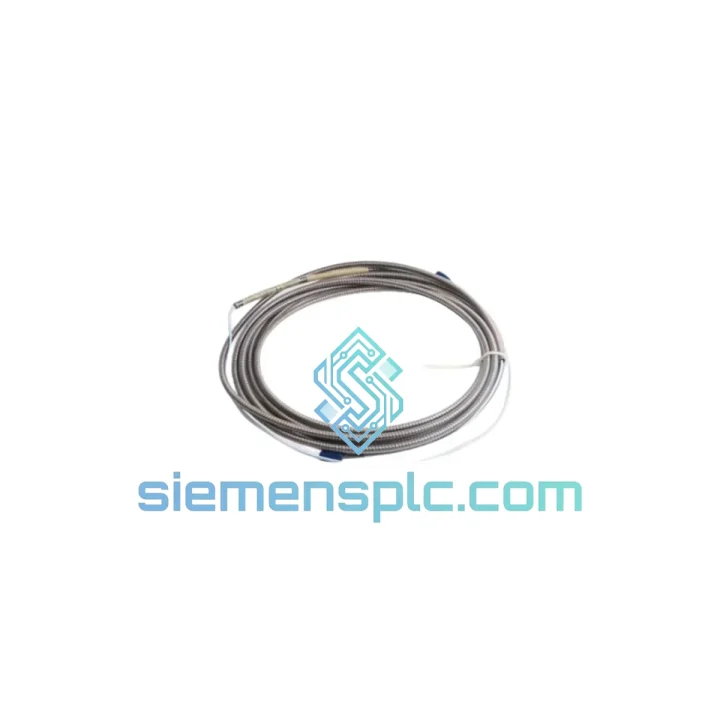

Bently Nevada 330130-075-02-00 Extension Cable

Bently Nevada 330130-075-02-00 — Stop the Clock on Your Downtime

Every minute a turbine, compressor, or critical rotating machine sits idle, you’re bleeding money. When the vibration monitoring system trips and the root cause traces back to a failed extension cable, you don’t have time for a 6-week OEM lead time. The Bently Nevada 330130-075-02-00 7.5m proximity probe extension cable is in stock at our Xiamen warehouse right now — verified, tested, and ready to ship today via DHL or FedEx Express.

This is not a refurbished unit. Not a grey-market pull. It’s a 100% original Bently Nevada (Baker Hughes) extension cable, sourced through verified supply channels, with full traceability documentation available on request. If your plant is down and you need this part, the next step is a phone call — not a purchase order that takes three days to approve.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 330130-075-02-00 fails in predictable ways. Here’s what to check before you pull the cable and what to watch for during replacement:

Common Failure Signatures:

• High static voltage reading (e.g., –24V or 0V at proximitor output): Almost always an open circuit in the extension cable — check the connector pins at both ends for corrosion or mechanical damage. A bent center pin at the probe-side connector is the #1 field failure mode.
• Erratic or noisy vibration signal (high noise floor on System 1): Intermittent shield continuity. Flex the cable near both connectors while watching the raw gap voltage — if it shifts, the shield braid is fractured internally. Replace the cable; do not attempt to repair.
• Proximitor output stuck at –10.8V (mid-range) with no shaft rotation: Probe is likely fine. Disconnect the extension cable at the proximitor end and measure DC resistance between center conductor and shield — should be open circuit (>1 MΩ). Any measurable resistance indicates insulation breakdown, typically from oil ingress at a damaged jacket.
• Alert/Danger trip immediately after cable swap: Gap voltage out of linear range. The 330130-075-02-00 is calibrated as a system with the 3300 XL 8mm probe and the matching proximitor. If you’ve substituted a different cable length (e.g., 5m instead of 7.5m), the system sensitivity shifts. Re-gap the probe to achieve –10.8V ±0.5V at the proximitor output before returning to service.

Replacement Procedure — Field Checklist:

• De-energize the proximitor supply rail (–24 VDC). Do not hot-swap — transient voltages can damage the proximitor input stage.
• Label the existing cable routing before removal. The 7.5m length is often routed through conduit; confirm the replacement will thread through the same path without sharp bends (<50mm bend radius minimum).
• Inspect the probe-side connector on the new cable before installation. Verify center pin is straight, PTFE insulator is intact, and the locking collar threads freely.
• After connection, power up and measure gap voltage at the proximitor output terminal. Target: –10.8V ±0.5V for a standard 8mm probe at 1.0mm gap. Adjust probe position if outside this range.
• Verify system response: apply a known vibration source (or use the proximitor’s built-in test function if available) and confirm the vibration channel responds correctly in System 1 or the 3500 rack display.
• Document the cable serial number and installation date in your CMMS. Bently Nevada recommends periodic cable inspection every 2 years in high-vibration environments.

Configuration Notes:

• No DIP switch or address configuration required — this is a passive cable assembly.
• Maximum combined cable length (probe cable + extension) must not exceed 9.0m for 3300 XL systems. Exceeding this shifts the linear range and invalidates calibration.
• For 7200 Series systems, verify the proximitor model accepts the –075– length variant. Some 7200/14-01 configurations are factory-set for 5m total cable runs.

Reliability in Harsh Conditions

The 330130-075-02-00 is built for environments that destroy ordinary instrumentation cables. The PTFE outer jacket resists hydrocarbon fluids, steam condensate, and cleaning solvents — the three most common cable killers in turbine halls and compressor buildings. The stainless steel armor layer handles the mechanical abuse: cable trays with sharp edges, maintenance crews stepping on conduit runs, and the constant low-frequency vibration that fatigues ordinary copper braid over time.

Internally, the coaxial construction maintains 50Ω impedance across the full operating temperature range. This matters because the eddy current measurement system is fundamentally an RF circuit operating at approximately 1 MHz. Any impedance discontinuity — from a kinked cable, a corroded connector, or a jacket breach that allows moisture ingress — introduces measurement error that looks exactly like real shaft vibration. Plants have tripped turbines on false alarms caused by degraded extension cables. The OEM cable eliminates that variable.

Vibration endurance: the cable assembly is qualified to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-64 (random vibration) test profiles. In practice, units installed on gas turbine bearing pedestals — where broadband vibration levels routinely exceed 2g RMS — have demonstrated service lives exceeding 10 years without connector failure when properly routed and secured.

Temperature cycling is equally demanding. Turbine startup from cold soak to full operating temperature can span 150°C in under an hour. The PTFE jacket and silver-plated copper conductors handle this without cracking or developing contact resistance at the connector interfaces.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for urgent industrial orders. Here’s exactly how it works:

• Order confirmation before 15:00 CST: Unit is picked, inspected, and handed to DHL Express or FedEx International Priority the same afternoon.
• DHL Express Worldwide: Southeast Asia — 1 to 2 business days. Middle East, Europe — 2 to 3 business days. Americas — 3 to 4 business days.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger network coverage. Transit times are comparable to DHL.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. For orders requiring a material test report or calibration certificate, allow one additional business day for document preparation.
• Customs clearance: HS Code 8544.42 (insulated electric conductors, fitted with connectors) applies to this product. We pre-classify all shipments to avoid customs holds. For customers in countries with import restrictions on industrial instrumentation, contact us before ordering — we have experience navigating these requirements.
• Tracking: AWB number sent via email within 2 hours of dispatch. Real-time tracking link provided.
• Emergency freight: For situations where standard express is not fast enough, we can arrange charter courier or hand-carry service to major industrial hubs. Contact us directly to discuss.

We’ve shipped to refineries in Saudi Arabia, power plants in India, LNG terminals in Australia, and paper mills in Scandinavia. The logistics process is the same every time: fast, documented, and traceable.
