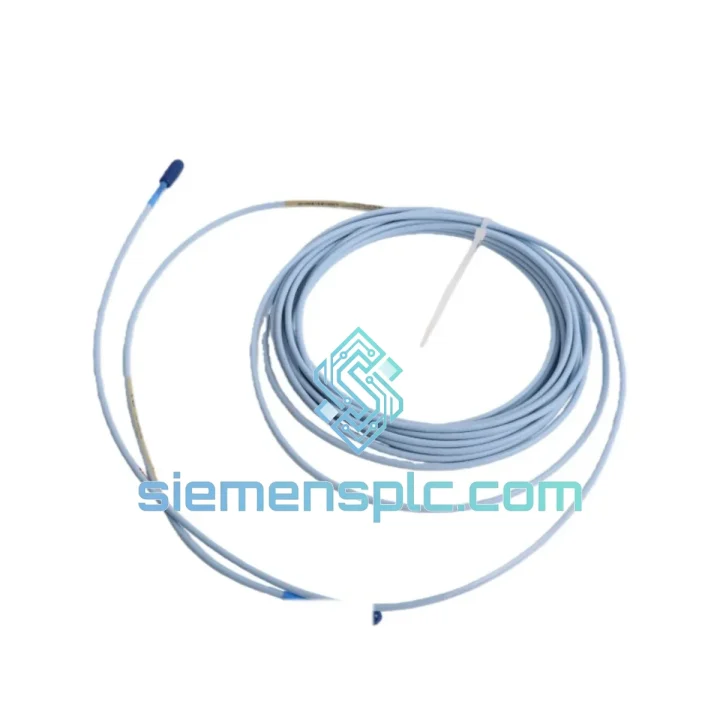

Bently Nevada 330130-080-00-BR Extension Cable – 3300 XL

Bently Nevada 330130-080-00-BR: 8-Meter BR-Connector Extension Cable for 3300 XL Eddy-Current Transducer Systems

The Bently Nevada 330130-080-00-BR is an 8.0 m (26.2 ft) coaxial extension cable with Bayonet Reverse (BR) terminations, purpose-built for the 3300 XL Proximity Transducer System. Its function within the measurement chain is deceptively simple in appearance but mechanically and electrically precise in execution: it bridges the gap between the eddy-current proximity probe and the proximitor/driver module, transmitting a high-frequency oscillator signal (typically 200 kHz) with sufficient fidelity to preserve the sub-micron displacement resolution the system is designed to deliver. In API 670-compliant machinery protection architectures — covering radial vibration, axial position, and differential expansion on rotating equipment — the extension cable is not a passive conductor. It is a calibrated component whose characteristic impedance, capacitance per unit length, and connector contact resistance are all factored into the proximitor’s sensitivity curve. Substituting a non-OEM cable without recalibration introduces systematic offset errors that can mask real shaft displacement events or generate spurious alarms.

The 330130-080-00-BR is deployed across steam turbines, gas turbines, centrifugal compressors, boiler feed pumps, and large induction motors in petrochemical, power generation, LNG, and offshore platforms. Its 8.0 m length is the most commonly specified extension in installations where the proximitor enclosure is mounted at the machine skid perimeter, beyond the 1.0 m integral probe cable reach. The BR connector style — a bayonet-locking reverse-polarity design — prevents accidental mating with non-compatible connectors, a critical feature in multi-probe installations where connector confusion can result in measurement cross-wiring.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330130-080-00-BR operates within a three-component eddy-current measurement chain: proximity probe → extension cable → proximitor. The proximitor drives the probe coil at a fixed oscillation frequency (nominally 200 kHz for the 3300 XL 8 mm system). As the conductive target (shaft) approaches the probe tip, eddy currents induced in the target surface load the oscillator circuit, reducing its amplitude. The proximitor converts this amplitude change into a DC voltage output, typically −24 VDC at 0 mm gap, scaling linearly at approximately −7.87 V/mm (200 mV/mil) for the 8 mm probe variant.

The extension cable’s role in this circuit is to carry the 200 kHz signal with minimal attenuation and phase distortion. The double-shielded coaxial construction — an inner shield bonded to the cable’s signal conductor and an outer shield connected to chassis ground — provides two-stage EMI rejection. In high-noise plant environments (variable-frequency drives, large motor starters, arc furnaces), the outer shield intercepts radiated interference before it can couple into the inner conductor. The inner shield provides a low-impedance return path for the signal current, reducing common-mode noise pickup. This architecture maintains signal-to-noise ratios sufficient for the proximitor to resolve shaft displacements at the 0.1 mil (2.5 µm) level, which is the practical resolution floor for API 670 radial vibration channels.

The BR bayonet connector mechanism deserves specific attention. The reverse-polarity bayonet design requires a deliberate quarter-turn engagement sequence that provides audible and tactile confirmation of full mating. Contact resistance at the mated interface is specified to remain below 5 mΩ across the operating temperature range, preventing thermally induced resistance drift from introducing gain errors in the measurement chain. The connector’s gold-plated center pin and socket maintain low contact resistance across the −40 °C to +85 °C envelope, including thermal cycling conditions typical of outdoor turbine enclosures in continental climates.

Cable capacitance per unit length is a controlled parameter in the 330130 series. The proximitor’s internal calibration assumes a specific total cable capacitance (probe cable + extension cable combined). Deviating from the OEM cable’s capacitance specification — even by 10–15 pF/m — shifts the oscillator’s operating point and alters the sensitivity curve slope. This is why Bently Nevada specifies that the total system cable length (probe integral cable + extension) must match the proximitor’s calibration length, and why non-OEM cables require full system recalibration per the 3300 XL System Manual (GEK-91555).

System Integration Benefits

• Calibration Traceability: The 330130-080-00-BR is manufactured to the same dimensional and electrical tolerances as the proximitor’s factory calibration standard, ensuring the sensitivity curve (V/mm) remains within ±1% of the nominal value without field recalibration.
• Deterministic Signal Latency: The cable’s controlled propagation delay (a function of its dielectric constant and length) is accounted for in the 3500 Series monitor’s signal processing pipeline, preserving phase accuracy for orbit plot generation and 1X/2X vector analysis.
• EMC Compliance: Double-shield construction meets IEC 61000-4-3 radiated immunity requirements at 10 V/m field strength, allowing installation in proximity to high-power switchgear without additional conduit shielding in most plant classifications.
• Connector Keying Prevents Cross-Wiring: BR-style bayonet polarity prevents accidental connection to CN-style or standard-termination cables, eliminating a common commissioning error in multi-probe installations with mixed connector inventories.
• Wide Thermal Envelope: The −40 °C to +85 °C rating covers both arctic outdoor installations and hot-section enclosures adjacent to gas turbine exhaust casings, without requiring cable derating or additional thermal protection.
• Reduced Diagnostic Ambiguity: Using OEM cables eliminates the cable as a variable during fault investigation. When a proximitor reports a fault condition, maintenance engineers can rule out cable degradation as a cause without additional impedance testing, reducing mean time to diagnose (MTTD) on critical machinery.
• API 670 Compliance Preservation: Machinery protection systems on API 670-governed equipment require documented OEM component traceability. The 330130-080-00-BR carries full manufacturer documentation (Certificate of Conformance, test reports) available on request, satisfying third-party inspection and insurance audit requirements.
• Plug-and-Play Replacement: No field calibration is required when replacing a failed extension cable with the same OEM part number, provided the probe and proximitor are unchanged. This reduces planned maintenance downtime to the physical cable swap time — typically under 30 minutes for accessible installations.
• Long-Term Parts Availability: The 3300 XL system remains in active service at thousands of sites globally. Surplus and new-old-stock 330130-080-00-BR units are available through authorized distributors, providing a procurement path for sites that cannot source directly from Baker Hughes on short lead times.

Quality Assurance & Global Logistics

Every 330130-080-00-BR unit dispatched from our Xiamen, China facility undergoes a pre-shipment inspection protocol that includes visual examination of connector pins and cable jacket, continuity and insulation resistance verification, and documentation review (part number label, date code, and condition classification). Units are classified as New, Surplus (unused, original packaging), or Refurbished (tested, reconditioned) — the condition is explicitly stated on the commercial invoice and packing list, with no ambiguity.

Packaging is engineered to protect the BR connectors during international transit: each connector is capped with protective dust covers, the cable is coiled to a minimum bend radius above the cable’s specified limit, and the assembly is sealed in anti-static polyethylene before placement in a rigid outer carton with foam cushioning. This packaging standard has been validated across air freight, sea freight, and express courier shipments to North America, Europe, the Middle East, and Southeast Asia.

Logistics from Xiamen port and Xiamen Gaoqi International Airport provide access to major global freight lanes. Express shipments (DHL, FedEx, UPS) to most destinations reach customers within 3–5 business days. Sea freight consolidation is available for bulk orders. Export documentation — commercial invoice, packing list, Certificate of Origin, and ECCN classification — is prepared for each shipment to facilitate customs clearance in regulated markets. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance deviations from the published specification.
