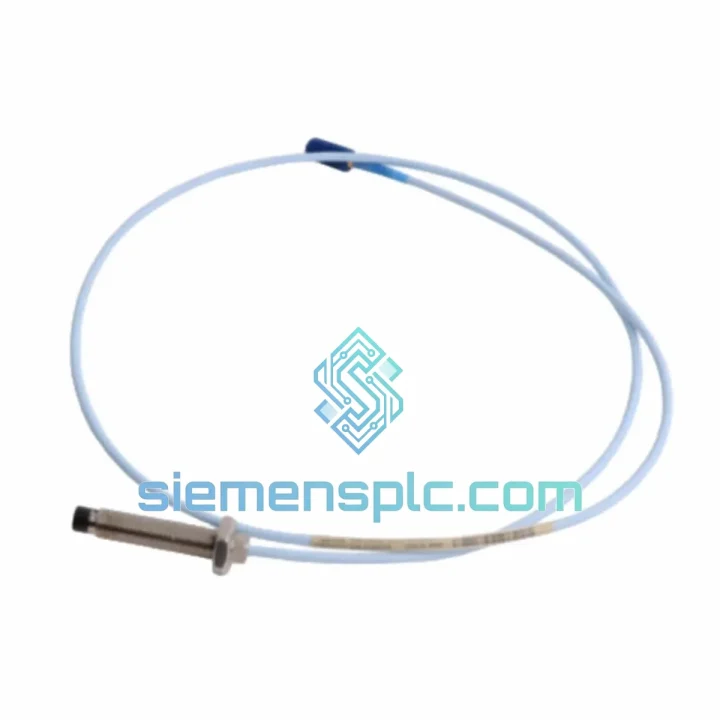

Bently Nevada 330130-080-01-05 Proximity Extension Cable

330130-080-01-05 — Stop the Clock on Your Downtime. 8-Metre OEM Cable, Ships Today from Xiamen.

Every hour a turbine or compressor train sits idle costs real money — production losses, contractual penalties, and maintenance crew overtime. The Bently Nevada 330130-080-01-05 is the single weakest mechanical link in the 3300 XL proximity chain: it runs through hot, vibrating, chemically aggressive environments 24/7, and when it fails, the entire measurement loop goes dark. We stock this cable specifically because we know it fails under load, and we know you need it now, not in three weeks.

We ship from Xiamen, China. DHL Express to most industrial hubs in Europe, Southeast Asia, and the Middle East lands in 2–4 business days. If your plant is down, that timeline matters more than the unit price.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the cable is the fault, not the probe or proximitor:

Before pulling the cable, do a quick three-point isolation. Disconnect the extension cable at both ends. Measure DC resistance between the centre conductor and shield — an open circuit (>10 MΩ) or a dead short (<1 Ω) confirms cable failure. If resistance reads 50–200 Ω, the cable is likely intact; shift your investigation to the probe tip or proximitor module.

Common failure signatures on the 3300 XL monitor:

• OK LED off, -24 VDC output rail normal — Proximitor sees no probe signal. First suspect: broken centre conductor inside the armour, usually at the probe-end connector where the cable flexes during maintenance.
• Vibration reading pegged at full scale or erratic — Intermittent shield-to-conductor short. Caused by armour kinking from repeated bending below the 50 mm minimum bend radius. Flex the cable by hand along its length while watching the monitor — if the reading jumps, you’ve found the fault zone.
• Gap voltage drifting slowly over weeks — Connector oxidation at the MIL-spec terminations. Clean with isopropyl alcohol first; if drift continues, replace the cable.
• System trips on vibration during machine startup only — Thermal expansion of the cable jacket causing momentary impedance shift. More common in cables older than 5 years. Replace proactively during the next planned outage.

Replacement procedure — field checklist:

1. De-energise the proximitor supply rail (typically −24 VDC from the 3300 XL rack). Confirm with a multimeter before touching connectors.
2. Label both ends of the old cable with machine tag and channel number before disconnecting. In a multi-channel rack, swapped cables cause crossed channel readings that are extremely difficult to diagnose later.
3. Route the new 330130-080-01-05 along the same cable tray path. Do not coil excess cable — maintain the full 8 m run. Coiling creates inductance that shifts system sensitivity.
4. Torque MIL-spec connectors finger-tight plus one-quarter turn. Over-torquing deforms the centre pin and degrades contact impedance.
5. Re-energise and verify gap voltage at the proximitor output. For a standard 330103 probe at 1.0 mm gap, expected output is approximately −7.87 VDC ± 0.5 V. If outside this range, check probe gap before condemning the new cable.
6. Perform a functional trip test per your site’s API 670 test procedure before returning the machine to service.

Critical configuration note — do not mix cable lengths: The 330130-080-01-05 (8 m) is not interchangeable with the 330130-050-01-05 (5 m) or 330130-110-01-05 (11 m). Cable length is a calibrated parameter in the 3300 XL system. Substituting a different length shifts the total cable capacitance, moves the proximitor operating point, and alters system sensitivity by up to 8%. A full system recalibration per Bently Nevada TN-13 is mandatory if the cable length changes.

Reliability in Harsh Conditions

The 330130-080-01-05 is not a general-purpose coaxial cable dressed up for industrial use. It is purpose-built for the specific electrical and mechanical demands of turbomachinery environments, and the construction reflects that.

The stainless steel braid armour handles two jobs simultaneously: it provides the EMI shielding necessary to keep the 1 MHz carrier signal clean in electrically noisy machine rooms, and it gives the cable the mechanical toughness to survive being routed through cable trays alongside high-voltage power cables, stepped on during maintenance, and pulled through conduit during installation. Crush resistance is rated to withstand the kind of incidental mechanical abuse that destroys standard instrumentation cable within months.

The PTFE/FEP jacket is the right choice for petrochemical and power generation environments. It does not absorb hydrocarbon vapours, does not swell in contact with turbine oils or cleaning solvents, and does not embrittle at the low end of the operating range (−40 °C). In steam turbine applications where the cable runs near hot surfaces, the jacket maintains its dimensional stability up to +85 °C without softening or outgassing.

Vibration is the silent killer of instrumentation cables. The 330130-080-01-05 is designed to be routed in environments where the cable tray itself vibrates at machine running frequency — typically 25–100 Hz in large rotating equipment. The armoured construction damps resonant vibration in the cable run and prevents the fatigue cracking at connector terminations that eventually opens the centre conductor in cheaper cables.

Humidity and condensation are handled by the sealed MIL-spec connector terminations. In outdoor installations or unheated buildings where condensation cycles occur daily, the connector sealing prevents moisture ingress that would cause the DC resistance to drift and corrupt the gap measurement.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For plant shutdown scenarios, we offer same-day dispatch on orders confirmed before 14:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia) — DHL Express: 1–2 business days
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait) — DHL/FedEx: 2–3 business days
• Europe (Germany, Netherlands, UK, France, Italy) — DHL Express: 3–4 business days
• North America (USA, Canada) — FedEx International Priority: 3–5 business days
• South Asia (India, Pakistan, Bangladesh) — DHL Express: 2–3 business days
• Australia / New Zealand — DHL Express: 3–4 business days

Every shipment includes a commercial invoice with correct HS code (8544.42 — insulated electric conductors), packing list, and Certificate of Conformance. For projects requiring third-party inspection (SGS, Bureau Veritas), arrange at time of order — we accommodate pre-shipment inspection at the Xiamen warehouse. All export documentation is prepared in-house; no freight forwarder delays.

For critical plant shutdowns where air freight cost is secondary to speed, contact us directly on WhatsApp for a same-day shipping confirmation and tracking number.
