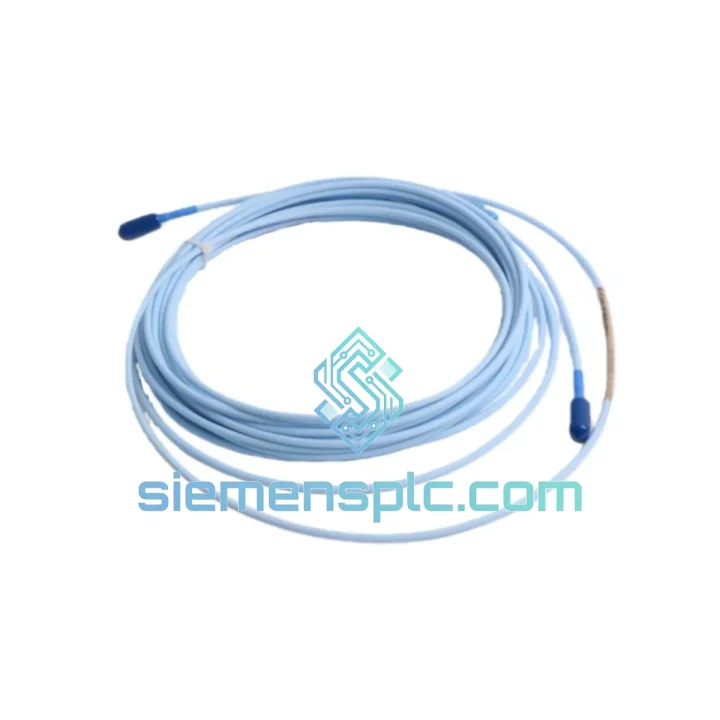

Bently Nevada 330130-080-13-00 Proximity Extension Cable

330130-080-13-00 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every hour a turbine or compressor sits idle costs real money — lost throughput, penalty clauses, emergency labor. The Bently Nevada 330130-080-13-00 is the 8-meter proximity extension cable for the 3300 XL Proximity Transducer System, and it is the single component standing between your machine and a return to full production. We stock it. We ship it. DHL Express from Xiamen, door-to-door in 2–5 business days to most global destinations.

This is not a gray-market substitute. Every unit we dispatch is 100% original Bently Nevada / Baker Hughes manufacture, with full traceability documentation available on request. When your vibration loop goes dark at 02:00 and the plant manager is calling, you need a supplier who picks up — not a web form.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery protection systems, these are the failure modes and swap pitfalls I see most often with the 330130-080-13-00:

1. Incorrect Gap Voltage After Cable Swap
The most common post-replacement complaint. The 3300 XL system is impedance-matched — probe, extension cable, and proximitor must form a calibrated set. If you swap only the extension cable and the proximitor gap voltage drifts outside the –10 VDC ± 0.5 V window, do not adjust the proximitor pot. First verify the replacement cable is the correct length code (080 = 8.0 m). A 5 m cable (050) installed in a 9 m loop will shift the scale factor and produce false vibration readings. Check the part number suffix carefully before installation.

2. Connector Contamination — The Silent Killer
The coaxial connector at the probe-to-extension junction is the most vulnerable point in the loop. Oil mist, condensate, and cleaning solvents wick into the connector body and increase contact resistance. Symptom: intermittent high-frequency noise on the vibration channel, often misdiagnosed as a bearing defect. Before condemning the cable, clean both mating connectors with isopropyl alcohol (99%), blow dry with instrument air, and re-torque to the specified 0.9 N·m. If the noise persists, the cable is the culprit.

3. Fault Codes to Watch
On a Bently Nevada 3500 rack, a failed or open extension cable typically triggers:

• OK LED off on the 3500/42M or 3500/40M monitor card
• Not OK (NOK) relay energized — check relay output wiring before assuming a process trip
• Gap voltage out of range alarm (typically < –18 VDC or > –2 VDC) — this is the definitive indicator of an open or shorted cable
• Rack System Event Log: Event code 0x04 (Input Not OK) logged against the affected channel

4. Replacement Procedure — Field Checklist

1. Isolate the monitor channel (inhibit the trip function at the rack before disconnecting — do not pull the cable live on a running machine unless the channel is bypassed).
2. Disconnect the extension cable at both ends: probe connector and proximitor input.
3. Route the new 330130-080-13-00 along the same cable tray, maintaining minimum bend radius ≥ 50 mm.
4. Torque connectors to 0.9 N·m. Hand-tight is not sufficient in a high-vibration environment.
5. Measure gap voltage at the proximitor output before re-enabling the trip. Target: –10 VDC ± 0.5 V at the nominal air gap specified on the probe data sheet.
6. Re-enable the trip function and verify the OK LED illuminates on the monitor card.
7. Log the replacement in the machinery history file with the new cable serial number and gap voltage reading.

5. Firmware & Configuration Notes
No firmware changes are required for a like-for-like cable replacement. However, if you are upgrading from a legacy 3300 series cable to the 3300 XL variant, verify that the proximitor part number is also the XL variant (330180-xx-xx). Mixing legacy 3300 and 3300 XL components in the same loop is not supported and will produce non-linear output.

Reliability in Harsh Conditions

The 330130-080-13-00 is not a commercial-grade cable dressed up for industrial use. It is purpose-built for the environments where rotating machinery actually lives:

Vibration: The cable assembly is qualified to withstand continuous sinusoidal vibration per MIL-STD-810 profiles. The factory-crimped coaxial connectors maintain contact integrity under the broadband vibration spectra generated by high-speed compressors and steam turbines — environments where solder-joint connectors fail within months.

Temperature Cycling: PTFE insulation maintains its dielectric properties from –40 °C to +125 °C without cracking or outgassing. In steam turbine bearing pedestals where ambient temperatures routinely exceed 80 °C, this matters. Cheaper PVC-insulated alternatives soften, deform, and eventually short against grounded cable trays.

Chemical Resistance: Turbine lube oil, hydraulic control fluid, and the cleaning solvents used during outage maintenance all attack standard cable insulation. PTFE is chemically inert to all of these. The outer jacket is additionally rated for continuous exposure to mineral-based lubricants.

Humidity & Condensation: Coastal and tropical installations subject cables to sustained high humidity. The double-shielded coaxial construction and sealed connector bodies prevent moisture ingress that would otherwise degrade the signal-to-noise ratio of the proximity measurement.

EMI/RFI Rejection: Motor control centers, variable-frequency drives, and high-current bus bars generate significant electromagnetic interference. The double-shield construction of the 330130-080-13-00 provides >60 dB of common-mode rejection, keeping the vibration signal clean even when the cable runs parallel to power conductors.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with daily DHL Express and FedEx International Priority flights to major hubs worldwide. Here is how the process works from the moment you confirm your order:

Day 0 — Order Confirmation: Payment confirmed before 15:00 CST triggers same-day picking and packing. The unit is inspected, photographed, and packed in anti-static protective packaging with a printed packing list and CoC (on request).

Day 1 — Export Clearance & Handover: Shipment is handed to DHL Express or FedEx with a pre-filed export declaration. HS Code 8544.42 (insulated electric conductors) is used for customs classification. Commercial invoice and packing list are attached to the airway bill.

Days 2–5 — In-Transit: Typical transit times by region:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK): 3–5 business days
• North America (USA, Canada): 4–5 business days
• South America (Brazil, Chile): 5–7 business days

Tracking: A DHL or FedEx tracking number is emailed within 24 hours of dispatch. For urgent shipments, we proactively monitor the tracking and alert you to any customs holds before they become delays.

Import Duties: We declare the correct commercial value. We do not under-declare. Buyers are responsible for import duties and VAT in their country. We can provide a detailed commercial invoice to support your import clearance process.

Emergency Same-Day Dispatch: For confirmed plant shutdowns, contact us via WhatsApp before 12:00 CST. We will prioritize your order for same-day handover to the courier.
