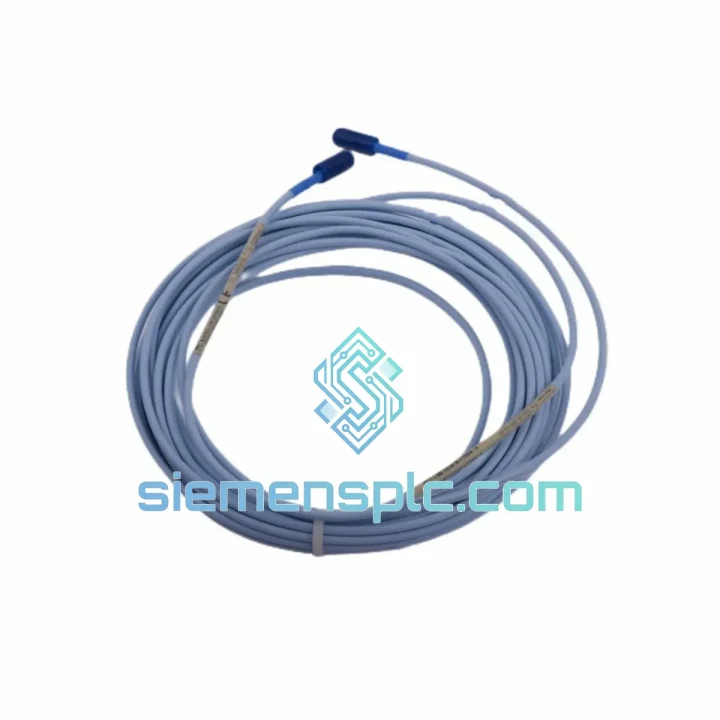

Bently Nevada 330130-085-00-05 Extension Cable

330130-085-00-05 Extension Cable: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your turbine is down. Your compressor train is offline. Every hour without a functioning proximity probe loop costs you thousands — in lost throughput, emergency labor, and contractual penalties. The Bently Nevada 330130-085-00-05 is the exact 8.5 m standard extension cable your 3300 XL system needs to restore full vibration monitoring and get your machinery back online. We stock it. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for 330130-series cables in the field:

• Intermittent gap voltage drift: The proximitor output floats outside the –10 VDC linear range. Nine times out of ten, the culprit is a cracked or corroded connector at the probe-to-extension junction — not the proximitor itself. Swap the cable first before condemning the driver.
• High-frequency noise on the Keyphasor channel: A compromised outer shield braid, often caused by repeated flexing near the bearing housing, allows VFD switching noise to couple into the signal. Inspect the cable jacket for kinking or abrasion within 300 mm of both connectors.
• Sudden full-scale or zero output: Open circuit in the center conductor — typically caused by mechanical impact or overtightening of the connector. Measure DC resistance end-to-end; anything above 5 Ω on the center conductor indicates a break.

Step-by-step replacement procedure:

1. De-energize the monitor rack and confirm the proximitor LED is off before disconnecting any cable.
2. Disconnect the extension cable at both ends — probe tip first, then proximitor input. Note the gap voltage reading before removal if the system was still partially functional.
3. Install the 330130-085-00-05 and hand-tighten connectors. Do not use tools — over-torquing deforms the center pin.
4. Re-energize the rack. The proximitor output should settle between –10 VDC and –18 VDC at the installed gap. If it reads –24 VDC (open circuit) or 0 VDC (short), recheck connector seating before suspecting the probe or proximitor.
5. Verify the gap voltage matches the pre-failure baseline ±0.5 VDC. If the machine was running at a known gap, the reading should be within the calibrated linear range without any recalibration of the proximitor — this is a like-for-like replacement.
6. Log the replacement in your CMMS with the cable serial number and installation date. API 670 recommends periodic cable integrity checks during planned outages.

Configuration note: The 330130-085-00-05 requires no DIP switch settings, firmware matching, or address configuration. It is a passive coaxial assembly. The only parameter to verify is total system cable length — probe cable + extension cable must equal the proximitor’s calibrated range (typically 5 m or 9 m total). Confirm your proximitor label before ordering a different length variant.

Reliability in Harsh Conditions

Rotating machinery environments are unforgiving. The 330130-085-00-05 is built to survive where generic instrumentation cable fails within months:

• Vibration fatigue: The cable assembly uses a stranded center conductor and flexible outer braid specifically to resist work-hardening from continuous low-amplitude vibration transmitted through bearing housings and pipe supports. Field installations on gas turbines running 8,000+ hours per year have demonstrated multi-year service life without connector failure.
• Thermal cycling: Rated to –50 °C to +120 °C continuous, the cable jacket and connector materials maintain dimensional stability through the thermal cycles typical of steam turbine startups and shutdowns. The dielectric does not crack or delaminate at low temperatures — a known failure mode in cheaper alternatives.
• Moisture and condensation: The double-shielded coaxial construction and sealed connector interfaces prevent moisture ingress that would shift the cable’s characteristic impedance and corrupt the eddy-current calibration. In humid tropical environments and offshore platforms, this matters more than the datasheet suggests.
• Chemical resistance: The outer jacket resists exposure to lubricating oils, hydraulic fluids, and cleaning solvents commonly encountered in turbine bearing compartments and compressor skids.
• EMI immunity: Double shielding provides effective rejection of interference from adjacent VFDs, high-voltage bus bars, and welding equipment — environments where single-shielded cables produce noisy, unreliable gap signals.

Global Express Logistics

Our Xiamen warehouse operates a same-day dispatch cut-off for orders confirmed before 15:00 CST. Here is exactly what happens after you place your order:

• Order confirmation (0–2 hours): You receive a proforma invoice and stock confirmation. For urgent orders, call or WhatsApp directly — we will pull and photograph the unit from shelf stock within the hour.
• Export documentation (2–4 hours): Commercial invoice, packing list, and certificate of origin prepared. HS Code 8544.42 applies for most destinations. We handle all export customs declarations from Xiamen.
• DHL Express / FedEx International Priority dispatch (same day or next morning): Typical transit times — Southeast Asia: 1–2 days; Middle East & Europe: 2–3 days; North America: 3–4 days; South America & Africa: 4–6 days. We select the fastest available service for your destination automatically.
• Tracking provided within 12 hours of dispatch: AWB number sent via email and WhatsApp. You can monitor shipment status in real time.
• Import clearance support: We provide all documentation required for customs clearance. For destinations with complex import requirements (India, Brazil, Saudi Arabia), we advise on required permits in advance.

We have shipped Bently Nevada components to power plants, refineries, and compressor stations across 40+ countries. When your plant is down, logistics is not the variable you want to be managing. We handle it.
