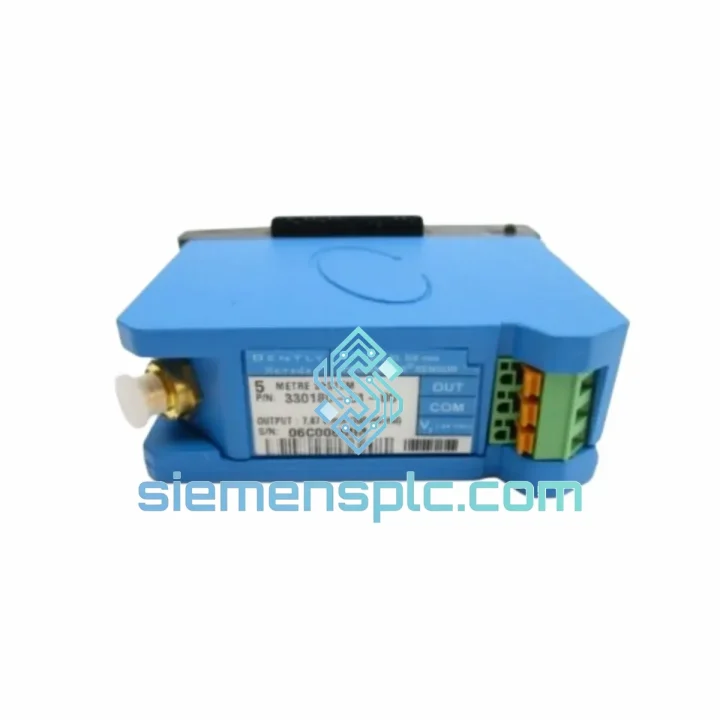

Bently Nevada 330180-51-CN Proximity Sensor – 3300 XL Series

Bently Nevada 330180-51-CN: 8mm Eddy-Current Proximitor in Continuous Machinery Protection Loops

The 330180-51-CN occupies a well-defined position in the 3300 XL Proximitor System architecture: it converts shaft-to-probe gap displacement into a calibrated DC voltage signal that feeds directly into 3300 XL monitor channels for radial vibration, axial position, and differential expansion measurement. The “-51” suffix designates a 5-metre integral armored cable terminated with a coaxial connector, matched to the 3300 XL 8mm calibration curve for AISI 4140 steel targets. Unlike general-purpose eddy-current transducers, this unit is factory-characterized as part of a three-component system — probe, extension cable, and Proximitor electronics — ensuring the combined sensitivity of 7.87 V/mm (200 mV/mil) is traceable to a single calibration record without field adjustment.

In a typical turbine protection loop, the 330180-51-CN mounts in a radial probe holder at the bearing journal. The Proximitor electronics, housed in the monitor rack, supply a –24 VDC excitation and return a proportional output in the range of approximately –2 VDC (near gap) to –18 VDC (far gap). The 3300 XL monitor digitizes this signal at its internal ADC, applies alarm setpoints, and transmits status to the plant DCS via hardwired relay contacts or 4–20 mA analog outputs. The DC-to-10,000 Hz frequency response covers both slow-roll eccentricity checks and high-speed sub-synchronous instability events without bandwidth limiting at the sensor stage.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330180-51-CN operates on the eddy-current induction principle: a high-frequency oscillator within the Proximitor driver circuit (typically 1.0 MHz carrier) drives an RF signal through the coaxial cable to the probe coil. When the conductive target enters the probe’s electromagnetic field, eddy currents are induced on the target surface, loading the oscillator and reducing its amplitude. The Proximitor demodulates this amplitude change and outputs a linearized DC voltage proportional to gap distance.

EMC Design: The coaxial cable construction provides inherent shielding against radiated RF interference. The Proximitor electronics incorporate differential input filtering and regulated excitation to reject common-mode noise from adjacent power cables and variable-frequency drives — a critical requirement in turbine halls where 480 V bus bars and high-current motor feeders run in parallel cable trays. The probe body is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip, which is non-conductive and chemically resistant to lubricating oils, seal gases, and process condensates encountered in compressor and turbine environments.

Calibration Traceability: Each 330180-51-CN is calibrated as a matched set with its integral cable. The calibration data is encoded in the Proximitor’s internal resistor network, which compensates for cable impedance variation across the operating temperature range. This eliminates the sensitivity drift that occurs when field-assembled probe-cable combinations are used without re-characterization. The result is a measurement uncertainty of less than ±1% of full scale across the rated temperature band — a specification that generic eddy-current assemblies rarely achieve without individual temperature compensation.

Mechanical Robustness: The probe tip geometry is optimized for the 8 mm calibration curve. The armored cable jacket withstands continuous flexing in installations where the probe is mounted on a spring-loaded holder, and the coaxial connector is rated for repeated mating cycles without measurable impedance change. The Proximitor housing is sealed to IP65, suitable for installation in outdoor junction boxes or turbine enclosures subject to wash-down and condensation.

System Integration Benefits

• Zero-adjustment commissioning: The matched probe-cable-Proximitor calibration eliminates the gap-setting iteration required with uncharacterized transducers. Technicians set the nominal 1.0 mm gap using a feeler gauge and verify output voltage against the published calibration curve — no oscilloscope or signal analyzer required.
• Direct monitor channel compatibility: The 330180-51-CN output is accepted natively by all 3300 XL monitor channels (3300/16, 3300/20, 3300/25, 3300/46, 3300/55) without signal conditioning adapters, preserving the monitor’s internal alarm logic and OK relay functionality.
• Deterministic alarm response: The DC-to-10 kHz bandwidth ensures that sub-synchronous instability events (oil whirl, oil whip) at frequencies below running speed are captured without phase lag introduced by anti-aliasing filters, supporting accurate 1X/2X vector analysis in System 1 software.
• API 670 compliance: The sensor meets the transducer performance requirements of API 670 (5th Edition), enabling its use in machinery protection systems for compressors and turbines subject to insurance and regulatory audit without additional documentation burden.
• Hazardous area certification: ATEX and IECEx approvals allow installation in Zone 1 and Zone 2 classified areas (gas group IIC, temperature class T4) without additional barriers in most configurations, reducing BOM complexity for offshore and refinery installations.
• System 1 integration: The sensor’s output feeds directly into System 1 Condition Monitoring software via the 3300 XL monitor’s communication interface, enabling trend logging, alarm annunciation, and waveform capture without additional signal conversion hardware.
• Diagnostic transparency: The 3300 XL monitor’s OK relay de-energizes if the Proximitor output falls outside the valid range (gap too large, cable open, or supply voltage fault), providing a hardwired fault indication to the plant DCS independent of the communication network — a critical feature for safety-instrumented system integration.
• Interchangeability within the 3300 XL ecosystem: The 330180-51-CN is interchangeable with other 330180-series probes of the same cable length suffix, allowing spare parts consolidation across multiple machine trains without reconfiguring monitor channel parameters.

Quality Assurance & Global Logistics

Every 330180-51-CN unit offered through siemensplc.com is sourced from verified supply channels with full part traceability. Prior to dispatch, each unit undergoes physical inspection covering connector integrity, cable jacket condition, and probe tip geometry. Calibration documentation and original manufacturer packaging are provided where available. Counterfeit-risk screening is applied to all Bently Nevada components, consistent with industry practices for API 670-critical instrumentation.

Logistics operations are based in Xiamen, China, with established freight forwarding partnerships covering air express (DHL, FedEx, UPS) and sea freight consolidation for volume orders. Standard air express transit times are 3–7 business days to most destinations in Southeast Asia, the Middle East, and Europe. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements. Expedited sourcing is available for urgent plant maintenance requirements; contact the sales team with your required delivery date for a tailored logistics plan.
