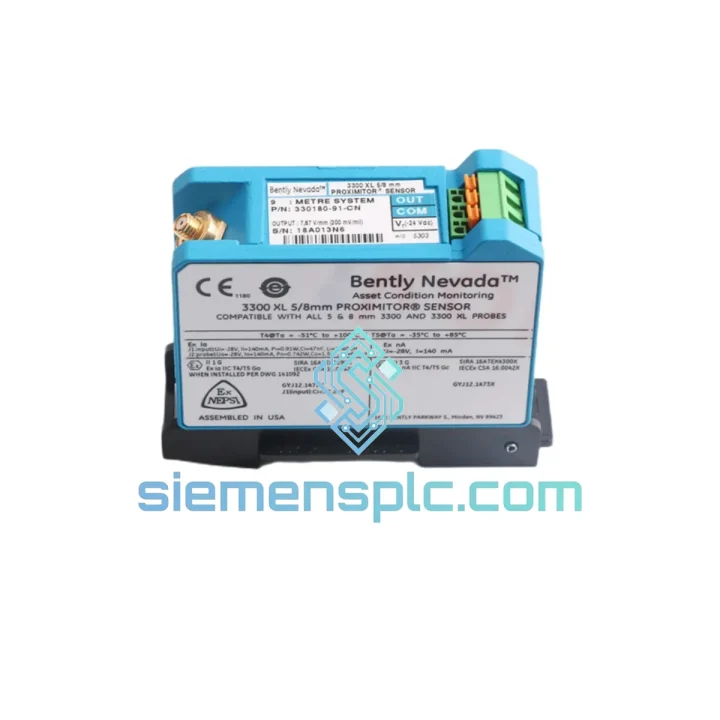

BENTLY NEVADA 330180-91-CN Proximity Transducer – 3300 XL Series

BENTLY NEVADA 330180-91-CN: Eddy-Current Displacement Transducer for Continuous Machinery Protection

The BENTLY NEVADA 330180-91-CN is a non-contact eddy-current proximity transducer engineered for continuous shaft displacement and radial vibration measurement in rotating machinery protection systems. Operating as a primary sensing element within the 3300 XL Proximity Transducer System, this unit converts mechanical shaft motion into a proportional DC voltage signal — providing the foundational measurement data upon which all downstream alarm, trip, and diagnostic logic depends.

In rotating machinery protection architecture, the proximity transducer occupies the most critical position in the signal chain. It is the only component in direct proximity to the rotating shaft, and its output fidelity determines the accuracy of every vibration vector, gap measurement, and phase reference calculation processed by the monitor rack. The 330180-91-CN is designed to maintain measurement linearity across the full operating gap range, with consistent sensitivity that does not drift under sustained thermal or mechanical stress — a requirement that generic or non-OEM alternatives routinely fail to meet in long-term plant service.

The CN connector suffix designates a specific termination configuration optimized for installations where cable routing geometry, panel penetration constraints, or regional wiring standards require a non-standard connector interface. This variant is widely specified in Asian and Middle Eastern plant installations and is fully interoperable with the 3300 XL extension cable and proximitor ecosystem without any signal conditioning adjustment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330180-91-CN operates on the principle of electromagnetic induction: a high-frequency oscillating current (typically 1–2 MHz) is driven through the sensor coil, generating an alternating magnetic field at the probe tip. When a conductive target — the rotating shaft — enters this field, eddy currents are induced on the shaft surface. These eddy currents create a counter-magnetic field that loads the oscillator circuit, reducing its amplitude in proportion to the gap distance between probe tip and shaft surface. The proximitor module demodulates this amplitude-modulated signal and outputs a calibrated DC voltage proportional to gap.

The 3300 XL system’s calibration is performed as a matched set: sensor, extension cable, and proximitor are calibrated together against a specific target material. The 330180-91-CN is factory-calibrated to AISI 4140 steel, which is the standard shaft material for most turbomachinery applications. Substituting a non-matched sensor into an existing calibrated system introduces a systematic sensitivity error that will not be detected by standard loop checks — a failure mode that has caused missed alarms in documented field incidents.

EMC performance is achieved through the coaxial cable architecture of the extension cable system, which provides inherent shielding against radiated interference. The sensor body’s 316 stainless steel housing provides both corrosion resistance and a Faraday shield effect that attenuates capacitively coupled noise from adjacent high-voltage cabling — a common interference source in motor control center environments. The CN connector’s metal shell maintains shield continuity at the termination point, preventing the shield discontinuity that is a frequent source of noise ingress in field installations.

The sensor’s thermal coefficient of sensitivity is specified to remain within ±1% across the full –35°C to +177°C operating range, achieved through temperature-compensated coil winding geometry and a thermally stable epoxy encapsulant. This stability is critical in steam turbine bearing housings, where ambient temperatures can vary by 80°C between cold startup and full-load operation — a variation that would produce a 6–8% sensitivity error in an uncompensated sensor design.

System Integration Benefits

• Direct drop-in compatibility with existing 3300 XL installations: no recalibration of the proximitor or monitor channel is required when replacing a like-for-like 330180-91-CN unit, minimizing maintenance window duration.
• Deterministic signal latency: the eddy-current measurement principle introduces no mechanical hysteresis or contact friction, ensuring that the output voltage tracks shaft position with sub-millisecond fidelity — essential for accurate Keyphasor-referenced phase measurements.
• Full 3500 series monitor integration: the sensor’s output is directly compatible with 3500/40M and 3500/42M monitor cards, enabling full utilization of the monitor’s built-in gap alarm, direct vibration alarm, and 1X/2X vector processing without any signal conditioning modification.
• Hazardous area system compatibility: when paired with appropriate Zener barriers or galvanic isolators, the 330180-91-CN supports ATEX/IECEx Zone 1 installations, maintaining the intrinsic safety parameters required for gas-group IIC environments.
• Diagnostic transparency: the DC gap voltage output provides a continuous, real-time indication of probe-to-shaft clearance, enabling maintenance teams to detect shaft centerline migration, bearing wear, and thermal growth trends through trend logging in the 3500 monitor’s data acquisition system.
• Keyphasor reference capability: the sensor can be configured as a once-per-revolution phase reference trigger when mounted opposite a shaft notch or keyway, enabling synchronous sampling for 1X and 2X vibration vector analysis without a dedicated Keyphasor transducer.
• Multi-channel redundancy support: dual-sensor XY configurations using two 330180-91-CN units on orthogonal axes provide full orbital plot data, enabling the 3500 monitor to compute shaft centerline position and detect anisotropic bearing stiffness conditions that single-axis measurements cannot resolve.
• Long cable run capability: the 3300 XL system’s matched cable architecture supports total system lengths up to 9 m (sensor + extension cable), accommodating installations where the proximitor must be located outside the high-temperature bearing housing zone.

Quality Assurance & Global Logistics

Every BENTLY NEVADA 330180-91-CN unit supplied by siemensplc.com is sourced through verified supply channels and subjected to incoming inspection prior to dispatch. Inspection covers physical integrity of the sensor body and connector, label accuracy against the part number, and dimensional verification of the probe tip geometry. Units are stored in climate-controlled conditions to prevent moisture ingress into the connector interface — a common cause of sensitivity drift in field-returned sensors.

Packaging is anti-static, foam-lined, and moisture-barrier sealed, conforming to the handling requirements specified in the Bently Nevada installation manual. Each shipment includes a packing list with lot traceability data. Certificate of conformance documentation is available upon request for critical plant applications subject to quality management system audit requirements.

Logistics operations are based in Xiamen, China, with established export documentation workflows for DDP, DAP, and EXW Incoterms. Standard in-stock orders are dispatched within 1–3 business days. International freight is coordinated via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. Customs classification and HS code documentation are prepared for each shipment to minimize clearance delays at destination ports.
