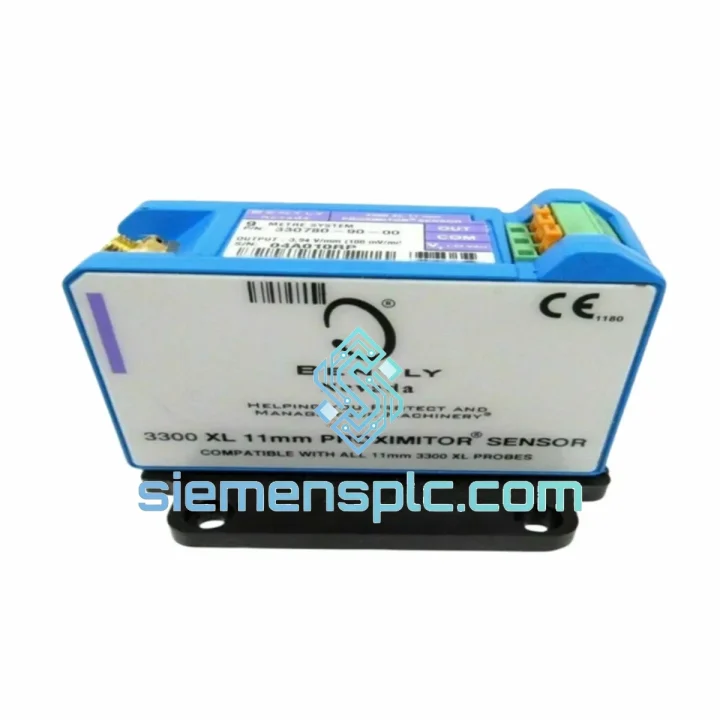

Bently Nevada 330180-X1-05 MOD-143416-42 Proximity Transducer – 3300 XL Series

Bently Nevada 330180-X1-05 MOD:143416-42 — Eddy-Current Proximity Transducer for Critical Rotating Machinery Protection

The 330180-X1-05 MOD:143416-42 is a factory-configured eddy-current proximity transducer within the Bently Nevada 3300 XL platform. It is designed for continuous, non-contacting measurement of shaft radial vibration, relative shaft position, and axial thrust displacement on turbomachinery and other critical rotating equipment. The MOD:143416-42 suffix denotes a specific factory modification to the base 330180-X1-05 configuration — typically governing connector termination style, integral cable length, or calibration target material — and must be matched precisely when replacing an existing transducer in a calibrated system.

This transducer operates as the sensing element in the standard Bently Nevada 3300 XL transducer chain: probe → extension cable (330130 series) → proximitor/oscillator → monitor rack (3500 or 3300 series). The proximitor drives the probe coil at a fixed oscillation frequency, typically 1.0 MHz. When a conductive target enters the probe’s electromagnetic field, eddy currents are induced in the target surface, loading the oscillator circuit and producing a gap-proportional DC output voltage. The 330180-X1-05 delivers a nominal scale factor of 7.87 V/mm (200 mV/mil), which is the standard 3300 XL system sensitivity and is directly compatible with all Bently Nevada 3500-series monitor input cards without additional signal conditioning.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Oscillator Circuit Stability and Gap Linearity
The 3300 XL probe coil is driven by a Colpitts-type LC oscillator integrated within the paired proximitor. The oscillator frequency is held at approximately 1.0 MHz by a temperature-compensated tank circuit. As the conductive target approaches the probe face, eddy-current losses increase, reducing oscillator amplitude. The proximitor’s demodulator converts this amplitude change to a DC voltage with a tightly controlled linear transfer function across the 0–2.0 mm gap range. The 330180-X1-05 probe geometry — 8 mm tip diameter, specific coil winding density, and ferrite core permeability — is matched to the 330180-series proximitor to achieve the 7.87 V/mm scale factor within ±0.5% across the full operating temperature range. This tight tolerance is critical for API 670 alarm and danger setpoint accuracy.

EMC Design and Shielding Architecture
The integral coaxial cable uses a double-braid shield construction with 95%+ optical coverage, terminated to the probe body ground at one end and floating at the proximitor end to prevent ground loop currents. The stainless steel armor jacket provides mechanical protection and an additional Faraday shield layer, attenuating radiated EMI from adjacent VFDs, switchgear, and high-current bus bars — common interference sources in turbomachinery enclosures. The probe body itself is constructed from 316 stainless steel, which is non-magnetic and does not perturb the eddy-current field, ensuring measurement integrity in magnetically noisy environments.

Thermal Compensation Mechanism
The 3300 XL system achieves its wide operating temperature range (–35 °C to +177 °C) through a combination of probe coil material selection (low-temperature-coefficient wire) and proximitor circuit compensation. The proximitor contains a thermistor network that adjusts oscillator bias current as a function of ambient temperature, counteracting the coil’s inherent inductance drift. The net result is a scale factor temperature coefficient of less than ±0.05 V/mm per 10 °C across the full range — a specification that allows the system to maintain alarm accuracy in steam turbine bearing housings where temperatures can cycle significantly during startup and shutdown transients.

Mechanical Mounting and Probe Body Integrity
The 330180-X1-05 uses an 8 mm diameter probe body with a standard M10 × 1.0 thread form (per 3300 XL mechanical interface specification). The probe tip face is recessed within a ceramic-filled epoxy potting compound that provides electrical isolation between the coil and the probe body ground, while maintaining dimensional stability under thermal cycling. The armored cable exits the probe body through a strain-relief fitting rated for repeated flexure, preventing cable fatigue failures at the probe-cable junction — a common failure mode in installations with high vibration levels at the mounting bracket.

System Integration Benefits

• Direct 3500-Series Rack Compatibility: The –VDC output signal from the 3300 XL proximitor is the native input format for all Bently Nevada 3500-series monitor cards (3500/22M, 3500/40M, 3500/42M, 3500/46M). No signal converter or intermediate conditioning module is required, eliminating an additional failure point in the protection loop.
• API 670 Compliance Out of the Box: The 330180-X1-05 / 330180-series proximitor system meets the transducer performance requirements of API 670 Fifth Edition, including scale factor accuracy, frequency response, and temperature range. This simplifies machinery protection system documentation for new installations and replacements in regulated facilities.
• Deterministic DC Output for Real-Time Protection: The DC-coupled output (0 Hz lower bound) captures both static position (gap) and dynamic vibration simultaneously on a single channel. This allows the 3500 rack to perform both radial position alarming and vibration amplitude alarming from one transducer, reducing channel count and wiring complexity.
• 10 kHz Bandwidth for Sub-Synchronous and Super-Synchronous Analysis: The –3 dB frequency response extending to 10,000 Hz captures vibration components up to the 10th harmonic of a 60,000 RPM machine, or sub-synchronous instability frequencies as low as DC. This bandwidth is sufficient for oil whirl, oil whip, and blade-pass frequency detection without additional signal processing hardware.
• Non-Contacting Operation Eliminates Wear-Related Drift: Unlike contact-type displacement sensors, the eddy-current probe has no mechanical interface with the rotating shaft. There is no wear, no lubrication requirement, and no contact-induced signal noise. Calibration stability over multi-year service intervals is achievable without periodic recalibration in stable temperature environments.
• IP67 Rating for Harsh Process Environments: The probe body and cable assembly are rated IP67, allowing installation in bearing housings exposed to oil mist, water ingress, and process fluid splash. This eliminates the need for additional environmental enclosures around the probe mounting hardware in most turbomachinery applications.
• Standardized System Cable Length Matching: The 3300 XL system uses a defined total cable length (probe integral cable + extension cable) to maintain calibration. The 5 ft (1.52 m) integral cable of the 330180-X1-05 is the standard length for most bearing housing installations, simplifying extension cable selection and reducing the risk of calibration errors from incorrect cable length combinations.
• Broad Target Material Compatibility with Correction Factors: While calibrated for AISI 4140 steel, the 330180-X1-05 can be used on titanium, Inconel, aluminum, and other conductive alloys by applying published material correction factors (Bently Nevada Application Note AN-013). This flexibility allows a single transducer model to serve across diverse rotating equipment types without requiring custom-calibrated probes for each target material.

Quality Assurance & Global Logistics

Every 330180-X1-05 MOD:143416-42 unit supplied by siemensplc.com is sourced from verified, traceable supply channels — authorized distributors and documented OEM surplus inventories. Prior to shipment, each unit undergoes a structured pre-shipment inspection protocol: visual examination of probe body, tip face, and connector for mechanical damage; cable continuity and shield integrity verification; part number and MOD code label authentication against OEM documentation; and dimensional check of the probe tip geometry against the 3300 XL mechanical interface specification.

Units are packaged in anti-static foam-lined boxes with silica gel desiccant packs to prevent moisture ingress during transit. The probe tip is protected with a fitted end cap. Original Bently Nevada part labels, date codes, and MOD code markings are photographed and retained on file for each shipment, providing a documentary chain of custody that supports counterfeit risk mitigation and incoming inspection at the customer’s facility.

Shipments originate from our warehouse in Xiamen, China. In-stock units are dispatched within 1–3 business days of order confirmation. International freight is handled via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–7 business days to North America, Europe, Southeast Asia, and the Middle East. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements. For time-critical plant shutdowns or emergency replacements, expedited same-day dispatch is available upon request.

All units are covered by a 12-month warranty from the date of shipment. Dead-on-arrival (DOA) units are replaced within 7 business days of confirmed return receipt. Warranty claims are processed through our technical support team, which can provide remote commissioning guidance and installation verification support to minimize downtime at the customer’s facility.
