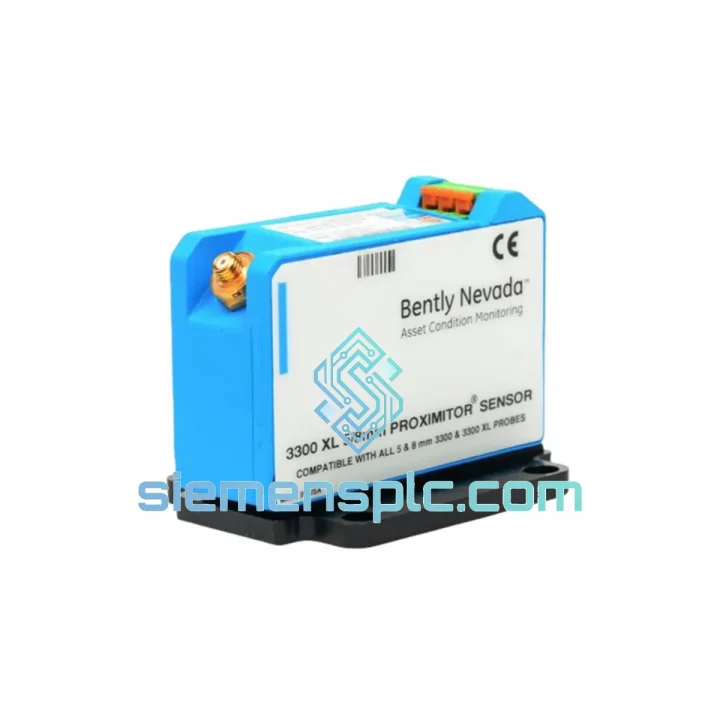

Bently Nevada 330180-X1-05 MOD 145193-01 Proximity Sensor – 3300 XL Series

Bently Nevada 330180-X1-05 MOD 145193-01 — Eddy-Current Proximity Sensor for Continuous Shaft Monitoring

The Bently Nevada 330180-X1-05 MOD 145193-01 is a non-contact eddy-current proximity transducer engineered for continuous, real-time measurement of radial shaft vibration, axial position, and differential expansion in critical rotating machinery. Operating as the primary sensing element within the 3300 XL Proximity Transducer System, this probe converts mechanical gap displacement into a proportional DC voltage signal with a nominal sensitivity of 7.87 V/mm (200 mV/mil), delivering the measurement fidelity required by API 670-compliant machinery protection architectures.

The MOD 145193-01 designation identifies a factory-defined cable and connector configuration variant, ensuring dimensional and electrical compatibility with specific installation envelopes — particularly relevant in turbomachinery housings where probe-to-driver cable routing is constrained by thermal insulation or structural geometry. Unlike generic proximity probes, the 330180 series is calibrated and characterized as a matched system: probe, extension cable, and Proximitor® driver are factory-paired to achieve the specified linear range and sensitivity tolerance of ±0.5% across the full operating temperature band.

This sensor is deployed across steam turbines, gas turbines, centrifugal compressors, boiler feed pumps, and large induction motors in oil and gas, power generation, petrochemical, and pulp-and-paper industries. Its measurement output feeds directly into Bently Nevada 3500 Series rack-based protection systems or third-party DCS/PLC analog input modules, enabling both machinery protection trip logic and condition monitoring trend analysis within a single signal chain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330180-X1-05 operates on the principle of electromagnetic induction: a high-frequency oscillator within the Proximitor® driver energizes a coil wound at the probe tip, generating an alternating magnetic field. When a conductive target (shaft surface) enters this field, eddy currents are induced in the target material, loading the oscillator circuit and producing a measurable impedance shift. The Proximitor® demodulates this impedance change into a DC voltage output linearly proportional to the probe-to-target gap distance.

Matched-System Calibration Architecture: The 330180 probe is not a standalone device. Its calibration curve is derived from the complete probe-cable-driver assembly. The MOD 145193-01 cable variant has a defined characteristic impedance and capacitance per unit length; substituting a non-matched cable introduces gain error that can exceed 5% at the extremes of the linear range — sufficient to cause false alarm or missed trip conditions in a 3500 Series protection rack. This matched-system discipline is a deliberate design constraint that enforces measurement traceability at the system level.

EMC and Noise Immunity: The coaxial cable construction of the 330180 extension cable provides inherent shielding against capacitively coupled interference. The Proximitor® driver’s differential output stage further rejects common-mode noise introduced by ground potential differences between the probe mounting point and the signal conditioning rack — a critical consideration in large turbomachinery installations where structural ground loops can introduce millivolt-level offsets that corrupt slow-roll compensation vectors.

Thermal Stability: The probe body is constructed from 316 stainless steel with a ceramic-filled epoxy potting compound that maintains dimensional stability across the full –35°C to +121°C operating range. Thermal expansion of the probe tip assembly is characterized and compensated in the factory calibration, ensuring that the sensitivity coefficient remains within ±0.5% across the rated temperature band without field recalibration.

Target Material Compensation: Eddy-current sensitivity is a function of target electrical conductivity and magnetic permeability. The 330180 is factory-calibrated against AISI 4140 steel (the API 670 reference material). For shafts machined from 17-4 PH stainless, Inconel 718, or titanium alloys, a material correction factor must be applied to the Proximitor® gain setting. Bently Nevada publishes correction factor tables for common turbomachinery shaft alloys, and the 3500 Series rack supports per-channel scale factor adjustment to accommodate this without hardware modification.

System Integration Benefits

• Direct 3500 Series Rack Compatibility: The 330180-X1-05 output signal is within the –2 VDC to –18 VDC input range accepted by all 3500 Series monitor cards (3500/40M, 3500/42M, 3500/45, 3500/46M), enabling plug-and-play replacement without rack reconfiguration or signal conditioning adapters.
• API 670 Fifth Edition Compliance: The matched probe-cable-driver system meets the measurement uncertainty requirements of API 670 for radial vibration and axial position monitoring, satisfying insurance and regulatory requirements for critical machinery in refinery and power plant applications.
• Deterministic Frequency Response: The flat frequency response from DC to 10,000 Hz ensures that both synchronous (1X, 2X) and sub-synchronous vibration components are captured without phase distortion, preserving the integrity of vector-based balancing and orbit analysis performed in System 1 software.
• Slow-Roll Compensation Support: The DC-coupled output allows the 3500 rack to capture slow-roll runout vectors at shaft speeds below 600 RPM, enabling accurate compensation of mechanical and electrical runout before the machine reaches operating speed — a requirement for turbines with significant bow or eccentricity.
• Dual-Use Signal Path: A single 330180 probe output can be split to feed both the 3500 protection rack (for trip/alarm logic) and a condition monitoring system (for trend and spectrum analysis) via a buffered output on the 3500 monitor card, eliminating the need for duplicate probe installations in space-constrained bearing housings.
• Diagnostic Transparency via OK Circuit: The Proximitor® driver includes an OK circuit that monitors probe gap and cable continuity. If the gap falls outside the linear range or the cable is open/shorted, the OK relay de-energizes, driving the 3500 rack into a defined fault state and generating a diagnostic alarm — distinguishing sensor faults from actual machinery events without manual inspection.
• Minimal Installation Footprint: The 8 mm probe body diameter allows installation in bearing housings with limited radial clearance, and the armored cable construction of the MOD 145193-01 variant provides mechanical protection in environments with high vibration, oil mist, or thermal cycling without requiring additional conduit.
• Long-Term Measurement Stability: The non-contact measurement principle eliminates wear mechanisms that degrade contact-type sensors over time. Field experience across turbomachinery fleets documents stable sensitivity coefficients over multi-year continuous operation intervals, reducing calibration frequency and associated maintenance downtime.

Quality Assurance & Global Logistics

Every Bently Nevada 330180-X1-05 MOD 145193-01 unit supplied by siemensplc.com is sourced through verified industrial procurement channels with full part number and date code traceability. Prior to dispatch, each unit undergoes physical label verification, connector and cable sheath inspection, and cross-referencing of the MOD code against Bently Nevada’s published product configuration database. Units are packed in anti-static, shock-resistant packaging with a sealed inspection record enclosed.

Logistics operations are based in Xiamen, China — a major international port city with direct freight connections to DHL, FedEx, UPS, and SF Express international networks. Standard in-stock orders ship within 1–3 business days. Express delivery to the US, EU, Middle East, and Southeast Asia typically achieves 3–5 business day transit times. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment. Customs HS code 8543.70 applies to proximity transducer assemblies; our logistics team prepares accurate export declarations to minimize customs clearance delays at destination ports.

A 12-month warranty covers all units against manufacturing defects and specification non-conformance from the date of shipment. Dead-on-arrival units are replaced at no cost with priority re-shipment. Volume orders of 3 or more units qualify for preferential pricing — contact us directly for a formal quotation.
