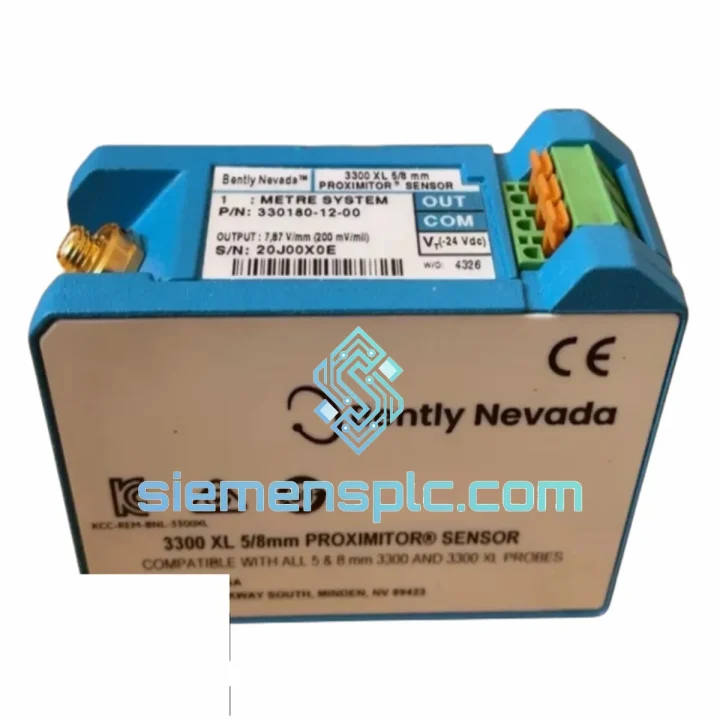

Bently Nevada 330180-X1-05 MOD145004-02 Proximitor Sensor

Bently Nevada 330180-X1-05 MOD145004-02 — Stop the Clock on Your Downtime

Your turbine is offline. The control room is calling. Every hour of unplanned shutdown on a critical rotating machine — compressor, steam turbine, boiler feed pump — translates directly into lost production revenue, emergency maintenance premiums, and pressure from operations management that doesn’t let up. The root cause: a failed Proximitor sensor that nobody had on the shelf.

The Bently Nevada 330180-X1-05 MOD145004-02 is a field-mount eddy-current signal conditioner from the 3300 XL Proximitor Series — the backbone of API 670-compliant machinery protection systems across oil & gas, power generation, and petrochemical plants worldwide. We stock it. We ship it fast. From Xiamen, China, via DHL or FedEx Express, your replacement unit can be on-site within 48–72 hours to most destinations globally.

This is not a catalog listing. This is a ready-to-ship part backed by a team of engineers who understand what it means when your protection system goes blind.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery protection systems, here are the failure modes and replacement pitfalls that catch engineers off guard with the 330180-X1-05 MOD145004-02:

Most Common Failure Modes:

• DC output drift / gap voltage out of range: The most frequent symptom. If your 3500 monitor is throwing a Not OK (NOK) status with no mechanical change on the shaft, suspect the Proximitor first. Measure the DC output voltage at the monitor input terminals. A healthy 3300 XL Proximitor should read approximately –10 VDC at the nominal gap (typically 1.0–1.5 mm for 5mm probes). Readings outside –2 VDC to –18 VDC indicate a failed conditioner or probe system fault.
• Intermittent NOK alarms under vibration: Loose connector seating at the Proximitor junction box is a chronic issue in high-vibration environments. Before condemning the unit, reseat all connectors and inspect the coaxial cable terminations for fretting corrosion. If the alarm clears under static conditions but returns under load, the Proximitor housing or internal PCB has developed a vibration-sensitive solder joint — replace the unit.
• Thermal cycling damage: Units mounted near exhaust casings or in poorly ventilated enclosures accumulate thermal stress over time. Inspect the housing for discoloration or deformation. Internal capacitor degradation from heat cycling causes slow output voltage drift that is easy to misdiagnose as a probe gap change.
• Moisture ingress at cable entry: Even IP-rated housings fail when cable glands are not properly torqued or when the cable jacket is cracked. Moisture on the coaxial cable shield introduces a parallel resistance path that shifts the output voltage and triggers false alarms.

Replacement Procedure — Key Configuration Points:

• Probe-cable-Proximitor system matching: The 3300 XL system is calibrated as a matched set. The Proximitor, extension cable, and probe must be from the same sensitivity family (7.87 V/mm or 200 mV/mil). Mixing sensitivities from different series will produce a calibration error that the 3500 monitor cannot self-correct. Verify the sensitivity label on all three components before installation.
• Gap re-establishment: After swapping the Proximitor, do not assume the gap is unchanged. Physically verify the probe gap with a feeler gauge or by measuring the DC output voltage against the calibration curve in the Bently Nevada datasheet. The nominal gap for most radial vibration applications is 1.0–1.5 mm (5mm probe) or 1.5–2.0 mm (8mm probe).
• 3500 Monitor channel reset: After replacing the Proximitor, navigate to the 3500 rack front panel or System 1 software and perform a channel reset on the affected slot. Some firmware versions latch the NOK status and will not clear automatically even after the hardware fault is resolved.
• No DIP switches on this model: Unlike some older Proximitor generations, the 330180-X1-05 MOD145004-02 does not have user-configurable DIP switches for sensitivity or gap range. Configuration is fixed at manufacture. Ensure the replacement unit matches the original part number exactly — including the MOD suffix — to guarantee identical calibration characteristics.
• Firmware compatibility: If your 3500 rack is running firmware older than Rev. 3.x, verify compatibility with the MOD145004-02 revision. Bently Nevada has issued compatibility matrices for MOD-suffix variants. Contact us and we can provide the relevant technical bulletin.
• Bypass the channel during replacement: On a live protection system, always use the 3500 monitor’s bypass function (front panel or software) before disconnecting the Proximitor. Removing a live Proximitor without bypass will trigger a trip on most API 670 voting logic configurations (2oo3 or 1oo2).

Reliability in Harsh Conditions

The 3300 XL Proximitor platform was not designed for a clean instrument room. It was designed for the turbine deck — where ambient temperatures swing from sub-zero winter startups to 70°C+ near exhaust flanges, where the floor vibrates at 25–50 Hz continuously, and where humidity condenses on every surface during seasonal transitions.

The 330180-X1-05 MOD145004-02 housing is constructed to withstand continuous mechanical vibration per IEC 60068-2-6 test profiles, with internal PCB conformal coating that resists condensation and airborne contaminants including hydrocarbon vapors common in compressor halls. The coaxial connector interface uses a locking collar design that maintains electrical continuity under the micro-movements induced by structural vibration — a failure point that plagues generic proximity sensor alternatives.

Thermal performance is validated across the full –40°C to +85°C operating range, covering arctic pipeline installations through tropical refinery environments. The internal signal conditioning circuitry maintains output linearity within specification across this entire range, which is critical for protection systems where a 0.1 mm gap measurement error can mean the difference between a valid alarm and a missed trip.

Units sourced through our network undergo visual inspection for housing integrity, connector condition, and label legibility. Surplus units are function-tested where test equipment is available. Certified refurbished units include a full inspection report. We do not ship units with physical damage, corroded connectors, or illegible part markings — because in a protection system, traceability is not optional.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian, China — a major international freight gateway with direct DHL and FedEx Express service to over 220 countries and territories. Here is how the process works from the moment you confirm your order:

• Day 0 — Order Confirmation: Payment confirmed before 14:00 CST triggers same-day picking and packaging. The unit is inspected, photographed, and packed in ESD-safe anti-static foam within a double-wall carton.
• Day 1 — Export Clearance & Handover: Commercial invoice, packing list, and HS code documentation (HS 9031.80 for proximity sensors) are prepared and submitted. The shipment is handed to DHL Express or FedEx International Priority at the Xiamen hub.
• Day 2–3 — In Transit: DHL Express typically achieves delivery to Western Europe, the Middle East, and Southeast Asia within 2–3 business days from Xiamen. North America (US/Canada) is typically 3–4 business days. Remote destinations may require 4–5 business days.
• Real-Time Tracking: A tracking number is provided within 4 hours of handover. You can monitor shipment status directly on the DHL or FedEx portal. We proactively notify you of any customs holds or delays.
• Import Duties: We declare accurate commercial values and provide correct HS codes to minimize customs clearance delays. For destinations with import duty concerns, contact us — we can advise on documentation requirements for your country.
• Emergency Same-Day Dispatch: For confirmed critical shutdowns, contact us via WhatsApp before 11:00 CST. We will prioritize your order for same-day handover to the courier.

Contact Information

Ready to place an order or need a technical consultation before purchasing? Reach our engineering team directly:

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com

Response time: within 2 hours during business hours (08:00–18:00 CST, Monday–Saturday). Urgent shutdown inquiries via WhatsApp are monitored outside business hours.
