Bently Nevada 330190-080-01-00 Extension Cable – 3300 XL

Bently Nevada 330190-080-01-00: 8-Meter Extension Cable in the 3300 XL Proximity Transducer Signal Chain

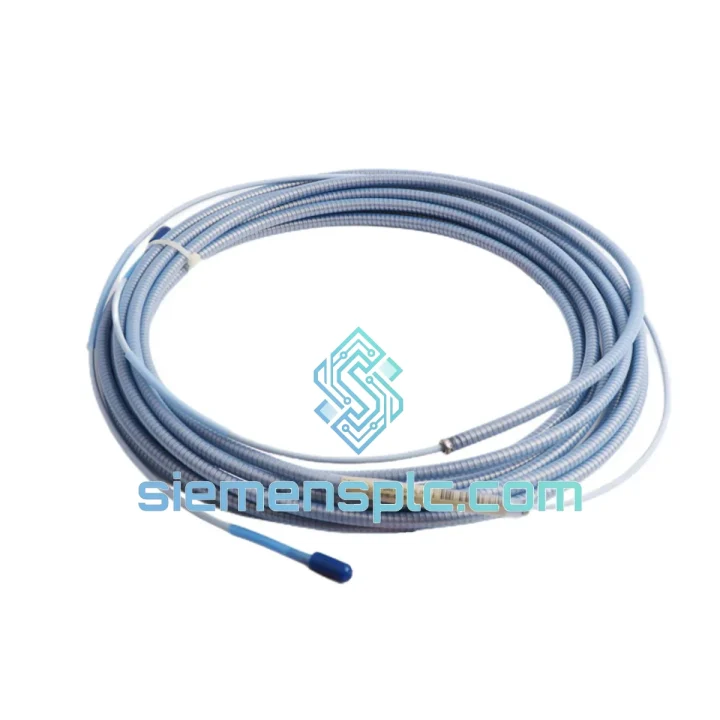

The Bently Nevada 330190-080-01-00 is an 8.0-meter coaxial extension cable purpose-engineered for the 3300 XL Proximity Transducer System. Its function within the measurement loop is precise: it bridges the physical gap between the eddy-current probe cable termination and the proximitor/oscillator input, extending the signal path without introducing impedance discontinuities or measurable attenuation that would corrupt the gap voltage–displacement relationship. In rotating machinery protection systems governed by API 670, this cable is not a passive accessory — it is a calibrated component whose electrical characteristics are factored into the system’s scale factor at the factory.

The 3300 XL architecture operates on a driver frequency in the range of 1.0 MHz, where even minor impedance mismatches along the coaxial path produce standing-wave reflections that shift the apparent gap voltage. Bently Nevada addresses this by specifying matched impedance across the probe, extension cable, and proximitor as a validated set. The 330190-080-01-00 is manufactured to the impedance profile of the 3300 XL system — nominally 50 Ω — with a dielectric and shield geometry that maintains this characteristic across the full operating temperature envelope of −40 °C to +85 °C.

In turbomachinery installations — steam turbines, centrifugal compressors, boiler feed pumps, and large motor-driven trains — the proximitor is typically mounted in a junction box at a distance from the bearing housing. The probe cable, limited to a fixed length by the probe model, cannot always span this distance. The 330190-080-01-00 provides the additional 8 meters required to complete the circuit without field splicing, which would introduce connector-to-connector impedance steps and potential ingress points for moisture and contamination.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The signal carried through the 330190-080-01-00 is a high-frequency, low-amplitude analog voltage — the demodulated output of the eddy-current driver circuit — riding on a DC bias established by the proximitor. At 1.0 MHz driver frequency, the skin effect concentrates current flow at the conductor surface, making shield continuity and dielectric consistency the dominant variables in signal integrity. Bently Nevada’s double-shield construction — an inner braid over the dielectric and an outer foil layer — provides two distinct attenuation mechanisms: the inner braid handles low-frequency magnetic field coupling, while the outer foil presents a near-continuous barrier to high-frequency electric field ingress.

The PTFE dielectric used in the 330190-080-01-00 has a dielectric constant (εr) of approximately 2.1, which is stable across the full temperature range. This stability is critical: a temperature-dependent dielectric constant would shift the cable’s propagation velocity and alter the effective electrical length, introducing a temperature-correlated measurement offset that would be indistinguishable from actual shaft movement at the monitor level. PTFE eliminates this error source by maintaining εr within ±0.02 from −40 °C to +85 °C.

The stainless-steel armor layer serves a mechanical rather than electrical function: it protects the cable jacket from abrasion, crush loads from cable trays, and rodent damage in outdoor installations. In turbine halls where maintenance traffic is heavy and cable routing passes through structural penetrations, the armor prevents the jacket deformation that would alter the cable’s cross-sectional geometry and, consequently, its impedance profile. The MIL-spec connectors at both ends are crimped and soldered to the shield braid, not merely clamped — this ensures the shield termination resistance remains below 5 mΩ across the connector lifecycle, preventing ground loop currents from modulating the signal reference.

EMC performance of the 330190-080-01-00 is validated at the system level against the 3300 XL proximitor, not in isolation. This distinction matters in variable-frequency drive (VFD) environments, where common-mode noise on the order of 50–200 V at switching frequencies of 2–20 kHz can couple into unshielded or poorly terminated cables. The double-shield architecture, combined with the proximitor’s differential input stage, provides common-mode rejection sufficient to maintain measurement accuracy within API 670 alarm setpoint tolerances even in high-VFD-density installations.

System Integration Benefits

• Factory-Matched Scale Factor Preservation: The 330190-080-01-00 is included in the Bently Nevada system calibration matrix. Using this cable eliminates the need for field recalibration of the gap voltage–displacement curve, saving 2–4 engineering hours per measurement point during commissioning.
• API 670 Compliance Without Field Adjustment: The cable’s electrical characteristics are within the tolerances assumed by the 3300 XL system’s API 670 compliance documentation. Substituting non-OEM cables may require re-characterization to maintain compliance, which is not always feasible during outage windows.
• Deterministic Signal Latency: The fixed propagation velocity of the PTFE dielectric ensures that the signal delay through the extension cable is constant and predictable, supporting the 3500 monitor’s real-time alarm processing without introducing variable latency that could affect trip response time.
• Hazardous Area Loop Integrity: The cable’s impedance and capacitance parameters are within the entity parameters of approved intrinsically safe barriers for Zone 1 / Division 1 installations, allowing it to be used in certified IS loops without requiring individual cable certification.
• Reduced Diagnostic Ambiguity: When a measurement anomaly occurs, using OEM cables eliminates the cable as a variable. Maintenance engineers can focus diagnostics on the probe, proximitor, and monitor rather than investigating cable-related artifacts.
• Thermal Cycling Stability: The PTFE jacket and stainless armor maintain dimensional stability through repeated thermal cycles from cold startup to full operating temperature, preventing the connector loosening and jacket cracking that can develop in inferior cables after 12–18 months of service.
• Full Material Traceability: Each cable ships with Bently Nevada’s original part markings, date codes, and certificate of conformance. This documentation satisfies incoming inspection requirements at ISO 9001-certified facilities and supports insurance auditor reviews.
• Compatibility Across 3500 Monitor Variants: The 330190-080-01-00 is validated for use with the 3500/40M, 3500/42M, 3500/45, and 3500/46M monitors, covering radial vibration, axial position, and differential expansion measurement channels without requiring different cable part numbers per channel type.

Quality Assurance & Global Logistics

Each Bently Nevada 330190-080-01-00 unit stocked at our Xiamen, China facility is sourced through verified supply channels and undergoes a multi-point incoming inspection before entering inventory. Physical inspection covers connector condition, jacket integrity, armor continuity, and label authenticity against Bently Nevada’s current part marking standards. Units with any evidence of remarking, repackaging, or connector rework are rejected and quarantined.

Storage conditions at our Xiamen warehouse maintain temperature between 15 °C and 25 °C with relative humidity below 60%, preventing connector oxidation and PTFE jacket surface degradation. Cables are stored horizontally on padded racks with minimum bend radius maintained to prevent permanent set in the coaxial geometry.

Dispatch from Xiamen to global destinations is executed via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–5 business days to Europe, 4–6 days to North America, and 2–3 days to Southeast Asia. For plant shutdown scenarios requiring same-day or next-flight dispatch, priority logistics arrangements are available upon direct contact. Export documentation — commercial invoice, packing list, certificate of origin, and certificate of conformance — is prepared for each shipment to facilitate customs clearance at the destination port.

All units carry a 12-month warranty from the date of shipment against manufacturing defects. Warranty claims are processed with replacement dispatch within 5 business days of defect confirmation, minimizing plant exposure during the resolution period.
