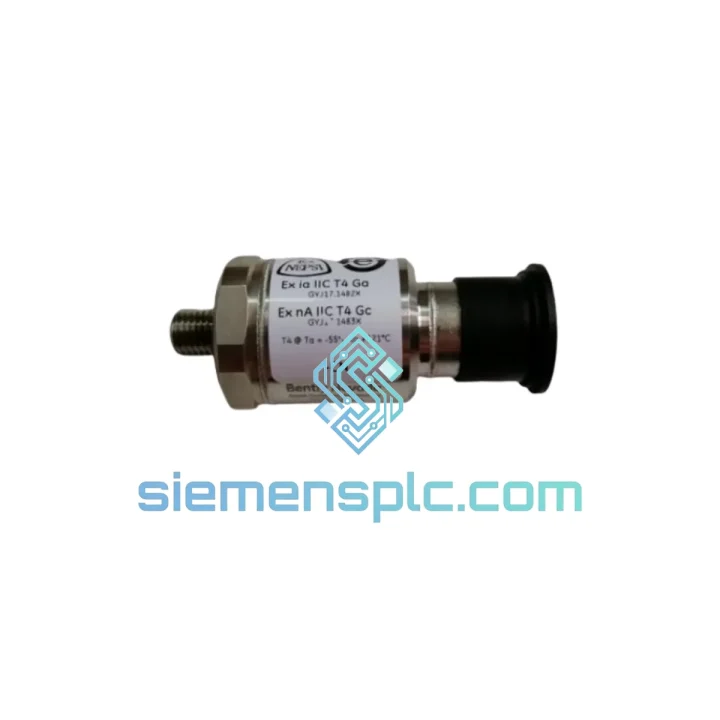

Bently Nevada 330400-02-00 Vibration Transducer – 3300 XL Series

Bently Nevada 330400-02-00 — Acceleration Transducer in the 3300 XL Condition Monitoring Architecture

The Bently Nevada 330400-02-00 is a piezoelectric acceleration transducer engineered for continuous vibration surveillance of rotating machinery in critical industrial environments. Operating within the 3300 XL Series ecosystem, this unit converts mechanical acceleration into a proportional analog voltage signal, providing the upstream monitor with the raw data required for bearing fault detection, imbalance trending, and structural resonance analysis. Its role in the control loop is not passive — it is the primary sensing node whose output fidelity directly determines the accuracy of every downstream protection decision made by the 3500 Series rack.

Unlike proximity-based eddy-current transducers that measure relative shaft displacement, the 330400-02-00 measures absolute casing vibration in the frequency domain from 2 Hz to 10,000 Hz. This wide bandwidth makes it suitable for capturing both low-frequency rotor imbalance events and high-frequency bearing defect frequencies (BPFO, BPFI, BSF) that typically manifest above 1 kHz. The nominal sensitivity of 100 mV/g provides a linear, low-noise output across the full operating temperature range of −55 °C to +121 °C, making it deployable in both arctic upstream oil and gas installations and high-ambient petrochemical process environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330400-02-00 employs a shear-mode piezoelectric sensing element — a design choice with measurable engineering rationale. Shear-mode crystals are mechanically decoupled from the base of the housing, which eliminates base-strain sensitivity: a common error source in compression-mode designs where thermal gradients or mounting torque variations introduce spurious low-frequency noise into the signal chain. In high-temperature process environments where pipe flanges and machinery casings undergo thermal cycling, this isolation is not a marginal improvement — it is a prerequisite for measurement integrity.

The internal signal conditioning circuit operates on IEPE (Integrated Electronics Piezo-Electric) architecture. A low-noise JFET input stage converts the high-impedance charge output of the piezo element into a low-impedance voltage signal suitable for transmission over standard coaxial cable runs up to 300 meters without signal degradation. The two-wire constant-current excitation topology eliminates the need for a separate power cable, simplifying field wiring and reducing the number of cable penetrations through hazardous area barriers.

EMC performance is addressed at the hardware level through the hermetically welded 316L stainless steel housing, which functions as a Faraday shield across the full operating frequency band. The MIL-C-5015 connector incorporates a metal backshell that maintains shield continuity at the cable termination point — a detail that matters in variable-speed drive (VSD) environments where switching frequencies from 2 kHz to 20 kHz can couple into unshielded sensor cables and corrupt bearing defect frequency data. The internal ground isolation between the sensing element and the housing further suppresses ground loop currents that would otherwise appear as 50/60 Hz interference in the output spectrum.

Resonant frequency is specified at ≥ 25 kHz, providing a usable measurement bandwidth to 10 kHz with a minimum decade of separation from the mechanical resonance peak. This margin prevents the resonance amplification region from contaminating the measurement band, which is a failure mode observed in lower-grade accelerometers where the resonant frequency falls below 15 kHz and creates false high-amplitude readings in the 8–12 kHz range — a frequency band that overlaps with gear mesh frequencies in high-speed gearboxes.

System Integration Benefits

• Direct 3500 Series Monitor Compatibility: The 330400-02-00 interfaces natively with the Bently Nevada 3500/42M Proximitor/Seismic Monitor and 3500/45 Position Monitor without signal conditioning adapters, preserving the deterministic latency of the protection loop from sensor to relay output.
• Deterministic Frequency Domain Coverage: The 2 Hz–10 kHz bandwidth covers the complete spectrum of rotating machinery fault signatures — from 0.5× sub-synchronous instability at low frequencies to high-order bearing defect harmonics at the upper band — within a single sensor, eliminating the need for parallel sensor arrays on standard machinery trains.
• Reduced Wiring Infrastructure: IEPE two-wire architecture allows the use of standard instrumentation cable (RG-58 or equivalent) rather than multi-conductor shielded cable, reducing installation material cost and simplifying cable routing through conduit systems in existing plant infrastructure.
• Hazardous Area Deployment: ATEX-compatible configurations support Zone 1 and Zone 2 installation when paired with an approved intrinsic safety barrier (e.g., MTL 787S or equivalent), enabling deployment on rotating equipment inside classified areas without requiring explosion-proof conduit systems.
• Thermal Stability Across Process Extremes: The −55 °C to +121 °C operating range accommodates both cryogenic LNG compressor applications and high-temperature steam turbine bearing housings within a single part number, reducing spare parts inventory complexity for multi-process facilities.
• Diagnostic Transparency via System 1: When integrated with Bently Nevada System 1 condition monitoring software, the 330400-02-00 output feeds directly into automated spectral analysis algorithms, enabling trend-based alarm setpoint management and reducing nuisance trips caused by static threshold configurations.
• Hermetic Seal Integrity for Washdown Environments: IP67-rated hermetic welding of the housing eliminates moisture ingress failure modes common in epoxy-potted sensors, maintaining calibration stability in paper mill, food processing, and offshore platform environments where high-pressure washdown is routine.
• Stud-Mount Mechanical Coupling: Stud mounting provides a rigid mechanical interface with a flat frequency response to the sensor’s specified upper limit. Compared to adhesive or magnetic mounting methods, stud mounting eliminates the mechanical low-pass filter effect introduced by compliant coupling layers, preserving high-frequency bearing defect data above 5 kHz.
