Bently Nevada 330400-02-05 Proximity Transducer – 3300 XL Series

Bently Nevada 330400-02-05 Proximitor Sensor — Signal Conditioning Core of the 3300 XL Eddy-Current Transducer Chain

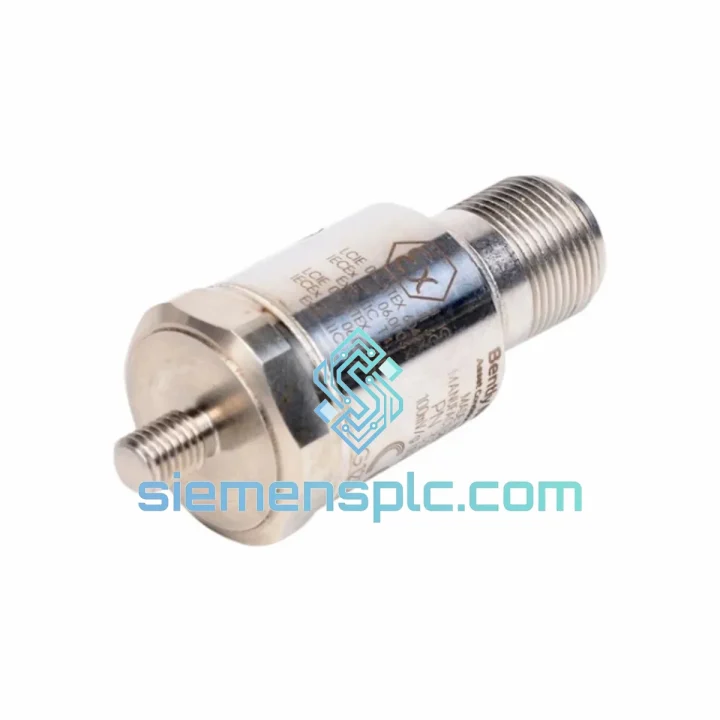

The Bently Nevada 330400-02-05 is the Proximitor® sensor module within the 3300 XL Series eddy-current transducer system. Its primary function in a machinery protection control loop is to demodulate the high-frequency RF carrier signal returned by the 8 mm proximity probe, apply internal temperature compensation, and deliver a calibrated DC voltage output that is linearly proportional to the physical gap between the probe tip and the observed target surface. This DC output is the measurement signal consumed by vibration monitors, PLC analog input cards, and DCS field I/O modules for alarm evaluation, trip logic, and long-term trending.

The -05 suffix designates a 5-metre integral pigtail cable between the Proximitor® body and the extension cable connector. This cable length is a fixed factory parameter; substituting suffix variants without verifying installation routing will introduce calibration offset errors. The module is factory-calibrated for use exclusively with Bently Nevada 3300 XL 8 mm probe series and the corresponding 3300 XL extension cable family. Pairing with third-party probes invalidates the scale factor and is not acceptable for API 670-governed machinery protection applications.

In the control loop architecture, the 330400-02-05 sits between the field probe and the monitoring rack. It receives a −24 VDC supply (operating range −18 VDC to −26 VDC) from the monitor or a dedicated power supply, drives the probe oscillator circuit through the extension cable, and returns a DC voltage in the range of approximately −2 VDC to −18 VDC depending on gap. The scale factor of 7.87 V/mm (200 mV/mil) is the calibration constant that translates voltage change into displacement engineering units within the monitor’s configuration. Any deviation from this constant — caused by incorrect Proximitor® type, probe mismatch, or cable length error — propagates directly into alarm and trip setpoint accuracy.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330400-02-05 implements a three-stage signal processing chain within its stainless-steel enclosure. The first stage is the oscillator driver: the Proximitor® sources a high-frequency AC current (nominally 1 MHz range) through the coaxial cable to the probe coil. The probe coil generates an electromagnetic field; when a conductive target enters this field, eddy currents are induced in the target surface, loading the probe coil and reducing the oscillator’s effective Q-factor. This loading is a function of gap distance — smaller gap, greater eddy-current density, greater loading.

The second stage is the demodulator. The Proximitor® extracts the amplitude-modulated envelope of the oscillator signal, converting the gap-dependent loading variation into a slowly varying DC level. This demodulation is performed by a precision rectifier and low-pass filter network whose cutoff frequency determines the upper end of the usable measurement bandwidth (10 kHz at −3 dB). The filter design is a deliberate trade-off: sufficient bandwidth to capture sub-synchronous instabilities, oil-whirl events, and high-order harmonic vibration components, while rejecting RF interference above the measurement band.

The third stage is temperature compensation. Eddy-current sensitivity is a function of target material resistivity, which varies with temperature. The 330400-02-05 incorporates an internal thermistor network that applies a correction voltage to the demodulator output, maintaining scale factor accuracy across the −35 °C to +85 °C operating envelope. This is critical for installations in steam turbine bearing pedestals or compressor casings where ambient temperatures fluctuate significantly between cold-start and full-load conditions.

EMC performance is achieved through the coaxial cable architecture itself: the shield of the integral pigtail and extension cable provides a continuous Faraday enclosure from the probe tip to the Proximitor® body, attenuating capacitively coupled interference from adjacent power cables, variable-frequency drives, and high-voltage bus bars. The stainless-steel housing provides additional shielding at the Proximitor® body. The result is a measurement chain with high immunity to conducted and radiated EMI without requiring external filtering at the monitor input.

System Integration Benefits

• Direct analog interface compatibility: The −2 VDC to −18 VDC output range is within the input specification of standard ±10 V analog input cards on Siemens S7, Allen-Bradley ControlLogix, ABB AC800M, and Emerson DeltaV platforms, enabling direct integration without signal conditioning interposers.
• Deterministic latency: The analog output path introduces no protocol stack delay. Signal propagation from gap change to voltage change at the monitor input is governed only by the 10 kHz bandwidth filter — approximately 100 µs group delay — making the measurement suitable for high-speed trip logic with sub-millisecond response requirements.
• API 670 alarm/trip setpoint integrity: The ±1% full-scale linearity specification ensures that a 25 µm (1 mil) gap change produces a voltage change of 7.87 mV ± 0.08 mV, preserving the accuracy of alarm and danger setpoints defined in the machinery protection philosophy document.
• Diagnostic transparency via DC bias monitoring: The quiescent DC output voltage at a known gap serves as a continuous health indicator. A shift in the bias voltage without a corresponding change in vibration amplitude indicates probe contamination, cable damage, or connector degradation — detectable by the monitor’s OK relay circuit without interrupting measurement.
• Broad frequency coverage for multi-fault detection: The DC-to-10 kHz bandwidth in a single channel captures slow-roll runout (sub-1 Hz), 1× and 2× synchronous vibration, sub-synchronous instabilities (oil whirl at 0.43–0.48×), and blade-pass frequencies up to the bandwidth limit, reducing the number of measurement channels required per bearing.
• Backward compatibility with installed 3300 XL infrastructure: The 330400-02-05 is a direct replacement for earlier 3300 XL Proximitor® variants without requiring re-calibration of the monitor rack, provided the probe and extension cable are also 3300 XL series. This minimizes planned maintenance downtime during module replacement.
• Non-contact measurement eliminates mechanical loading: Unlike contact-type displacement sensors, the eddy-current principle imposes zero mechanical load on the rotating shaft. There is no wear mechanism, no lubrication requirement, and no risk of sensor-induced rotor excitation, making the 330400-02-05 suitable for continuous 24/7 operation on critical-service machines with no scheduled replacement interval based on operating hours.
• Hazardous area compatibility pathway: The 3300 XL system is available in intrinsically safe configurations for Zone 1/Zone 2 (ATEX/IECEx) installations. The 330400-02-05 can be deployed in conjunction with approved Zener barriers or galvanic isolators to meet Ex ia IIC T4 requirements for installations in flammable gas environments such as offshore platforms and onshore gas processing facilities.

Quality Assurance & Global Logistics

Every Bently Nevada 330400-02-05 unit dispatched from our Xiamen, China facility is a genuine factory-original component sourced through verified industrial supply channels with full part-number and label traceability against Bently Nevada factory markings. Incoming inspection covers visual examination of the housing and connector, coaxial cable continuity and shield integrity check, and label verification against the Bently Nevada part numbering convention. Units with evidence of rework, re-marking, or connector damage are rejected at intake.

A 12-month warranty from the date of shipment covers manufacturing defects and functional failure under normal operating conditions. Certificate of Conformance (CoC) documentation is available upon request for procurement teams requiring documented traceability for critical-service applications.

Logistics are handled from Xiamen, China, with access to DHL Express, FedEx International Priority, and EMS international parcel services. Standard in-stock orders are processed and dispatched within 1–3 business days. Export documentation — commercial invoice, packing list, and HS code classification (9031.80) — is prepared for each shipment to facilitate customs clearance in destination countries. Expedited shipping options with next-flight-out capability are available for emergency maintenance situations; contact us directly to arrange.
